55
Adapter Mounting Instructions
for New Holland Combines
PREPARING THE ADAPTER

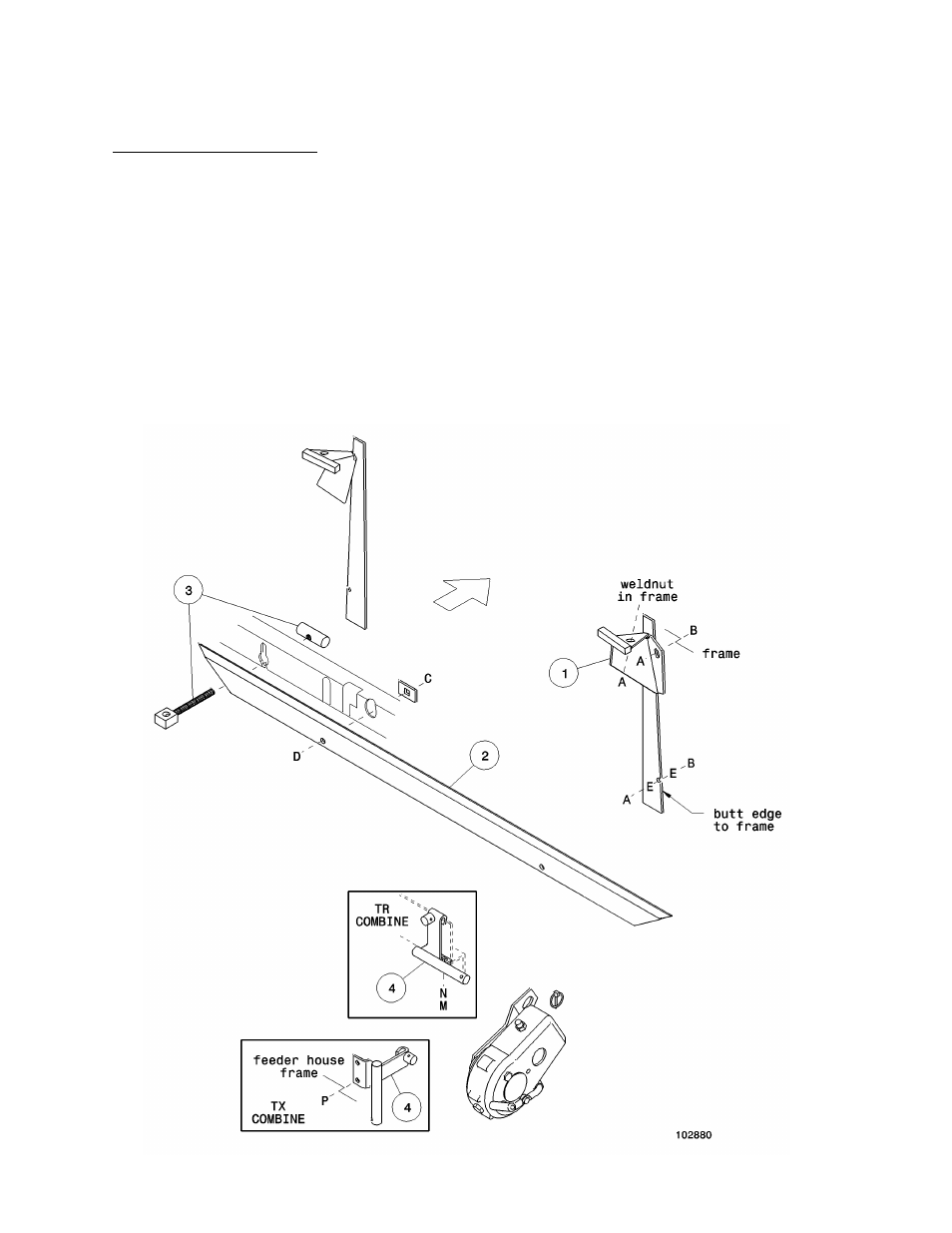

1. Install feeder house guide (1) (from adapter
package) onto the adapter frame with hardware
shown. Repeat at other side.
2. Install lower feeder house beam (2) with
hardware shown. Position bolts against the
bottom of the slots in frame.
3. Install lower latch eyebolt assemblies (3) in
adapter frame.
4. Attach gearbox support (4) to combine feeder
house as shown.
NOTE: Orientation of support depends on
combine model.
A BOLT - flange head, 1/2 NC x 1 inch
B NUT - smooth flange, 1/2 NC distorted thread
C BOLT - round hd, square nk, 5/8 NC x 1-1/2"
D NUT - lock, 5/8 NC distorted thread
E WASHER - flat 21/32 inch I.D.
M SETSCREW – 3/8 NC x 1 ¼ inch
N NUT – hex jam, 3/8 NC
P BOLT – flange head, 3/8 NC x 1 inch
