MacDon 871 Combine Adapter User Manual
Page 56
56
Adapter Mounting Instructions
for New Holland Combines
PREPARING THE ADAPTER
5. Position feed auger in the forward position as
follows:
New Holland TR Combine:
Use upper holes in frame plate.
New Holland TX Combine:
Use lower holes in frame plate.
To adjust: auger position:
a. Loosen bolt (E), both sides.
b. Remove bolt (F), both sides, and swing auger
to desired position.
c. Replace and tighten hardware.
PREPARING THE COMBINE
1. For TR86, TR87, TR88 and all TX model combines, check with Combine dealer to ensure combine is
equipped with tire size, rear ballast etc. to carry larger headers.
2. For TR model combines, if equipped with variable speed header drive, set header drive speed to 580 RPM.
3. IMPORTANT: On TR and TX combines, to prevent damage to feeder house and/or feed auger and draper,
remove dust shields, auger stripper bars, and closure strips from front of feeder house.
4. Attach gearbox support (item 4 on previous page) to feeder house with hardware shown. Note proper
orientation for TR or TX combine.

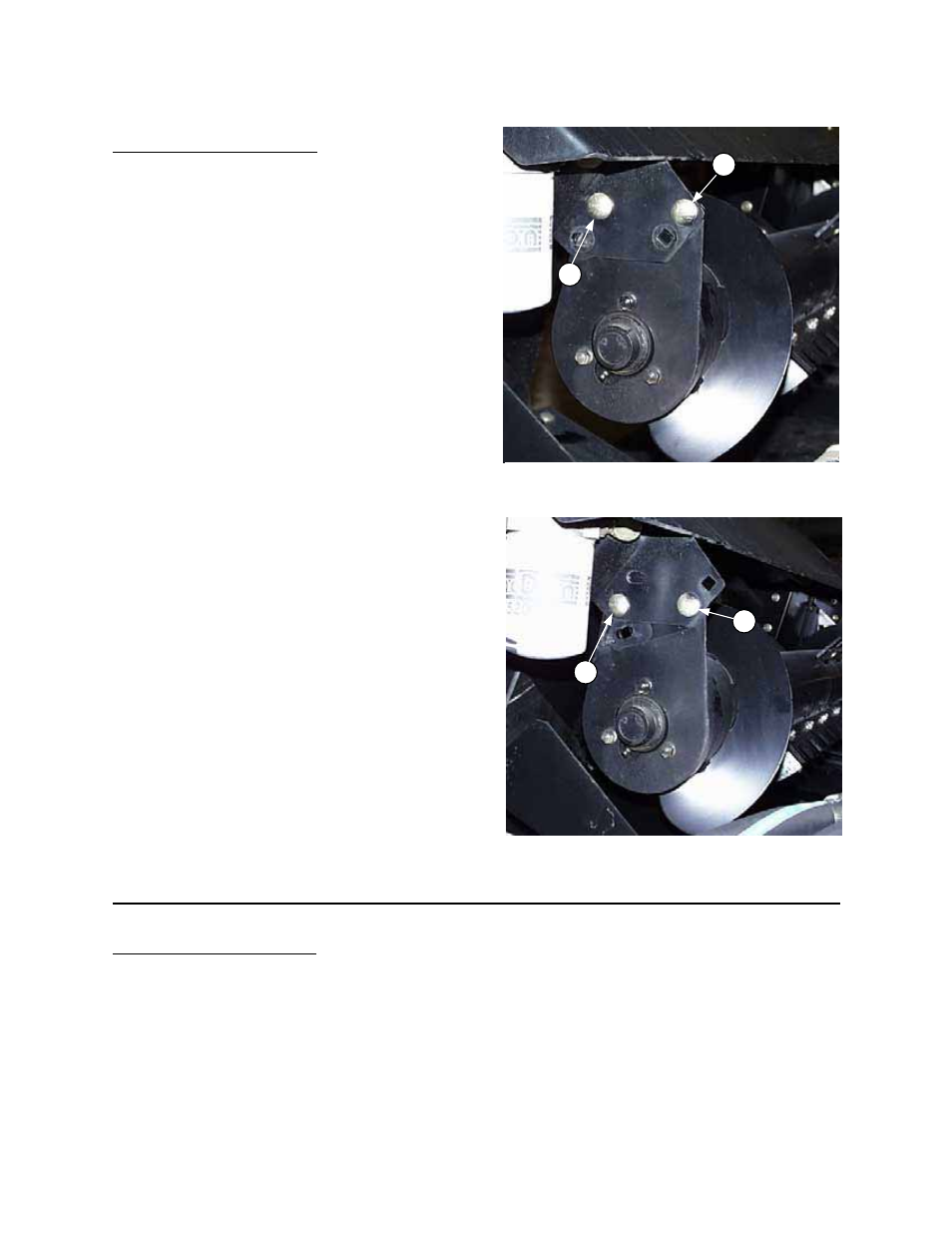

NEW HOLLAND TR - FEED AUGER FORWARD
(TOP HOLES IN FRAME PLATE)
F
E
NEW HOLLAND TX - FEED AUGER FORWARD
(LOWER HOLES IN FRAME PLATE)
E
F
