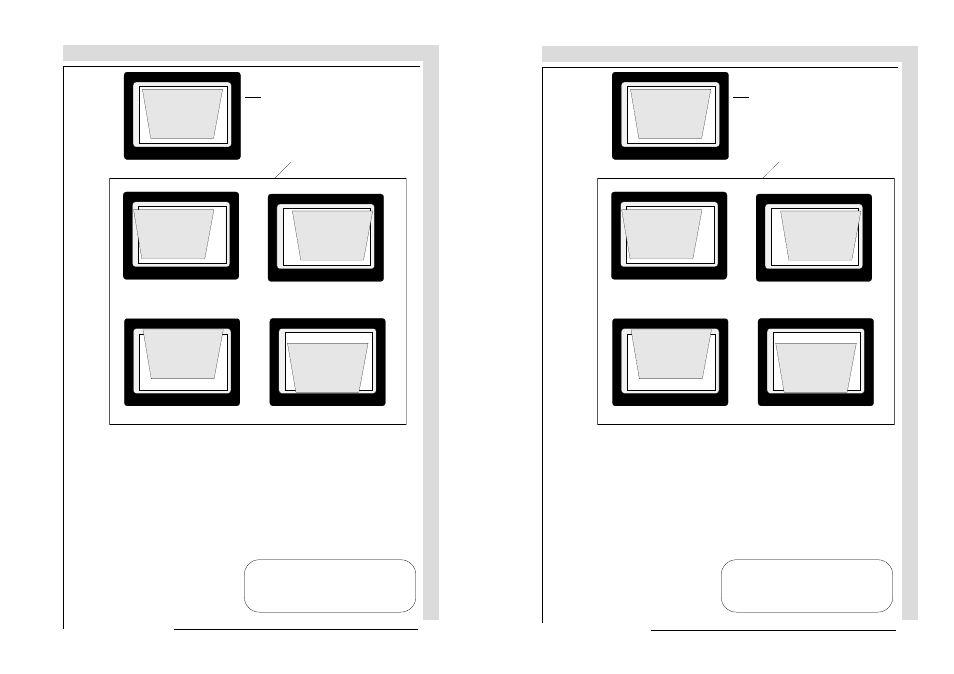

Press ENTER to activate the raster on
the Red CRT faceplate.
Shift the raster with the control disc
until the raster is centered in the middle
of the CRT faceplate.
Press ENTER to activate the raster on
the Blue CRT faceplate.
Shift the blue raster with the control
disc until the raster is centered on the
CRT faceplate.
Press ENTER to continue with the CRT
projection angle adjustment
ENTER continues to CRT Projection
angle Adjustment.
EXIT returns to Optical focusing.
ADJUST returns to operational mode.
Press ENTER to activate the raster on
the Red CRT faceplate.
Shift the raster with the control disc
until the raster is centered in the middle
of the CRT faceplate.
Press ENTER to activate the raster on
the Blue CRT faceplate.
Shift the blue raster with the control
disc until the raster is centered on the
CRT faceplate.
Press ENTER to continue with the CRT
projection angle adjustment
ENTER continues to CRT Projection
angle Adjustment.
EXIT returns to Optical focusing.
ADJUST returns to operational mode.
