INSTALLATION SET UP

4-6

INSTALLATION

SET

4-6

INSTALLATION

SET

5975069A BARCOVISION 708 200498

A : Horizontal scan inversion

Three connectors are used, one for each horizontal deflection coil. When changing

the horizontal scan, insure that all three connectors are set in the same position. See

position of the connectors for the corresponding projector configuration.

B : Vertical scan inversion

Three connectors are used, one for each vertical deflection coil. When changing the

vertical scan, insure that all three connectors are set in the same position. See position

of the connectors for the corresponding projector configuration.

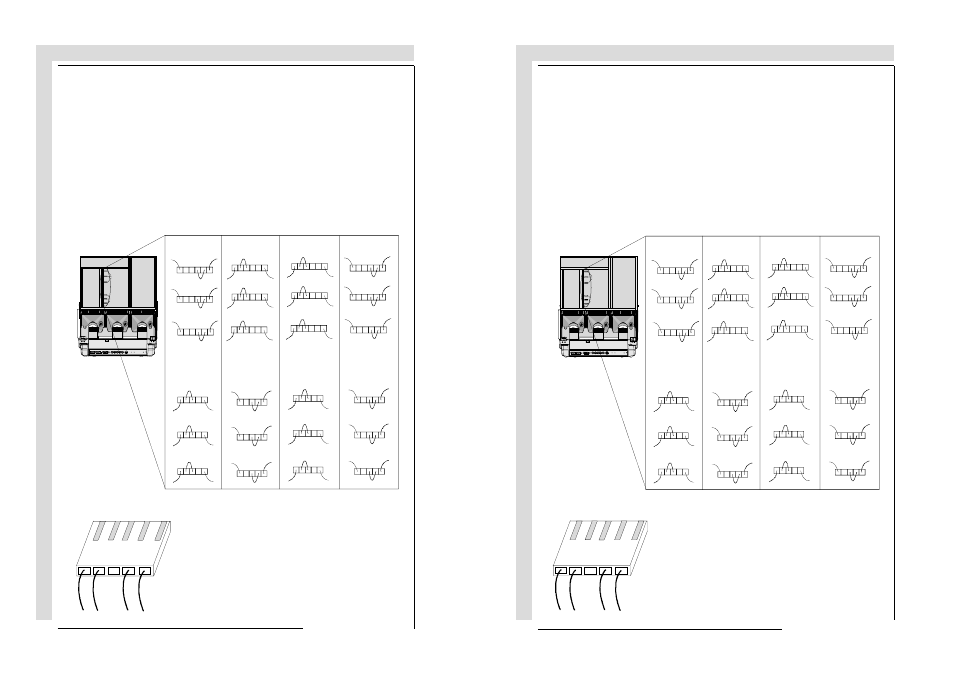

Top view of the connectors; upper three connectors for horizontal scan inversion,

lower three for vertical scan inversion.

C : Convergence connectors

Three connectors are used. The position of these connec-

tors has to be changed when switching from one configu-

ration to another.

With an open chassis, for a front-table or a rear ceiling

configuration, the connectors must be plugged in with the

contacts upwards (away from the tubes). For a front-

ceiling or rear-table configuration, the connectors must

be plugged in with the contacts facing the tubes
