INSTALLATION ADJUSTMENTS INSTALLATION ADJUSTMENTS
7-8
INSTALLATION
ADJUSTMENTS
7-8
INSTALLATION
ADJUSTMENTS
5975069A BARCOVISION 708 200498 5975069A BARCOVISION 708 200498
Scheimpfug adjustment
The scheimpfug correction can be adjusted separately for the three tubes within 3
ranges:
range 1 : 1.4 m (55") to 1.9 m (75"), optimum screen width 1.4 m (55")
range 2 : 1.9 m (75") to 3.2 m (126"), optimum screen width 2.4 m (94")
range 3 : 3.2 m (126") to 6 m (236"), optimum screen width 4 m (157")
A correct scheimpfug setting gives the possibility to focus the lenses for a sharp
image in all screen areas.
To change the setting from one range to another, some mechanical actions have to
done.

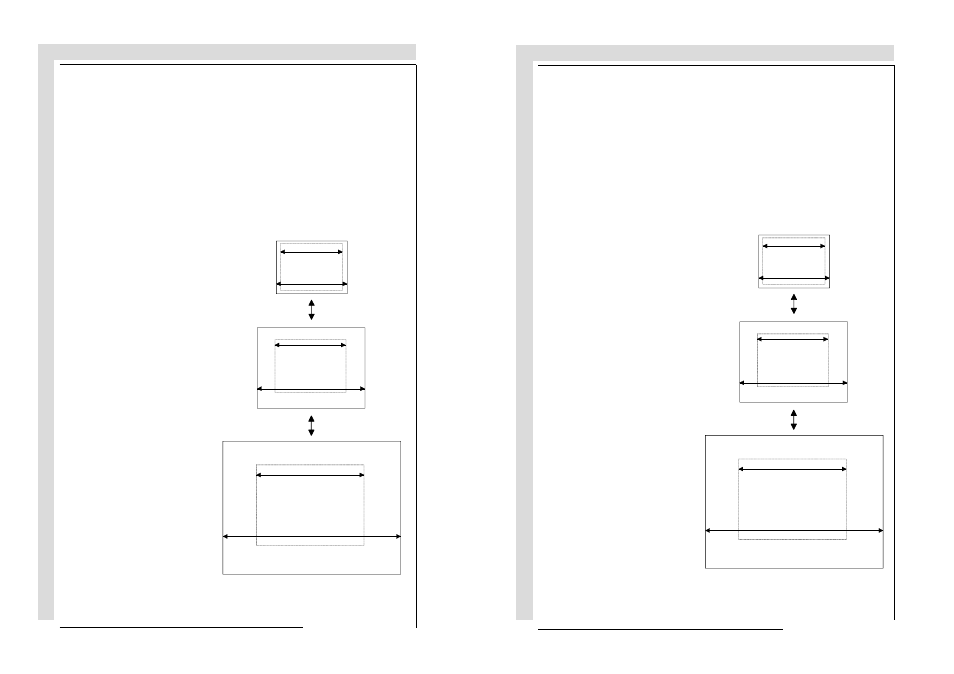

range 1
min. SW : 1.40 m (55")
max. SW : 1.90 m (75")
range 2
min. SW : 1.90 m (75")
max. SW : 3.20 m (126")
range 3
min. SW : 3.20 m (126")
max. SW : 6.00 m (236")
Scheimpfug adjustment
The scheimpfug correction can be adjusted separately for the three tubes within 3
ranges:
range 1 : 1.4 m (55") to 1.9 m (75"), optimum screen width 1.4 m (55")
range 2 : 1.9 m (75") to 3.2 m (126"), optimum screen width 2.4 m (94")
range 3 : 3.2 m (126") to 6 m (236"), optimum screen width 4 m (157")
A correct scheimpfug setting gives the possibility to focus the lenses for a sharp
image in all screen areas.
To change the setting from one range to another, some mechanical actions have to
done.
range 1
min. SW : 1.40 m (55")
max. SW : 1.90 m (75")
range 2
min. SW : 1.90 m (75")
max. SW : 3.20 m (126")
range 3
min. SW : 3.20 m (126")
max. SW : 6.00 m (236")
