INSTALLATION SET UP INSTALLATION SET UP
4-3
INSTALLATION
SET
UP
4-3
INSTALLATION
SET
UP
5975069A BARCOVISION 708 200498 5975069A BARCOVISION 708 200498

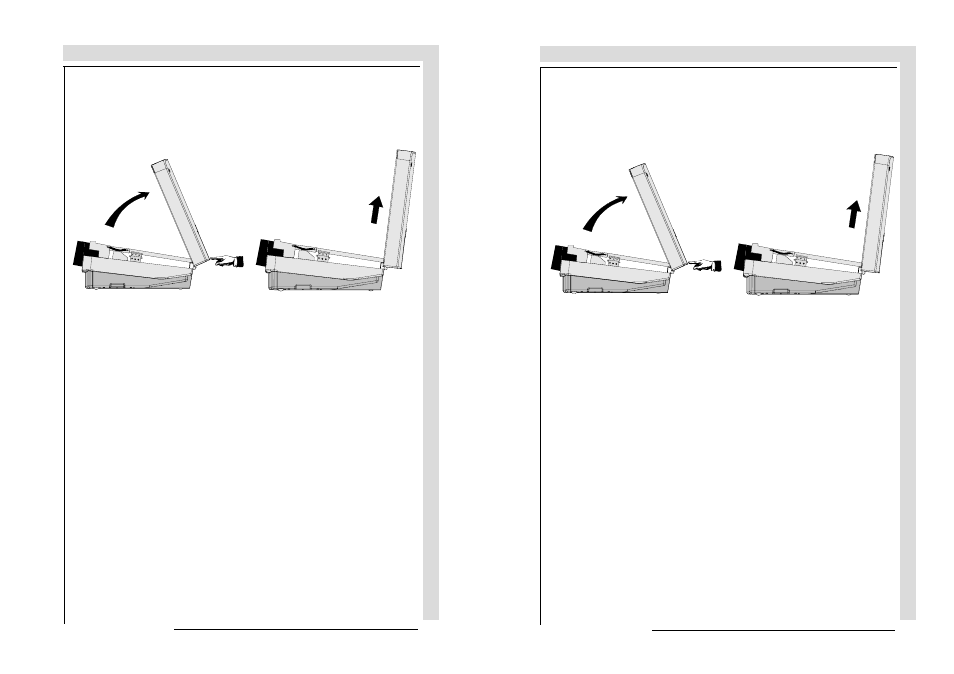

During some installations it will become handy to remove the top cover totally.
Therefore,
- pivot the top cover ± 60°
- push the top cover to the front side of the projector until it jumps out of its hinges.
Turn the top cover till 90° and lift it up.
Reinstall the cover :
Hook the top cover into the cabinet hinges. Pivot the top cover 30° and pull it
backwards until it fits in the hinges. Close the cover and secure the lock screws by
turning clockwise with a screwdriver or coin.
During some installations it will become handy to remove the top cover totally.
Therefore,
- pivot the top cover ± 60°
- push the top cover to the front side of the projector until it jumps out of its hinges.
Turn the top cover till 90° and lift it up.
Reinstall the cover :
Hook the top cover into the cabinet hinges. Pivot the top cover 30° and pull it
backwards until it fits in the hinges. Close the cover and secure the lock screws by
turning clockwise with a screwdriver or coin.
