Barco R9002327 - Manual (Page 23)

INSTALLATION SET UP INSTALLATION SET UP
4-4
INSTALLATION
SET
UP
4-4
INSTALLATION
SET
UP
5975069A BARCOVISION 708 200498 5975069A BARCOVISION 708 200498

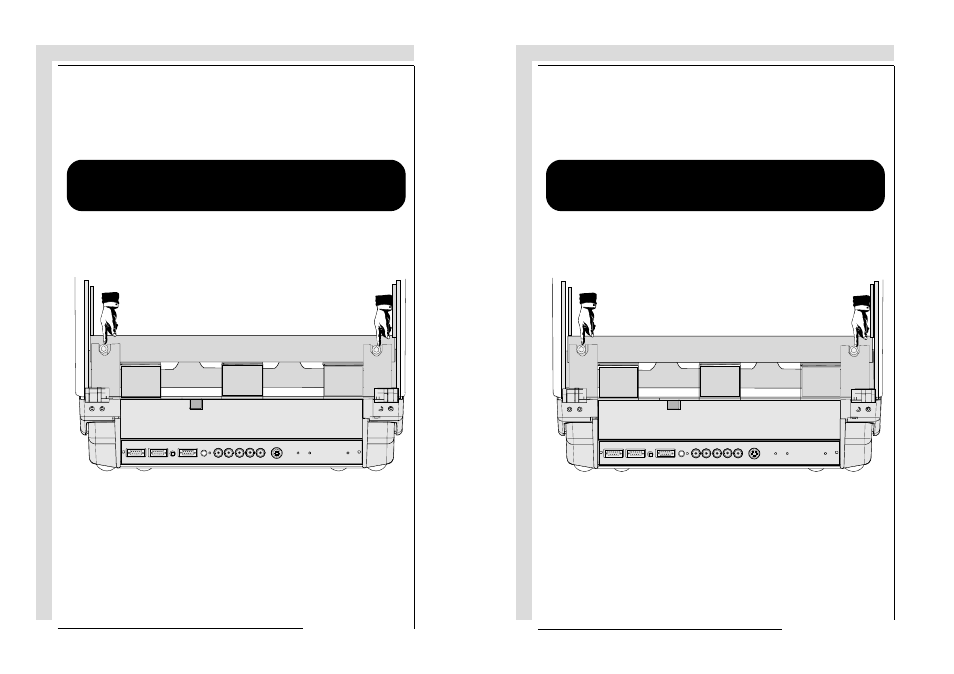

Scan adaptation
The scanning can be switch by turning the Horizontal and Vertical scan connectors
and the convergence connectors.
To change the scanning, it is necessary to open the projector top cover and to rotate
the chassis.
For opening the projector's top cover, see Getting access to controls.
WARNING
TURN OFF PROJECTOR AND UNPLUG THE POWER CORD BEFORE
CHANGING THE SCAN DIRECTION.
Turn the chassis to the front of the projector until it grips in its locks.
Getting access to the scan connectors and the convergence connectors.
- Open the top cover and to remove it, see Getting access to controls.
- To open the chassis, loosen both indicated retaining screws
Scan adaptation
The scanning can be switched by turning the Horizontal and Vertical scan connectors
and the convergence connectors.
To change the scanning, it is necessary to open the projector top cover and to rotate
the chassis.
For opening the projector's top cover, see Getting access to controls.
WARNING
TURN OFF PROJECTOR AND UNPLUG THE POWER CORD BEFORE
CHANGING THE SCAN DIRECTION.
Turn the chassis to the front of the projector until it grips in its locks.
Getting access to the scan connectors and the convergence connectors.
- Open the top cover and to remove it, see Getting access to controls.
- To open the chassis, loosen both indicated retaining screws
COMM PORT
(800 peripherals) REMOTE R G(S) B S VIDEO S-VIDEO RS232 OUT RS232 IN COMM PORT
(800 peripherals) REMOTE R G(S) B S VIDEO S-VIDEO RS232 OUT RS232 IN
