PAGE 42 — MAYCO MG-30 PUMP — OPERATION AND PARTS MANUAL — REV. #3 (09/15/11)
MG-30 PUMP — REMOTE OPERATION
REMOTE PUMP OPERATION
The remote operation of the pump is identical to the manual
operation of the pump, except that the pump can be controlled
by a
25-100 ft. cable.
The following steps outline the procedure for operating the pump
remotely.
1. Following the steps as outlined in the " Hose Connections "
and " Starting the Engine ".
2. Place the pump control switch (Figure 41) on the control
panel in the center position (no pumping).
3. Plug the remote cable (Figure 42) into the remote
receptacle on the control panel. Tighten securely.
4. Place the pump control switch on the control panel (Figure 42) in
the
up position (remote pumping).

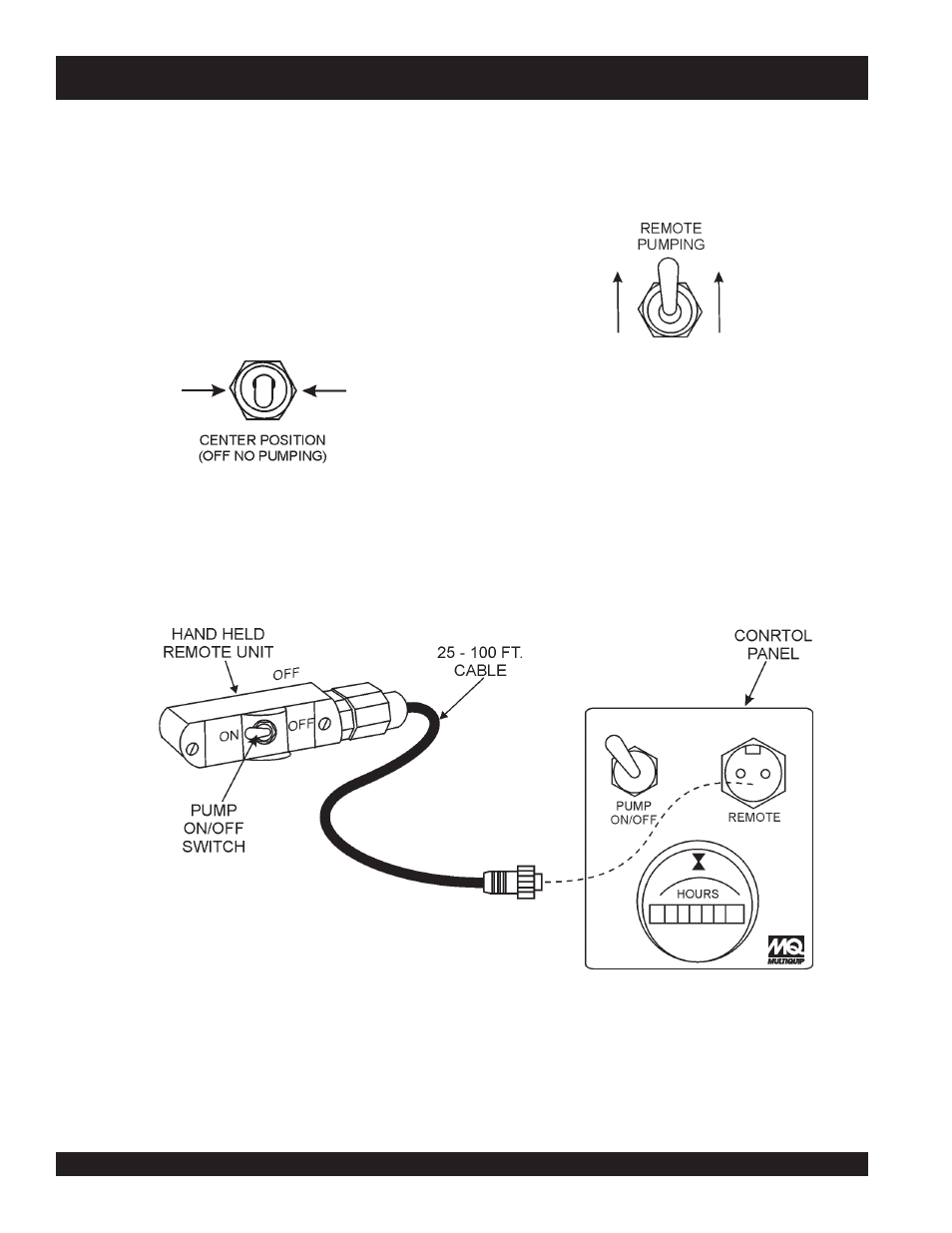

Figure 41. Pumping Switch (No Pumping)
5. To begin pumping remotely, place the pumping control
switch (Figure 43) on the hand held remote unit to the ON
position.
6. To stop pumping remotely, place the pumping control switch
(Figure 43) on the hand held remote unit to the OFF
position.
Figure 42. Pumping Control Switch
Up Position (Remote Pumping)
Figure 43. Hand Held Remote Cable Configuration
