MAYCO MG-30 PUMP — OPERATION AND PARTS MANUAL — REV. #3 (09/15/11) — PAGE 31
MG-30 PUMP — HATZ 35 HP ENGINE COMPONENTS
INITIAL SERVICING
The pump's engine (Figure 13) must be checked for proper
lubrication and filled with fuel prior to operation. Refer to the
manufacturers Engine manual for instructions & details of operation
and servicing.
1. Muffler – Used to reduce noise and emissions. NEVER
touch the muffler while it is hot! Serious burns can result.
NEVER operate the engine with the muffler removed.
2. Dip Stick – Remove dipstick to determine if the engine oil
level is low. If low add oil as specified in Table 8, page 37.
3. Speed Control Lever – This lever is connected to the
throttle control which is located on the side of the engine
compartment cover. Use this lever to control engine speed.
4. Oil Filter – Prevents dirt and other debris from entering the
engine. Service the oil filter as recommended in the
maintenance section of this manual.
5. Side Oil Drain Plug – Remove this plug to drain engine
oil from the engine crankcase. For best results drain engine
oil when oil is warm.
6. Air Filter/Cover – Prevents dirt and other debris from
entering the fuel system. Release the latches on the side of
the air filter cover to gain access to filter element.
7. Starter/Solenoid – This engine uses a 12 VDC , 2.7kW
(3.7 HP) starter motor with solenoid.
8. Front Oil Drain Plug – Remove this plug to drain engine
oil from the engine crankcase. For best results drain engine
oil when oil is warm.
9. V-Belt Cover – Remove this cover to gain access to the V-
belt. When replacing V-belt , use only recommended type
V-belt.

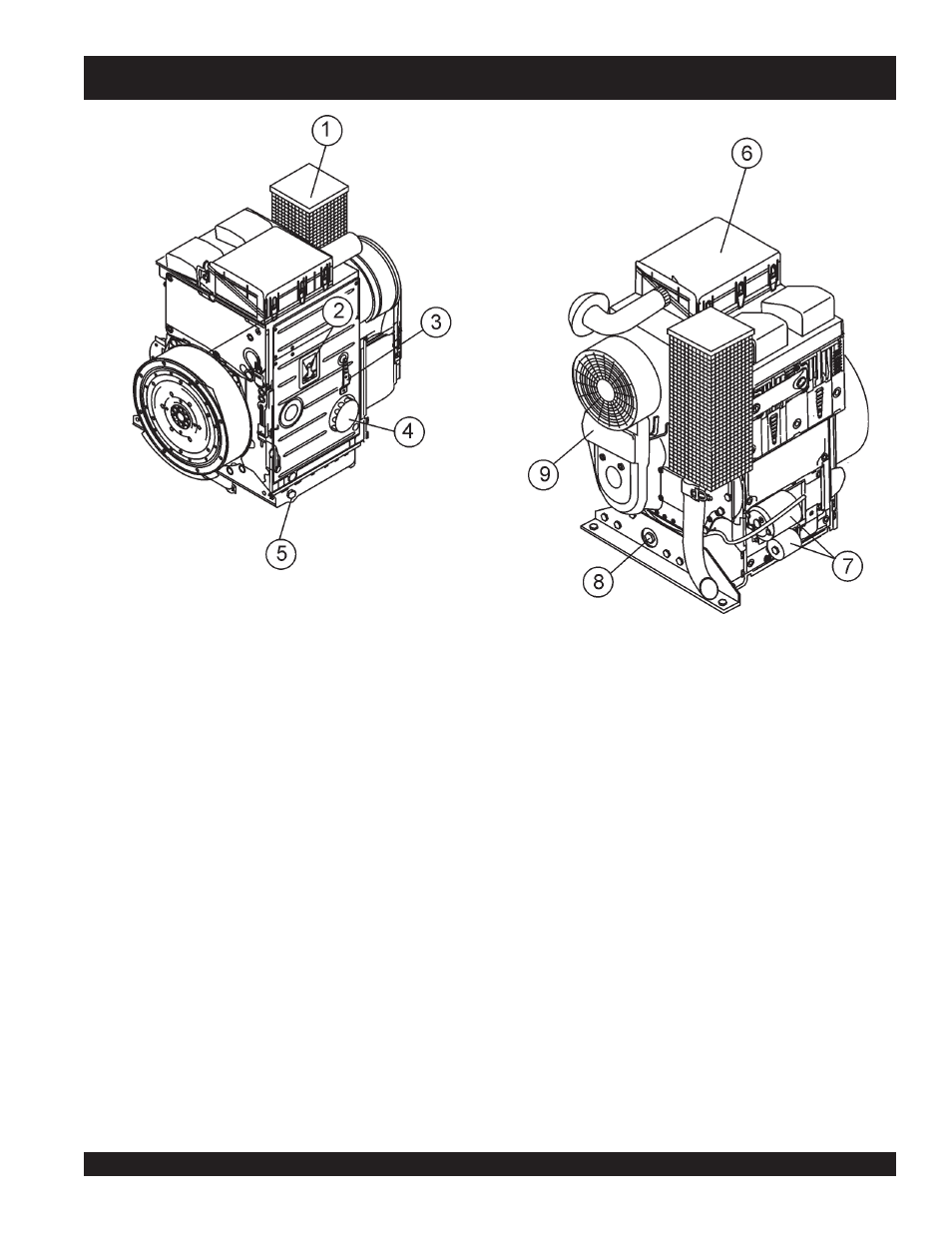

Figure 13. Hatz Model 2M41LZ 35 HP Diesel Engine
