PAGE 102 — MAYCO MG-30 PUMP — OPERATION AND PARTS MANUAL — REV. #3 (09/15/11)

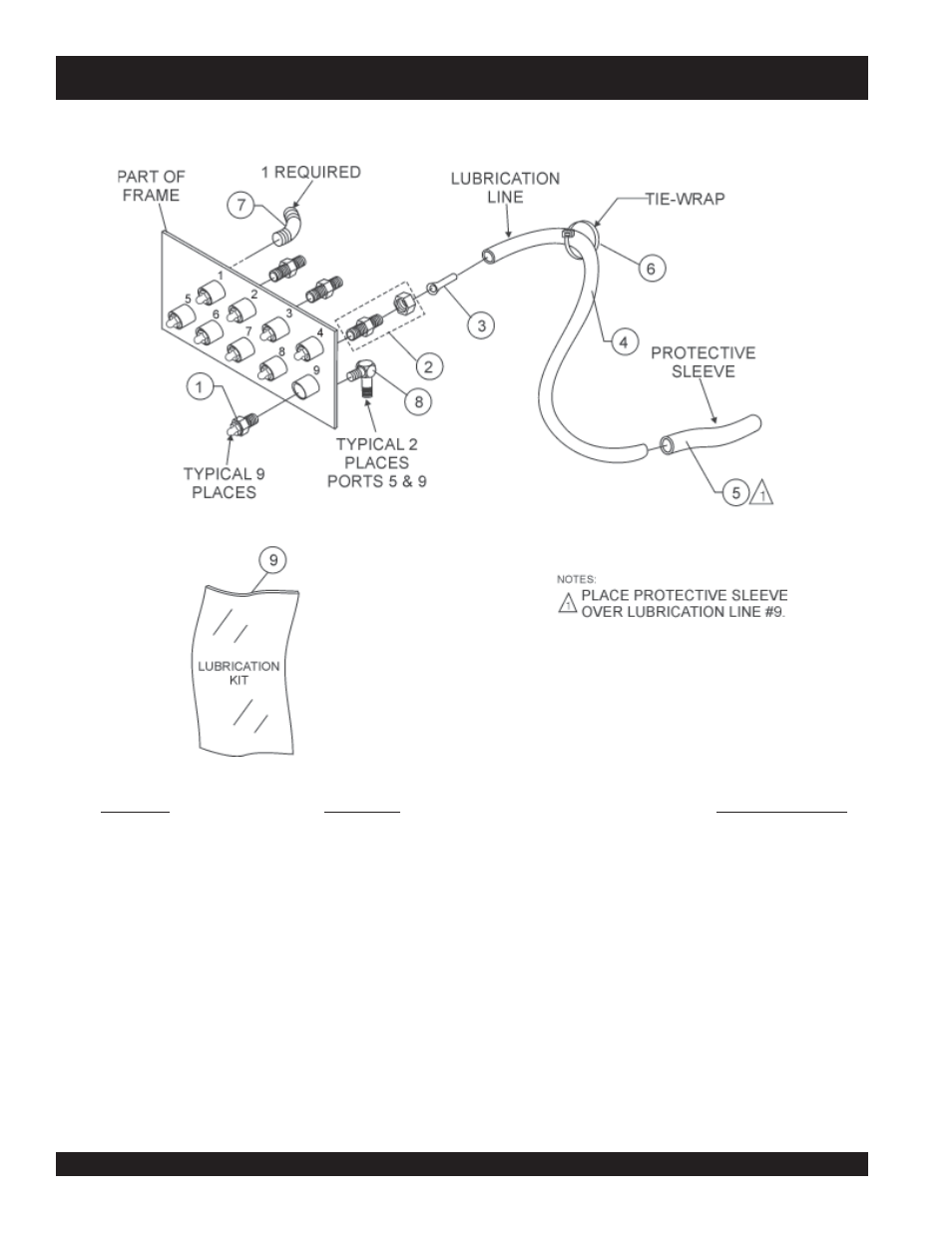

MG-30 PUMP — LUBRICATION PANEL ASSY.
POSITION
LOCATION
LENGTH OF LINES
1 ............................................. CAM ROCKER BUSHINGS ........................................................ 11 IN. (28.0 CM.)
2 ............................................. GEARBOX BLOCK (BACK) ......................................................... 28 IN. (71.1 CM.)
3 ............................................. CAM ROCKER ARM ROLLER .................................................... 27 IN. (68.7 CM.)
4 ............................................. CONNECTING ROD (UP) .......................................................... 40 IN. (102 CM.)
5 ............................................. CAM ROCKER ARM (BEARING HOUSING) .............................. 35 IN. (88.9 CM.)
6 ............................................. GEARBOX BLOCK (FRONT) ...................................................... 29 IN. (73.6 CM)
7 ............................................. CONNECTING ROD (DOWN) .................................................... 40 IN. (102 CM.)
8 ............................................. CRANK ROCKER ARM (BUSHINGS) ......................................... 10 IN. (25.4 CM.)
9 ............................................. CRANK ROCKER ARM (BEARING HOUSING) .......................... 29 IN. (73.6 CM.)
...............................................TOTAL LENGTH OF LINES REQUIRED .................................... 249 IN. (632.4 CM.)
LUBRICATION PANEL ASSY.
