Stile, Accessories flashing profiles rake detail – Metal Sales Stile Installation User Manual
Page 40
STILE
39
© Metal Sales Manufacturing Corporation/ Subject to change without notice
ACCESSORIES
FLASHING PROFILES

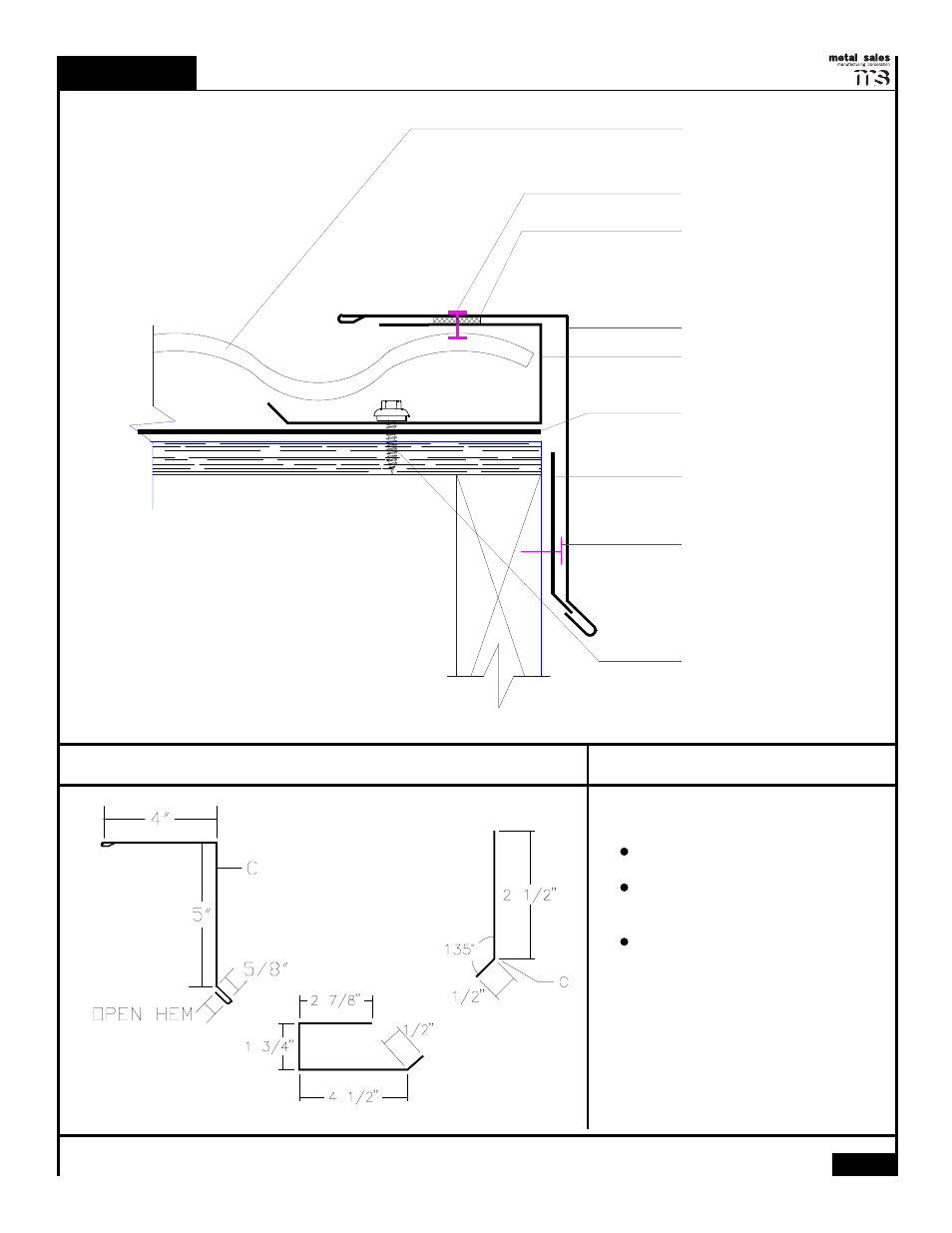

RAKE DETAIL
WOODSCREW XL
FASTENER
CLEAT
MOISTURE BARRIER
RAKE STARTER
RAKE
TUBE SEALANT
POP RIVET
STILE PANEL
CLEAT
RAKE
RAKE STARTER
TUBE SEALANT
POP RIVETS
(1'-0" O.C. TYPICAL)
WOODSCREW XL
(1'-0" O.C. TYPICAL)
