Stile, Installation of eave or gutter flashing – Metal Sales Stile Installation User Manual

Page 21

STILE

1. Attach Eave or Gutter flashing starting at the edge of the roof and extending the length of the

eave.

2. Fasten the top leg of the Eave or Gutter flashing to the roof decking with a Woodscrew XL

fastener placed 1" from the edge of the eave. Fasteners should be placed on 5'-0" centers along

the Eave or Gutter flashing to provide temporary attachment of the flashing until the roof

panels are installed. Eave or gutter flashings should overlap the previously installed piece by 3".

3. Once the Eave or Gutter flashing has been attached, the Stile Starter may be installed.

The Stile Starter is recommended to help the installer maintain straight panel appearance at the

eave of the building by providing a reference line at the first panel step. The Stile Starter is

placed 2" back from the eave and extends the length of the eave. Attach the Stile Starter to the

roof with a Woodscrew XL fastener placed 3'-0" o.c. Lapping of the Stile Starter is not required.

EAVE OR GUTTER

STILE STARTER

WOODSCREW XL

EAVE

*Follow the same procedures

for use with the gutter flashing

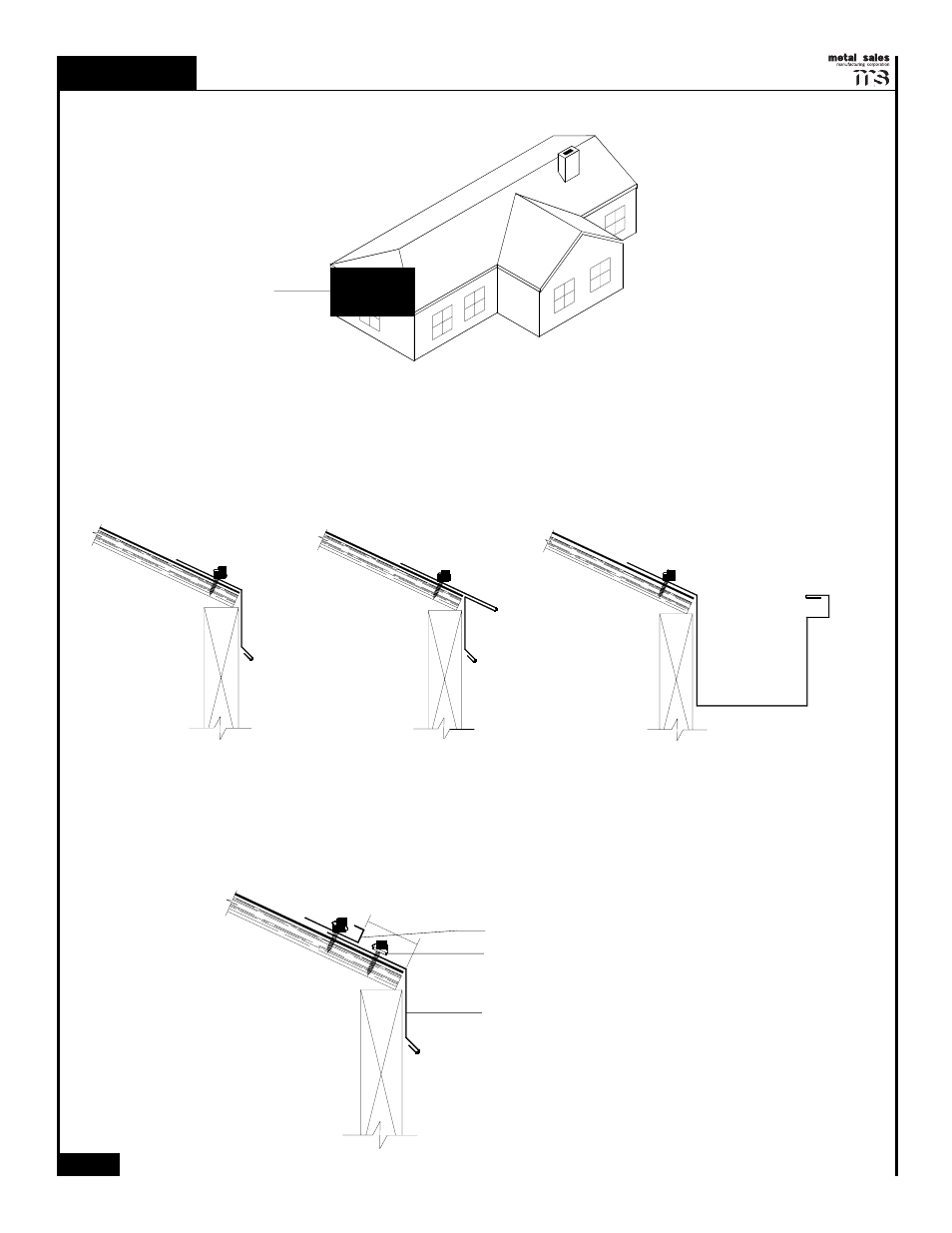

INSTALLATION OF EAVE OR GUTTER FLASHING

SIMPLE EAVE

EXTENDED EAVE

EAVE WITH GUTTER
