INSTALLATION OF PANEL
(CONT)
1. Stile panels are installed from right to left. Once the first Stile panel is in place, install the
second panel by lapping the right side of the panel over the last rib of the previously installed panel.
2. Align the sidelap of the panels and check proper seating of the panels at the lap and eave.
3. Apply Stile Closure and fasten panel to roof deck following the same pattern as the first panel.
All panels thereafter will be installed in the same manner as the first few panels.
4. Placement of
1
/
8
" Pop Rivet and Tube Sealant is optional at the panel sidelap. Recommended spacing
of the Pop Rivet is every 12" along the sidelap.

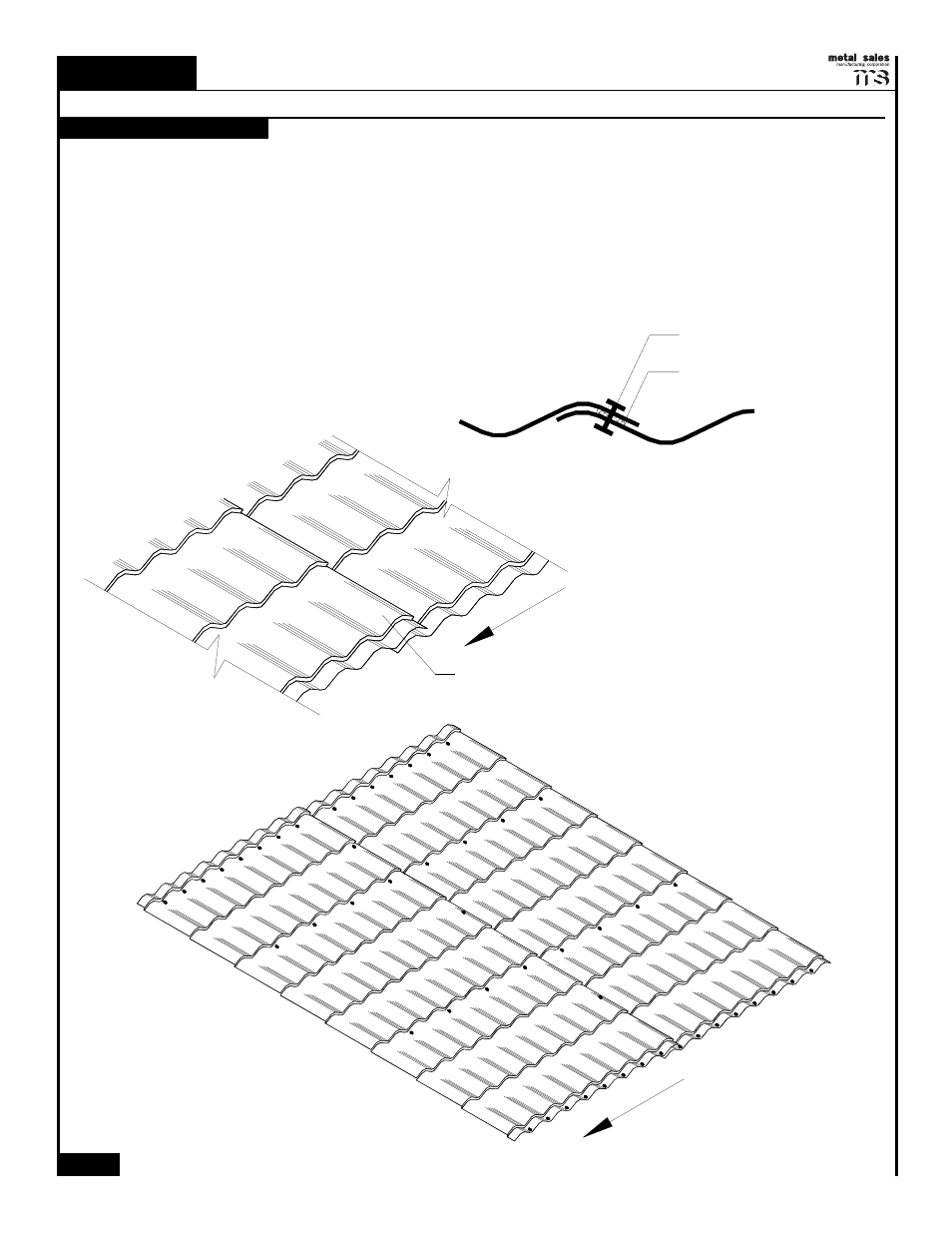

SIDELAPPING OF PANEL
LAP RIGHT SIDE OF PANEL OVER
PREVIOUSLY INSTALLED PANEL
SEALANT (OPTIONAL)
POP RIVET (OPTIONAL)
SIDE LAP
PANEL INST
ALLA
TION
DIRECTION
EAVE
PANEL INST
ALLA
TION
DIRECTION
