Metal Sales Stile Installation - Manual (Page 25)

STILE
24
© Metal Sales Manufacturing Corporation/ Subject to change without notice

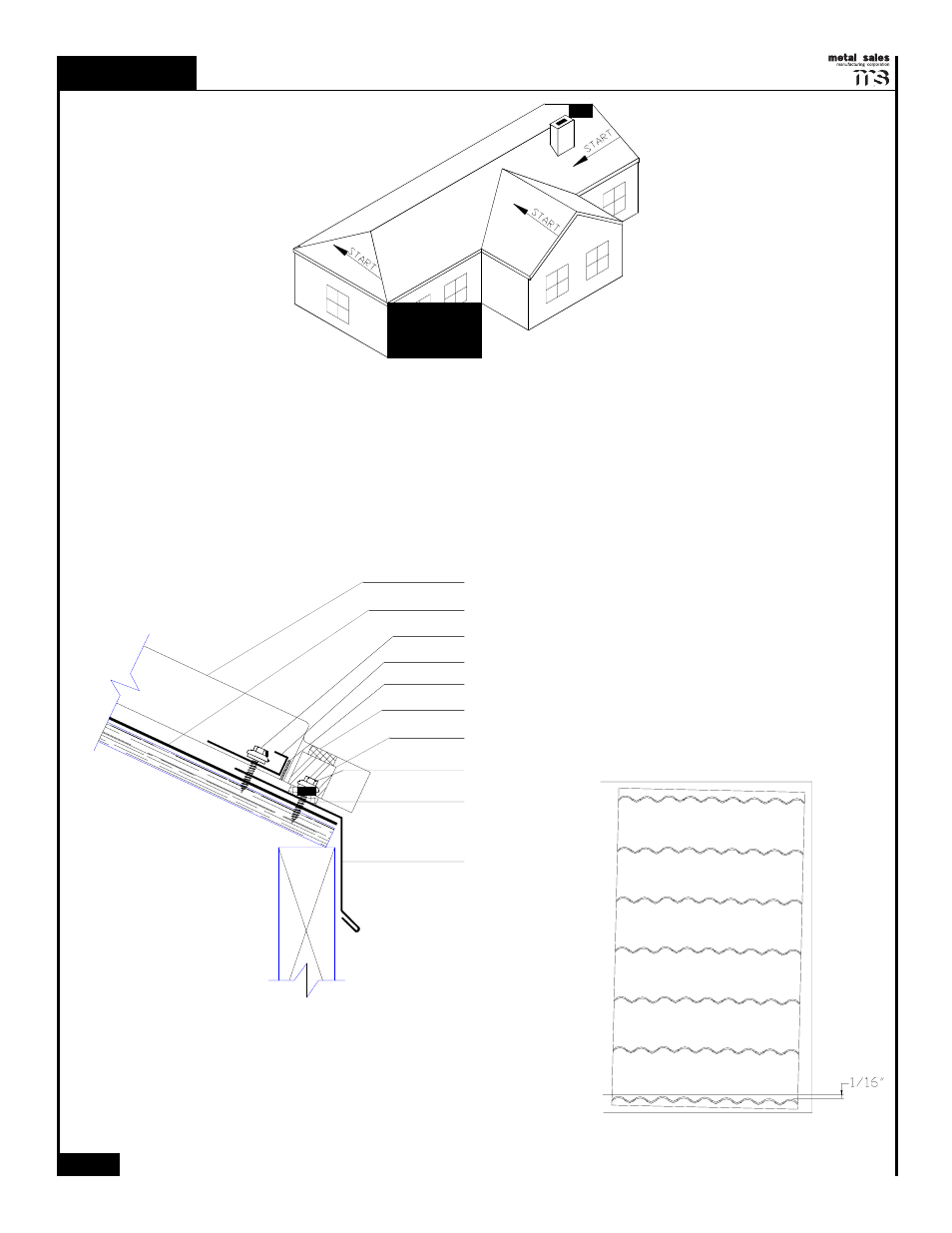

INSTALLATION OF PANEL
1. Stile panels must be installed from right to left.
2. When starting at a rake, slide the panel into the opening of the previously installed Rake Starter
until it hits the vertical leg of the flashing.
3. Align the Stile panel with the eave allowing the bottom leg of the sheet to extend 1 /
2
" over the
edge of the eave. It is important to tilt the right side of the panel 1 /
16
" lower than the left side.
This is required to keep the panel thickness from accumulating at the eave and can be easily
accomplished by simply placing a 1 /
16
" spacer between the Stile Starter and the first step on the
right side of the Stile panel.
STILE PANEL
WOODSCREW XL
1 /
16
" SPACER ( 1 /
2
" X 1")
STILE STARTER
TUBE SEALANT
WOODSCREW XL
TUBE SEALANT
EAVE
EAVE
RIDGE
MOISTURE BARRIER
STILE CLOSURE
