STILE
A
FLASHING PROFILES ACCESSORIES
UNIVERSAL OR STILE CLOSURE
WOODSCREW XL
B
C
FORMED RIDGE
TUBE SEALANT
POP RIVETS
(1'-0" O.C. TYPICAL)
(1'-0" O.C. TYPICAL)
STILE PANEL
WOODSCREW XL
POP RIVET
TUBE SEALANT
FORMED RIDGE
MOISTURE BARRIER
STILE CLOSURE/
UNIVERSAL CLOSURE
(FOR USE ON HIP ONLY)
The following pages depict Metal Sales' suggested Stile details and are for illustration purposes only.
These details may not be applicable to all conditions or designs.

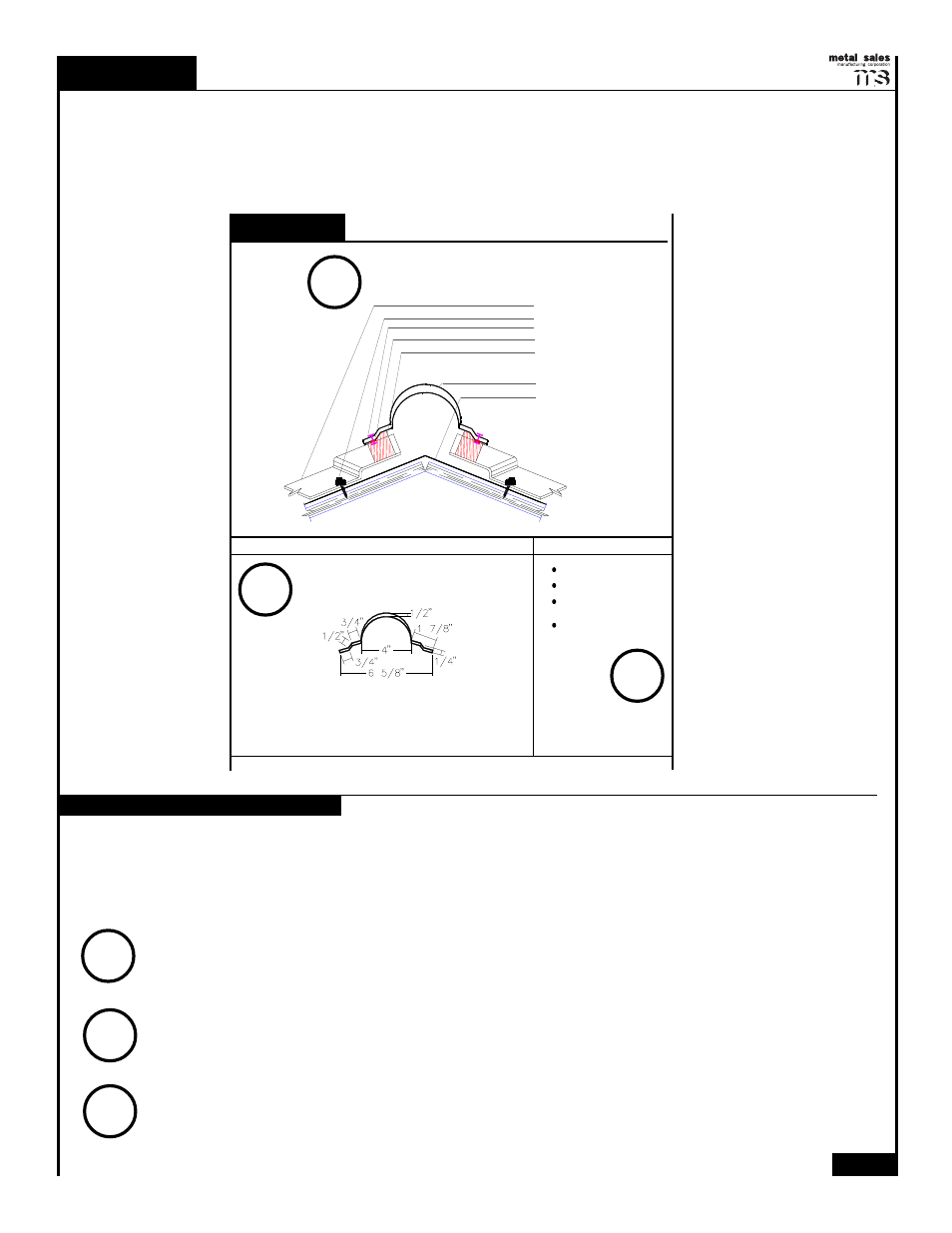

EXPLANATION OF CONDITION PAGES
A
B
The condition pages contain a clear illustration of the various flashing details, illustrations of
all necessary manufactured components, and a listing of the remaining components neces-
sary to assemble the flashing condition.
Refers to Metal Sales' suggested flashing condition detail. This illustration shows the correct
component placement for each detail.
Refers to Metal Sales' standard manufactured flashing profiles required to assemble the
flashing condition. These components are fully illustrated and discussed.
Refers to Metal Sales' accessories required to assemble the flashing condition.
C
FORMED RIDGE/ HIP DETAIL
CONDITION DETAIL EXPLANATION
