Design and Function
2.5 Electrical equipment
►
Operating voltage: See nameplate (page 16), 50/60 Hz
►
Current consumption: See nameplate (page 17 )
►
Protection class 1, i.e. operating insulation with PE conductor in accordance with EN
61010
►
Protection type IP 20 acc. to EN 60 529
►
Interference-suppressed acc. to EN 55011 class B
►
Appliance fuse: Fusible link 250 V/15 A quick-blow
►
The temperature controller is protected with a miniature fuse 100 mA (200 mA at 115 V)
►
The CO
2
controller is equipped with a 6.3 A miniature fuse.
2.6 Connections
1
3
4
5
6
2
CO
2

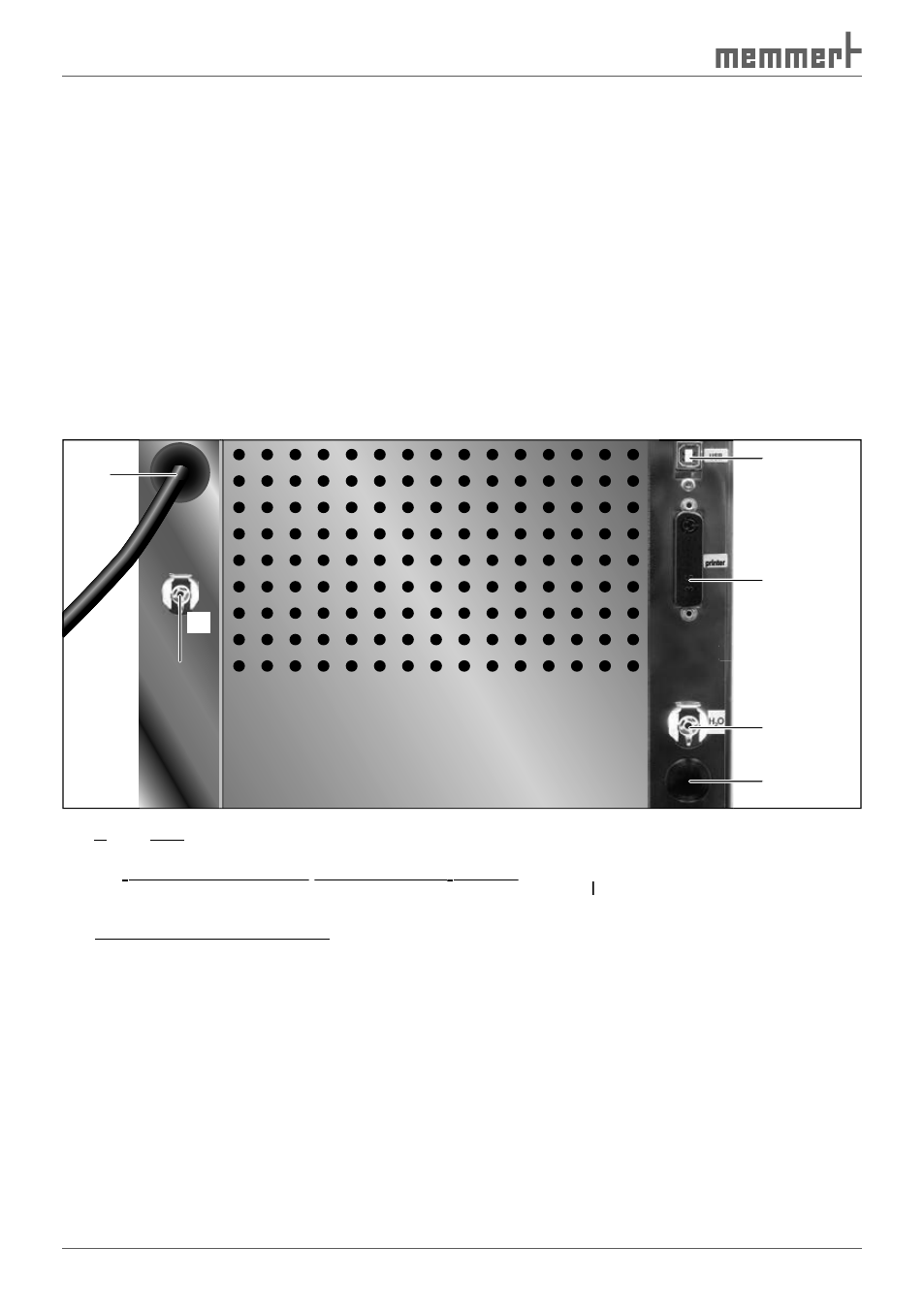

Fig. 5 Connections on rear of appliance
1 Mains lead
Fig. 5 Fig. 5 Connections on rear of appliance Connections on rear of appliance
2 CO
2
connection (only for models with CO
2
supply)
3 USB connection (optional
22
connection (only for models with CO connection (only for models with CO
ethernet connection, see page
connection (only for models with CO connection (only for models with CO
22
supply) supply)
57 ) 57 57
4 Printer connection (see page 51 )
5 Water connection (see page 23 Water connection (see page Water connection (see page ) 23 23
6 Fresh air connection (only for models with CO
Water connection (see page Water connection (see page
2
supply)
2.6.1 Electrical connection
Observe the country-specific regulations when connecting (e. g. in Germany DIN VDE 0100
with residual current circuit breaker).
This appliance is intended for operation on an electrical power system with a system imped-
ance Z
max
of a maximum of 0.292 ohm at the point of transfer (service line). The operator
must ensure that the cooled incubator is operated only on an electrical power system that
meets these requirements. If necessary, you can ask your local energy supply company what
the system impedance is.
