9400 Technology applications | Synchronism with mark synchronisation
Parameter setting & configuration
Brake control
48
L
EDS94TA10040xxxx EN 1.1 - 10/2008
4.11 Brake control

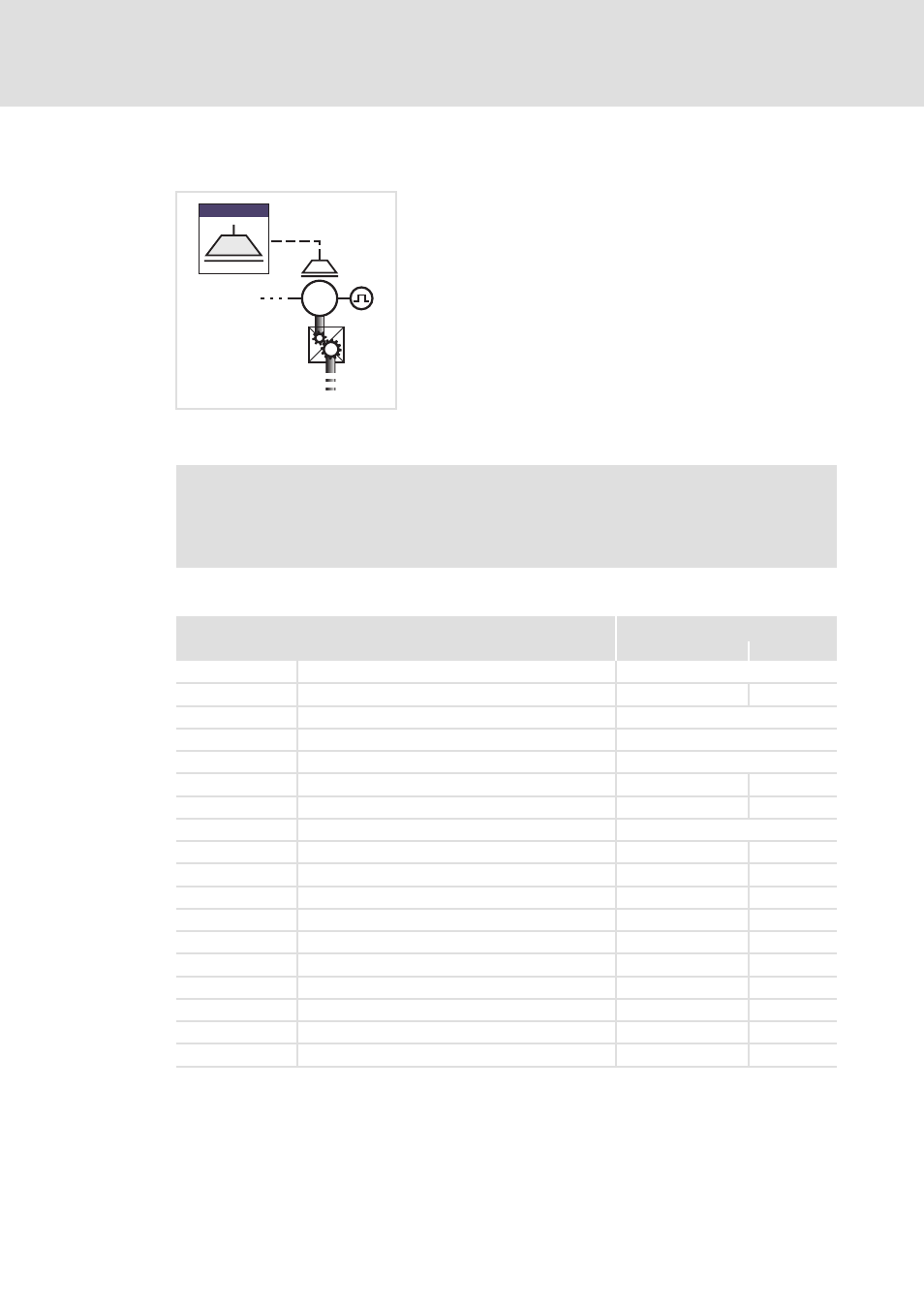

[4-16] Basic function "Brake control" (schematic diagram)
r Parameter setting: Tab Application parameters dialog level Overview Brake control
The basic function "Brake control" serves to the wear free
control and monitoring of a holding brake.
In the simplest case, an optionally available brake module
is used.
Alternatively the holding brake can also be controlled and
monitored via the digital inputs/outputs.
M
LS_Brake
Note!
In the Lenze setting the brake control is switched off to reach a safe status after
mains connection.
Parameter Lenze setting
Value Unit
C02580 Operating mode of brake Brake control off
C02581 Brake activation threshold 50 rpm
C02582 Brake resp. to pulse inhibit Activate the brake immediately
C02583 Status input monitoring Not active
C02585 Brake control polarity Not inverted
C02586 Starting torque 1 0.00 Nm
C02587 Starting torque 2 0.00 Nm
C02588 Starting torque source Starting torque 1/2
C02589 Brake closing time 100 ms
C02590 Brake opening time 100 ms
C02591 Waiting time - status monitoring 100 ms
C02593 Waiting time - brake activation 0.000 s
C02594 Test torque 0.00 Nm
C02595 Permissible angle of rotation 5 °
C02596 Grinding speed 100 rpm
C02597 Accel./decel. time - grinding 1.000 s
C02598 Grinding ON time 0.5 s
C02599 Grinding OFF time 0.5 s
