9400 Technology applications | Synchronism with mark synchronisation
Parameter setting & configuration
"Manual jog" mode
42
L
EDS94TA10040xxxx EN 1.1 - 10/2008
4.7 "Manual jog" mode
In the "Manual jog" mode (C03006 = "4") the drive is decoupled from the electrical shaft
and the basic function "Manual jog" is enabled:

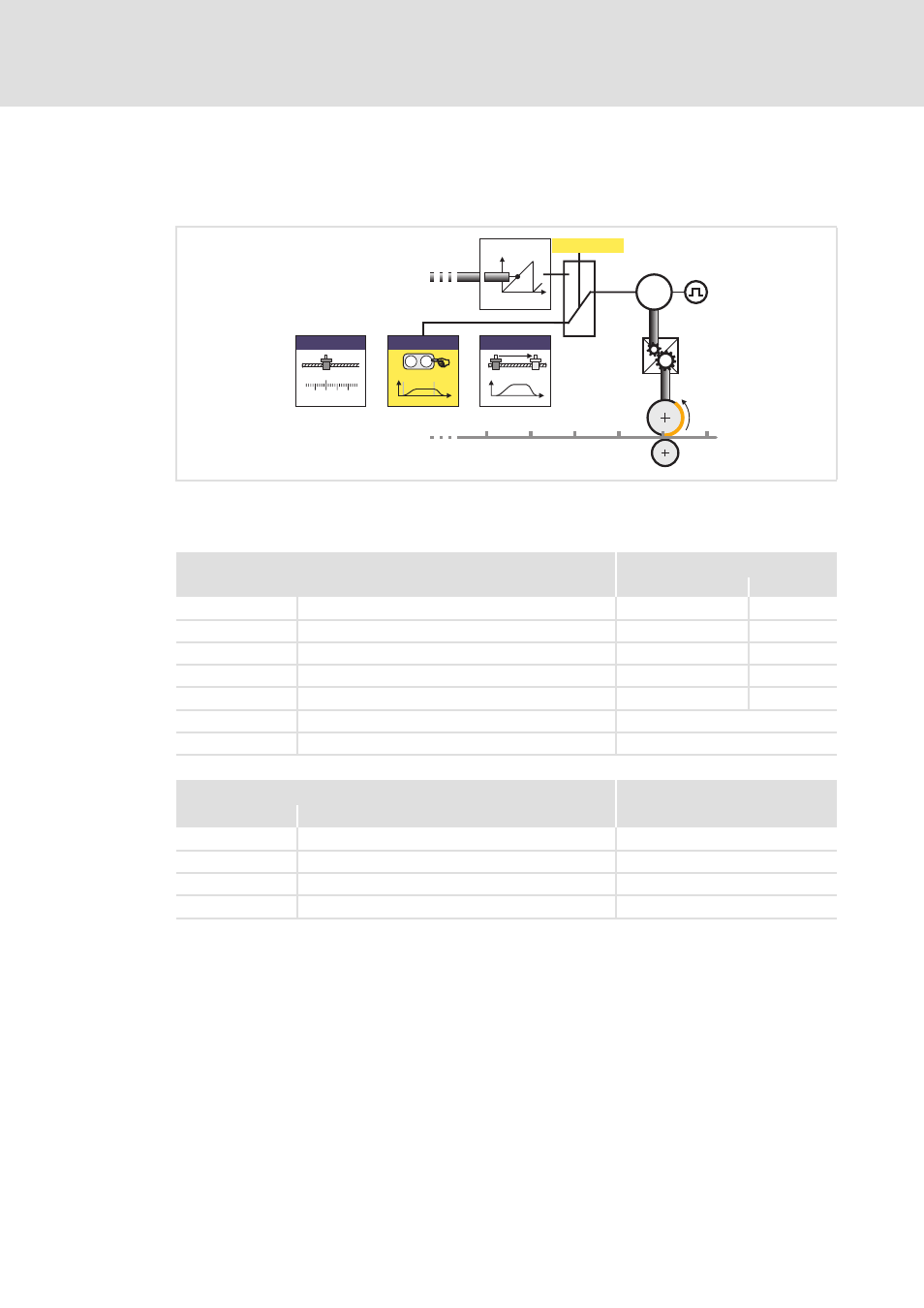

[4-12] "Manual jog" mode (schematic diagram)
r Parameter setting: Tab Application parameters dialog level Overview Manual jog
v
t
LS_ManualJog
n
t
и з
n
t
LS_Positioner
0 -100 100 200
LS_Homing
C03006 = 4
t
M
Slave
Parameter Lenze setting
Value Unit
C02620 Manual jog: Speed 1 360.0000 unit/s
C02621 Manual jog: Speed 2 720.0000 unit/s
C02622 Manual jog: Acceleration 360.0000 unit/s 2
C02623 Manual jog: Deceleration 1440.0000 unit/s 2
C02624 Manual jog: S-ramp time 0.100 s
C03007 Positive manual jog Inactive
C03008 Negative manual jog Inactive
Control inputs of the function Signal configuration
Lenze setting Control input (Multiplexer parameters)
C03007 Activate positive manual jog C03155/2
C03008 Activate negative manual jog C03155/3
FALSE Activate 2. speed C03155/4
FALSE Retract limit switch C03155/5
