9400 Technology applications | Synchronism with mark synchronisation
Parameter setting & configuration
"Synchronism" mode"
38
L
EDS94TA10040xxxx EN 1.1 - 10/2008
4.5.5 Setpoint processing

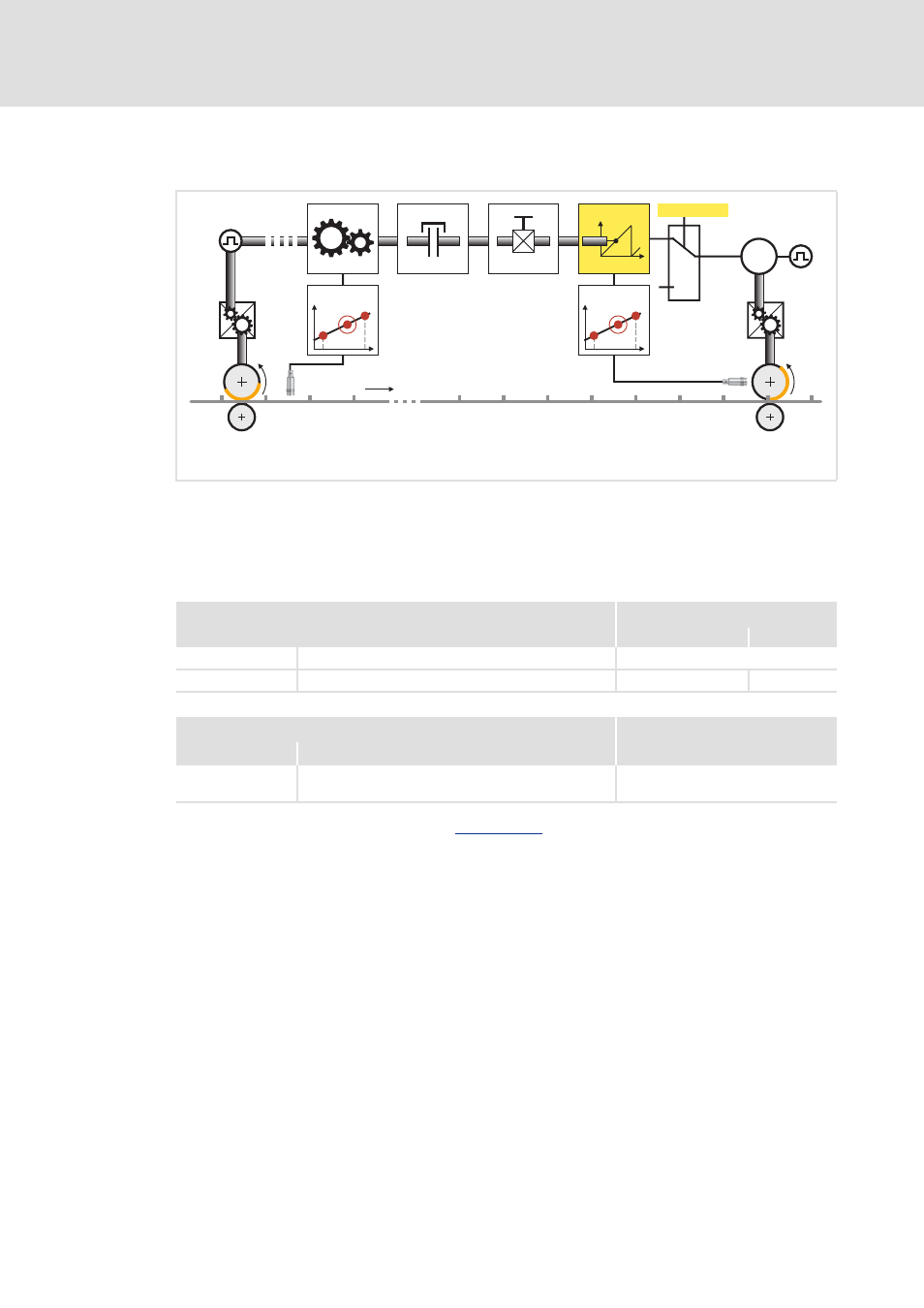

[4-9] "Setpoint processing" function in the signal flow (schematic diagram)
This function is used for position ratio between the master shaft and the machine axis.
r Parameter setting: Tab Application parameters dialog level Overview Synchronism
Setpoint processing
r Configuration: Tab FB editor FB ToolControl
n Master value with trimming
o Actual value
Œ

M
v
Slave
Real master/
Virtual master
C03006 = 0
v
t
Dj
Dj Dj
TP TP
Parameter Lenze setting
Value Unit
C02527 Motor mounting direction Motor rotating CW
C02536 Cycle 360.0000 unit
Control inputs of the function Signal configuration
Lenze setting Control input (Multiplexer parameters)
Controller inhibit
active
Delete following error C03058/20
