9400 Technology applications | Positioning sequence control
Parameter setting & configuration
Actual value and status signals
64
L
EDS94TA10060xxxx EN 1.2 - 03/2010

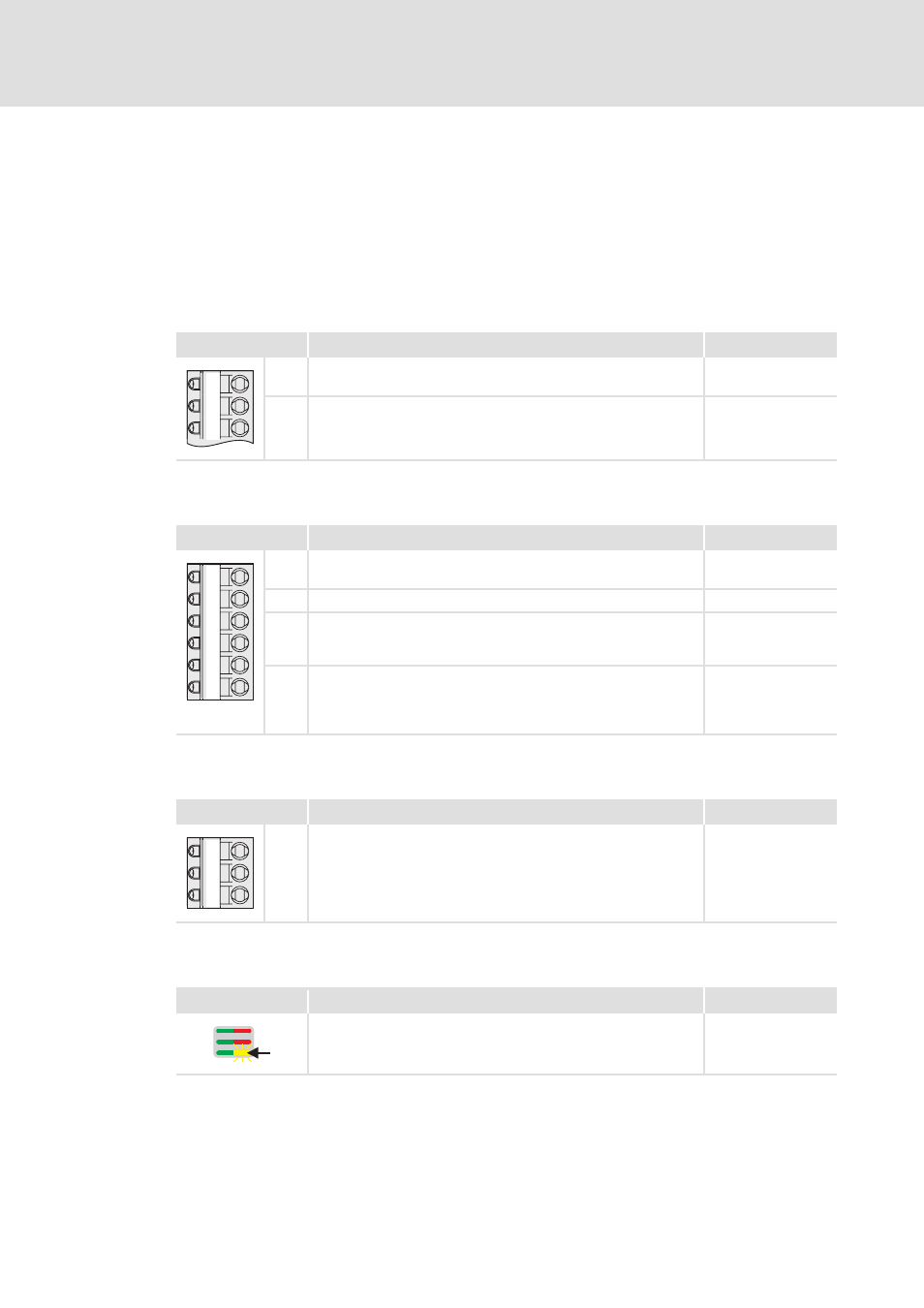

5.12 Actual value and status signals
The following tables contain the Lenze assignment of the analog and digital outputs for
the "Positioning sequence control" technology application.
 The default signal configuration if required can be easily changed by parameterising
the multiplexer parameters assigned.
Analog outputs
Digital outputs
Statebus
Display elements
Terminal X3 Signal (Lenze setting) Signal configuration
AO1 Motor speed
• Scaling: ±10 V ≡ motor reference speed (C00011)
C03110/1
AO2 Motor torque (setpoint)
• Scaling: 10 V ≡ Motor reference torque (C00057/2)
C03110/2
Terminal X4 Signal (Lenze setting) Signal configuration
DO1 Status "Drive ready"
• DC-bus voltage is available and no error has occurred.
C03100/1
DO2 Status "Positioner active" C03100/2
DO3 Status "Limitation active"
• At the moment a setpoint is limited or a software or hardware
limit switch has been reached.
C03100/3
DO4 Status "Error active acknowledgement is required"
• A monitoring function with the error response "Error" or "Quick
stop by trouble" has been activated and the controller is in the
status "Error active" or "Quick stop by trouble active".
C03100/4
Terminal X2 Signal (Lenze setting) Signal configuration
SB Status "Error active acknowledgement is required"
• A monitoring function with the error response "Error" or "Quick
stop by trouble" has been activated and the controller is in the
status "Error active" or "Quick stop by trouble active".
• The state bus is put in the "error" status.
C03100/5
User LED Signal (Lenze setting) Signal configuration
"Positioning sequence control active" status C03100/6
GA
AO1
AO2
GO
24O
DO1
DO2
DO3
DO4
GE
24E
SB
