9400 Technology applications | Positioning sequence control
Parameter setting & configuration
Following error monitoring
54
L
EDS94TA10060xxxx EN 1.2 - 03/2010
5.6 Following error monitoring

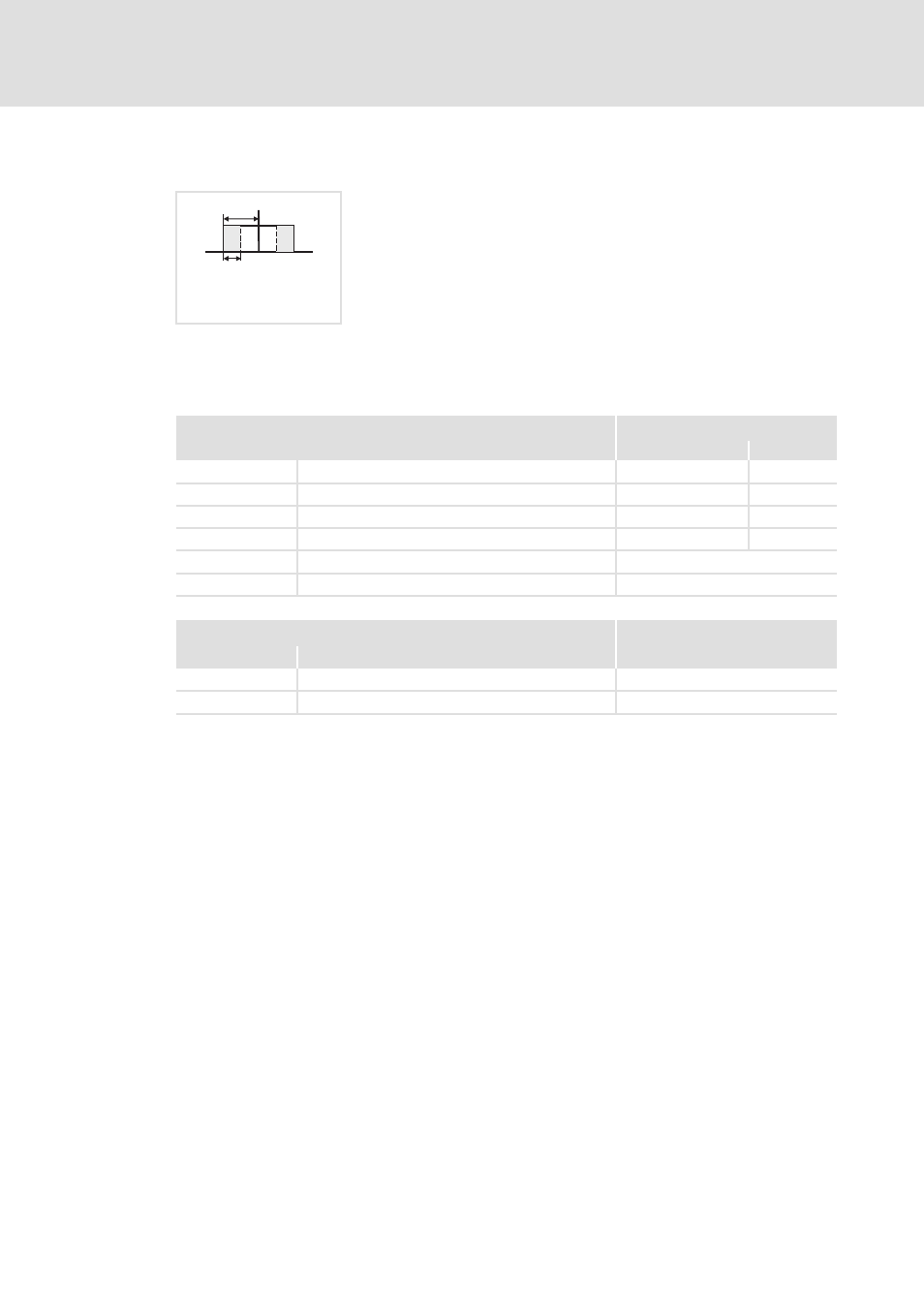

[5-12] Following error monitoring
 Parameter setting: Tab Application parameters  dialog level Overview  Following
error
n Switching threshold
o Hysteresis
In the Lenze setting a two-stage following error monitoring is
active.
If the parameterisable switching threshold 1 is exceeded, a
warning appears. If the higher-set switching threshold 2 is
exceeded, a "warning locked" appears.
j
Œ

Parameter Lenze setting
Value Unit
C03911 Switching threshold 1 100.0000 unit
C03914 Switching threshold 2 200.0000 unit
C03917 Hysteresis 1 0.0000 unit
C03920 Hysteresis 2 0.0000 unit
C05902/1 Error response - following error 1 Warning
C05902/2 Error response - following error 2 Warning locked
Control inputs of the function Signal configuration
Lenze setting Control input (Multiplexer parameters)
TRUE  Activate following error limit 1 C03058/1
TRUE  Activate following error limit 2 C03058/2
