9400 Technology applications | Positioning sequence control
Short setup
Step 3: Parameterising the program flow
4.6 Step 3: Parameterising the program flow
The program flow of the positioning sequence control is parameterised in the dialog level

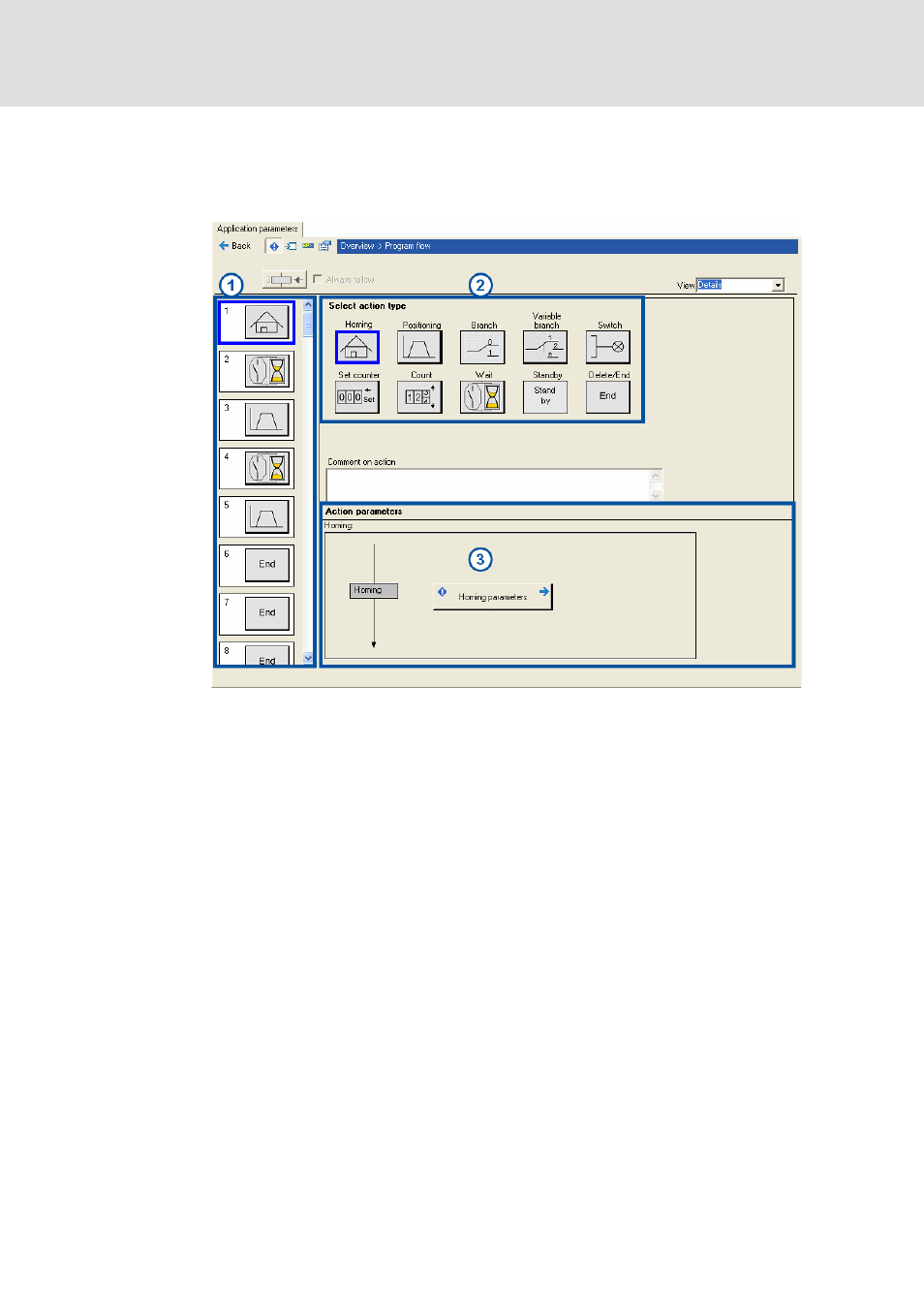

Overview  Program flow:
Basic procedure
In the default setting the sequence table contains a small "Positioning program", which
first rotates the axis 360° clockwise and afterwards 360° counter-clockwise.
Proceed as follows to define the desired program flow:
1. Select the program step (1 .... 100) to be edited on the left in the sequence table.
2. Select the action type for the selected program step by clicking it.
– If the selected action type provides more than one action, the next free action will be
automatically suggested in the Selection Action Number list field.
– Enter a comment on the action (option).
3. Set parameters of the action.
– If required, call the corresponding subsequent dialogs.
4. Repeat steps 1 ... 3 until all actions required for the program flow have been
parameterised (see the following sections).
5. Click Back to go back to the Overview dialog level.
