9400 Technology applications | Positioning sequence control
Parameter setting & configuration
Brake control
5.10 Brake control

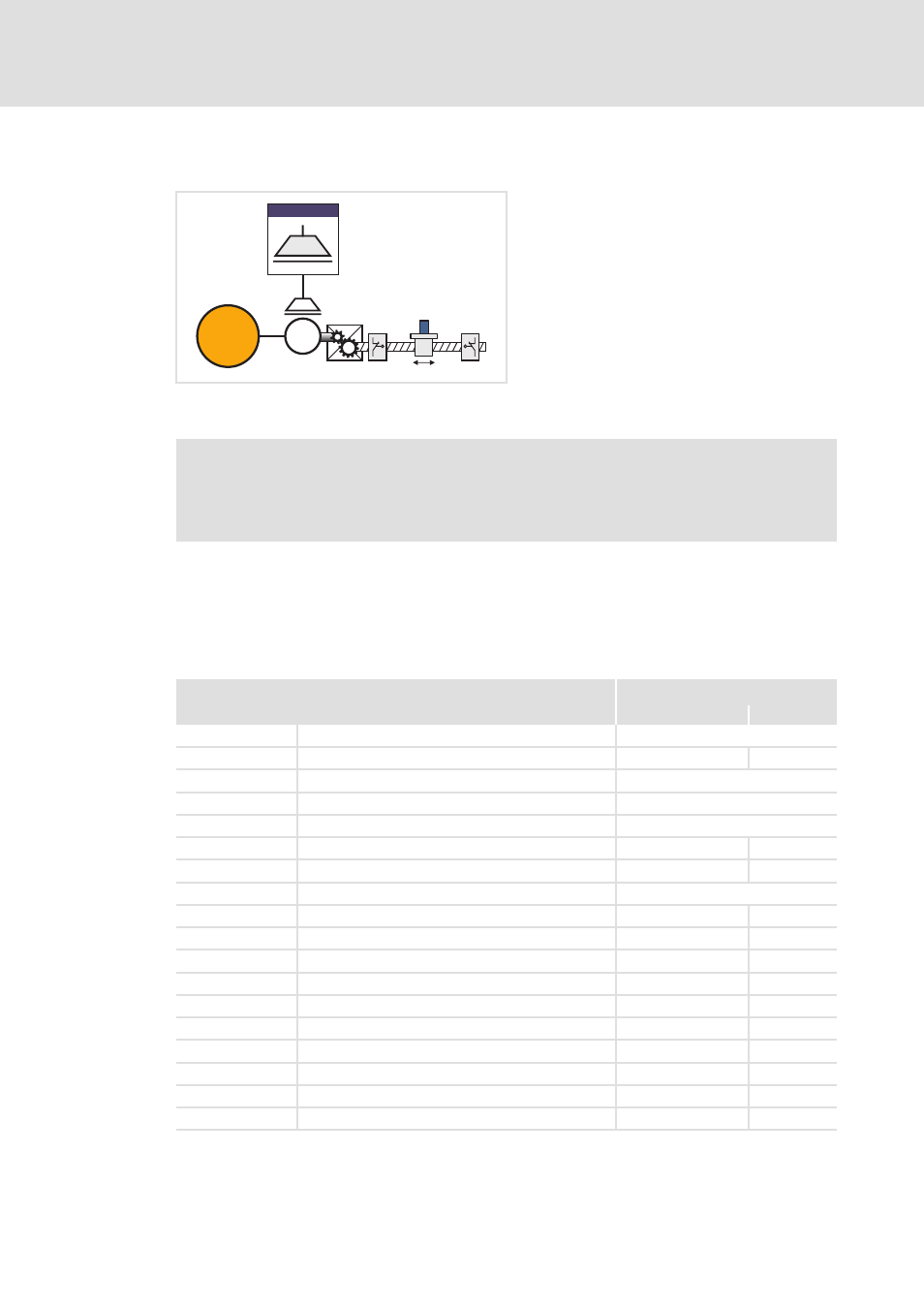

[5-16] Basic function "Brake control" (schematic diagram)
If the automatic operation (operating mode 2 or 12) is selected in C02580, the brake is
controlled automatically, i.e. if the multi-purpose positioning or another basic function is
activated which causes the drive to traverse, the brake is opened automatically and the
operation is enabled.
 Parameter setting: Tab Application parameters  dialog level Overview  Brake control
The basic function "Brake control" serves
to the wear free control and monitoring of
a holding brake.
In the simplest case, an optionally
available brake module is used.
Alternatively the holding brake can also be
controlled and monitored via the digital
inputs/outputs.
Status
machine
(basic drive
functions)
M
LS_Brake

Note!
In the Lenze setting the brake control is switched off to reach a safe state after
mains connection.
Parameter Lenze setting
Value Unit
C02580 Operating mode of brake Brake control off
C02581 Threshold for brake activation 50 rpm
C02582 Brake resp. to pulse inhibit Activate brake immediately
C02583 Status input monitoring Not active
C02585 Brake control polarity Not inverted
C02586 Starting torque 1 0.00 Nm
C02587 Starting torque 2 0.00 Nm
C02588 Starting torque source Starting torque 1/2
C02589 Brake closing time 100 ms
C02590 Brake opening time 100 ms
C02591 Waiting time - status monitoring 100 ms
C02593 Waiting time - brake activation 0.000 s
C02594 Test torque 0.00 Nm
C02595 Permissible angle of rotation 5 °
C02596 Grinding speed 100 rpm
C02597 Accel./decel. time - grinding 1.000 s
C02598 Grinding ON time 0.5 s
C02599 Grinding OFF time 0.5 s
