9400 Technology applications | Positioning sequence control
Parameter setting & configuration
Program flow
40
L
EDS94TA10060xxxx EN 1.2 - 03/2010
Example
The following example illustrates the function of the variable branch based on a program
flow which contains, among other things, two actions of the "Variable branching" type.

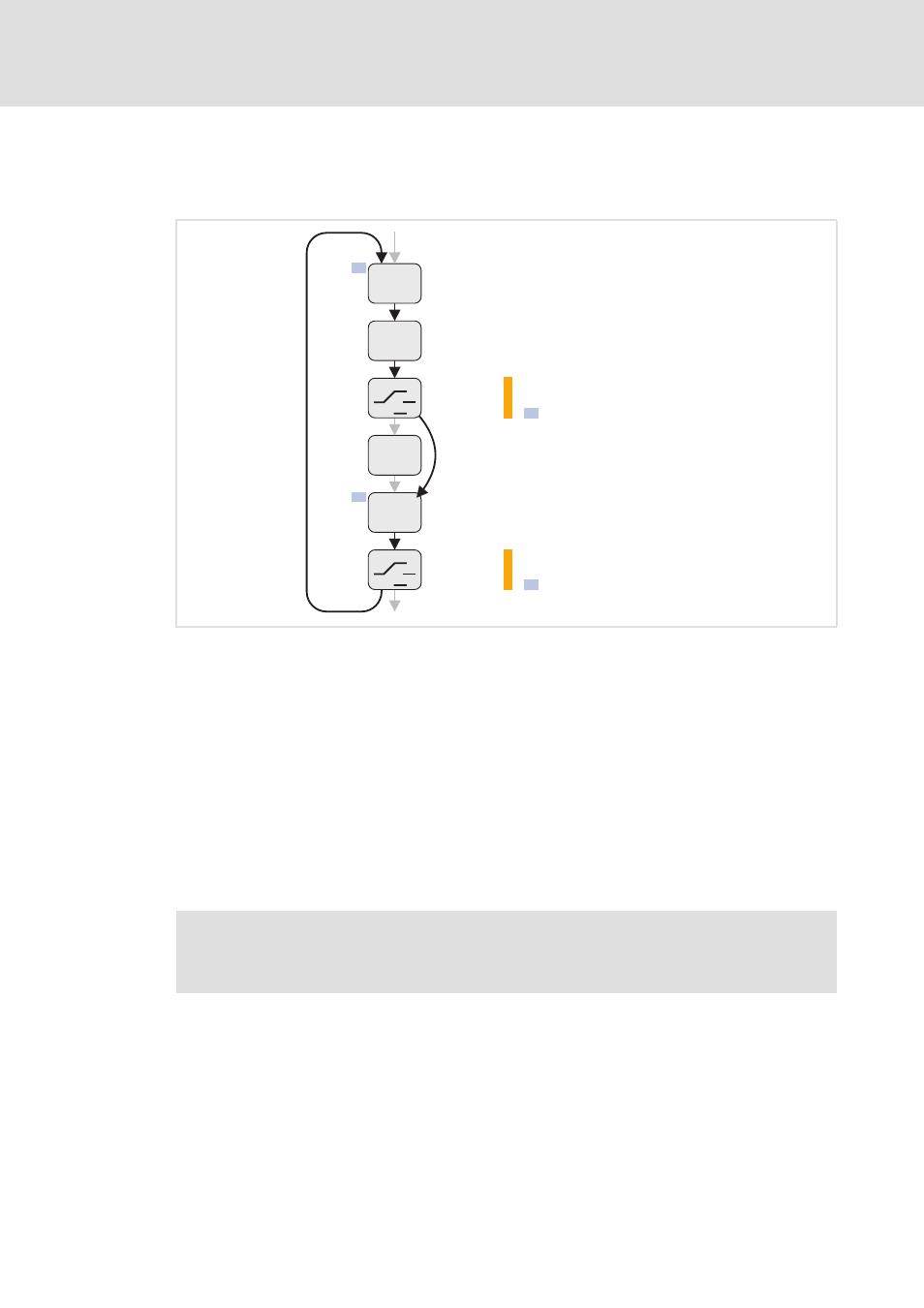

[5.2] Example "Variable branch"
5.3.5 Sequencer inputs
In order to control conditional branches and the optional waiting function of some action
types during the program flow, 32 sequencer inputs of "BOOL" type.
 The sequencer inputs 1 ... 16 can be linked with the signal sources of the application or
device interfaces in the dialog level Overview  L_Sequencer  Program inputs via
multiplexer parameters.
 For the action types "positioning", "branching", "waiting" and "stand-by", you can
individually define for each action which of the sequencer inputs is to be called for the
corresponding function when the program is executed.
Step 12
Step 13
Step 14
Step 15
Step 16
Step 17
Action number:
C0300 2
2
= 4
C04543/ 2 = 16
Action number:
C0300 3
3
= 20
C04559/ 3 = 12
1
n
2
1
n
2 W jump to step number [C04543/2]
W jump to step number [C04559/3]

Note!
The sequencer input 8 in the Lenze setting is linked with the digital input DI8.
