Lenze MC1000 Series - Manual (Page 82)

78 13435742_EDBM101_v24
APPENDIX

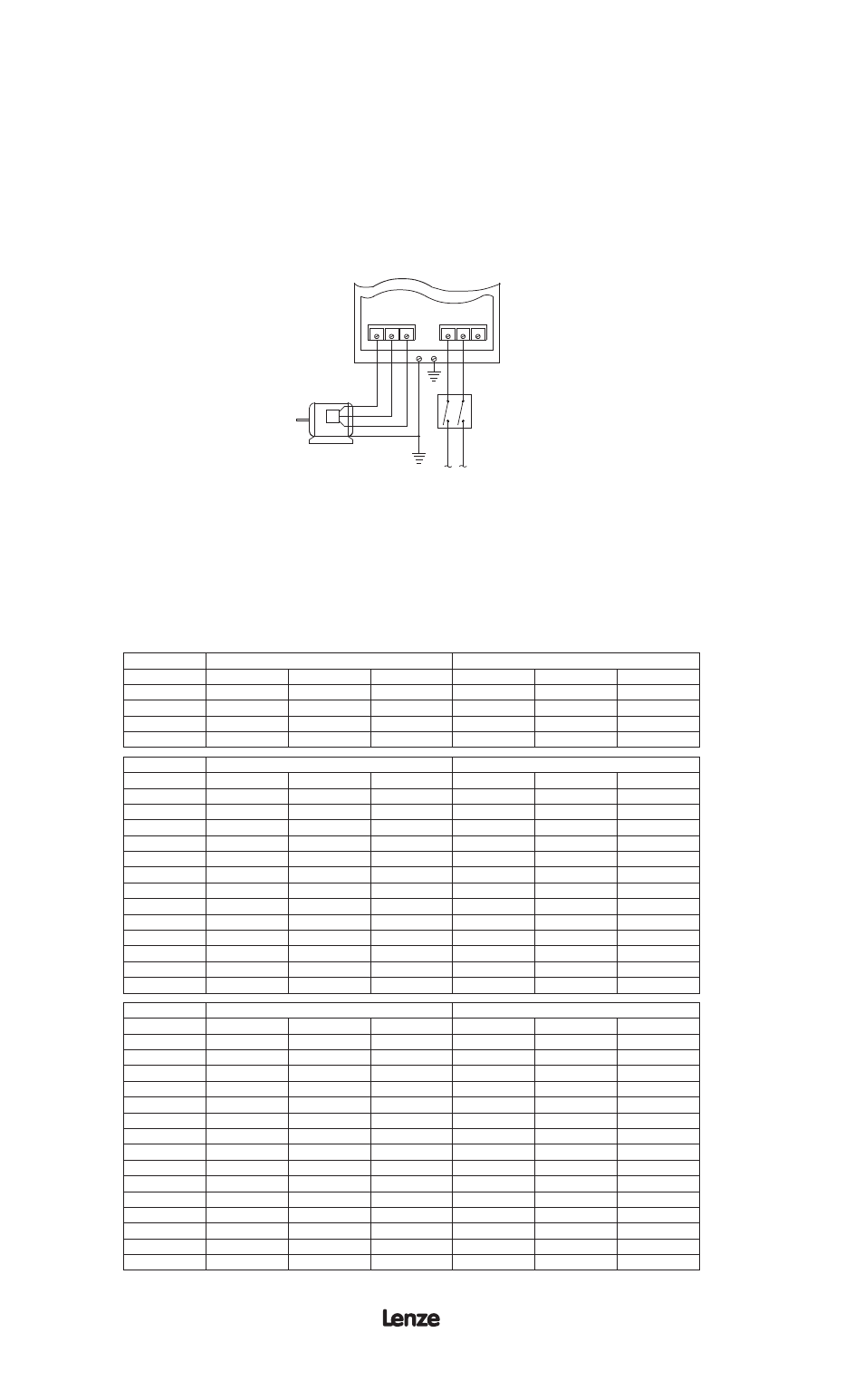

A SINGLE PHASE DATA SELECTED MODELS
Wiring & Derating of Selected Models Using Single Phase Input Power
A-1 WIRING
Alternative wiring for single phase input on selected models.
DISCONNECT
MEANS
(REQUIRED)
FUSED INPUT
VOLTAGE
GND
GND GND
L1 L2 L3 T1 T2 T3
THREE PHASE
AC MOTOR
Refer to Table A1 for single phase derating of select models
Refer to section 8.2 for sizing fuses and disconnecting means.
Refer to sections 10 and 11 for wire sizing and type.
A-2 DERATING
Table A1: Select MC1000 Series Models
Alternate Ratings using single-phase input power
Model Input Output
phase voltage (V) current (A) phase voltage (V) current (A)
M12150 1 200/240 54.7/47.6 3 0 - 230 21
M12200 1 200/240 70.1/61.0 3 0 - 230 27
M12250 1 200/240 88/77 3 0 - 230 34
M12300 1 200/240 103/90 3 0 - 230 40
Model Input Output
phase voltage (V) current (A) phase voltage (V) current (A)
M1410 1 400/480 2.7/2.4 3 0 - 460 1
M1420 1 400/480 4.7/4.1 3 0 - 460 1.7
M1430 1 400/480 6.5/5.7 3 0 - 460 2.4
M1450 1 400/480 10.2/8.9 3 0 - 460 3.8
M1475 1 400/480 14.7/12.8 3 0 - 460 5.5
M14100 1 400/480 18.3/15.9 3 0 - 460 7
M14150 1 400/480 27.4/23.8 3 0 - 460 10.5
M14200 1 400/480 35.1/30.5 3 0 - 460 13.5
M14250 1 400/480 44.2/38.4 3 0 - 460 17
M14300 1 400/480 52.0/45.0 3 0 - 460 20
M14400 1 400/480 68/59 3 0 - 460 26
M14500 1 400/480 85/74 3 0 - 460 32.5
M14600 1 400/480 100/87 3 0 - 460 38.5
Model Input Output
phase voltage (V) current (A) phase voltage (V) current (A)
M1510 1 480/590 1.9 3 0 - 460 0.8
M1520 1 480/590 3.3 3 0 - 575 1.3
M1530 1 480/590 4.6 3 0 - 575 1.9
M1550 1 480/590 7.1 3 0 - 575 3
M1551 1 480/590 7.1 3 0 - 575 3
M1575 1 480/590 10.5 3 0 - 575 4.5
M15100 1 480/590 12.5 3 0 - 575 5.5
M15150 1 480/590 19.3 3 0 - 575 8.5
M15200 1 480/590 24.9 3 0 - 575 11
M15250 1 480/590 30.9 3 0 - 575 13.5
M15300 1 480/590 36.2 3 0 - 575 16
M15301 1 480/590 36.2 3 0 - 575 16
M15400 1 480/590 46.5 3 0 - 575 20.5
M15500 1 480/590 58.9 3 0 - 575 26
M15600 1 480/590 71 3 0 - 575 31
