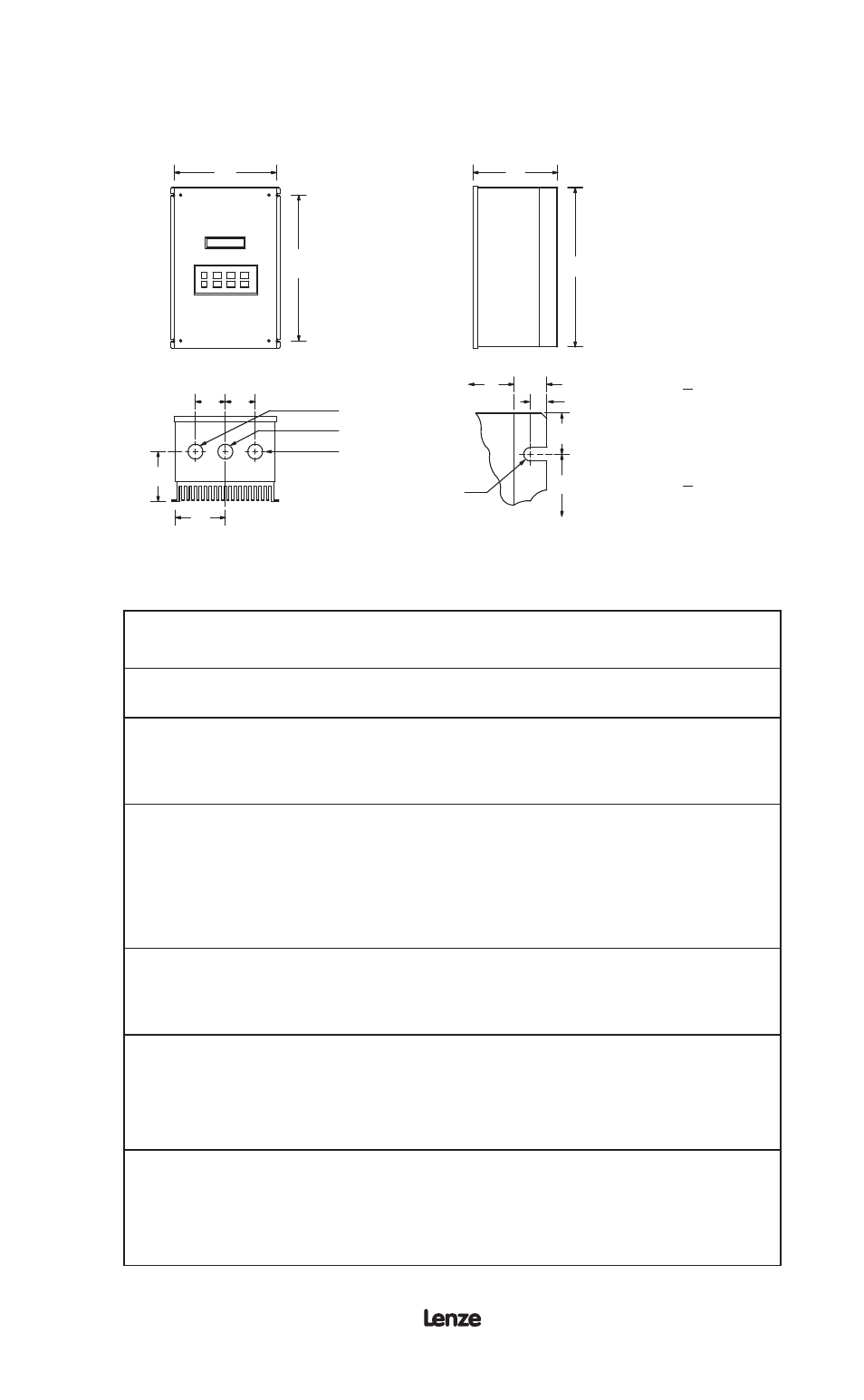

Mounting Tab Detail
V
Dia. Slot
Conduit Holes:
S Dia.
0.88" Dia.
S Dia.
N
P
Q Q
R
W
U IF W < 7.86"
T = 0.20"
U = 0.34"
V = 0.19"
IF W > 10.26"
T = 0.28"
U = 0.44"
V = 0.24"
4.3 TYPE 4, 4X & 12 DIMENSIONS: MODELS RATED UP TO 30HP
AT 240/200 Vac AND 60 HP AT 590/480/400 Vac
HP
(kW)
INPUT
VOLTAGE
MODEL H W D N P Q R S
0.25
(0.18)
240 / 120 M1103S 7.88 6.12 3.63 3.06 2.00 1.37 5.88 0.88
0.5
(0.37)
240 / 120 M1105S 7.88 7.86 3.75 4.80 2.10 1.37 5.88 0.88
240 M1205S 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
240/200 M1205 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
1
(0.75)
240 / 120 M1110S 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
240 M1210S 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
240 / 200 M1210 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
480 / 400 M1410 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
590 M1510 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
1.5
(1.1)
240/120 M1115S 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
240 M1215S 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
240/200 M1215 7.88 6.12 5.25 3.06 3.60 1.37 5.88 0.88
2
(1.5)
240 M1220S 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
240 / 200 M1220 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
480/400 M1420 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
590 M1520 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
3
(2.2)
240 M1230S 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
240 / 200 M1230 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
480 / 400 M1430 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
590 M1530 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
