9 VOLTAGE SELECTION
M1100 Series drives are rated for 240/120 Vac, 50-60 Hz input. The drive will
function with input voltage of 120 Vac (+ 10%, -15%) at 48 to 62 Hz when wired
for 120 Vac input, or with input voltage of 240 Vac (+ 10%, - 15%), at 48 to 62 Hz,
when wired for 240 Vac input.
M1200 Series drives are rated for 240/200 Vac, 50-60 Hz input. The drive will function
with input voltages of 200 to 240 Vac (+ 10%, - 15%), at 48 to 62 Hz.
M1400 Series drives are rated for 480/400 Vac, 50-60 Hz input. The drive will function
with input voltages of 400 to 480 Vac (+ 10%, - 15%), at 48 to 62 Hz.
M1500 Series drives are rated for 590/480 Vac, 50-60 Hz input. The drive will function
with input voltages of 480 to 590 Vac (+ 10%, - 15%), at 48 to 62 Hz.
To select the proper input voltage on 240/200 VAC 40-60 Hp models, 400/480 VAC
75-150 Hp and 480/590 VAC 75-150 Hp models the PL2 plug must be in the correct
position. PL2 is located either at the lower right corner, or upper right corner of the
power board, depending on horsepower. The PL2 plug is used to select the correct
input voltage. Plug PL2 into the top and middle pins to select 240, 480, or 590 VAC
or the middle and bottom pins to select 200, 400, or 480.
NOTE:
In addition to the voltage plug selection, Parameter 0 – LINE VOLTS must also
be programmed for the proper voltage. Refer to Section 18 - DESCRIPTION OF
PARAMETERS.

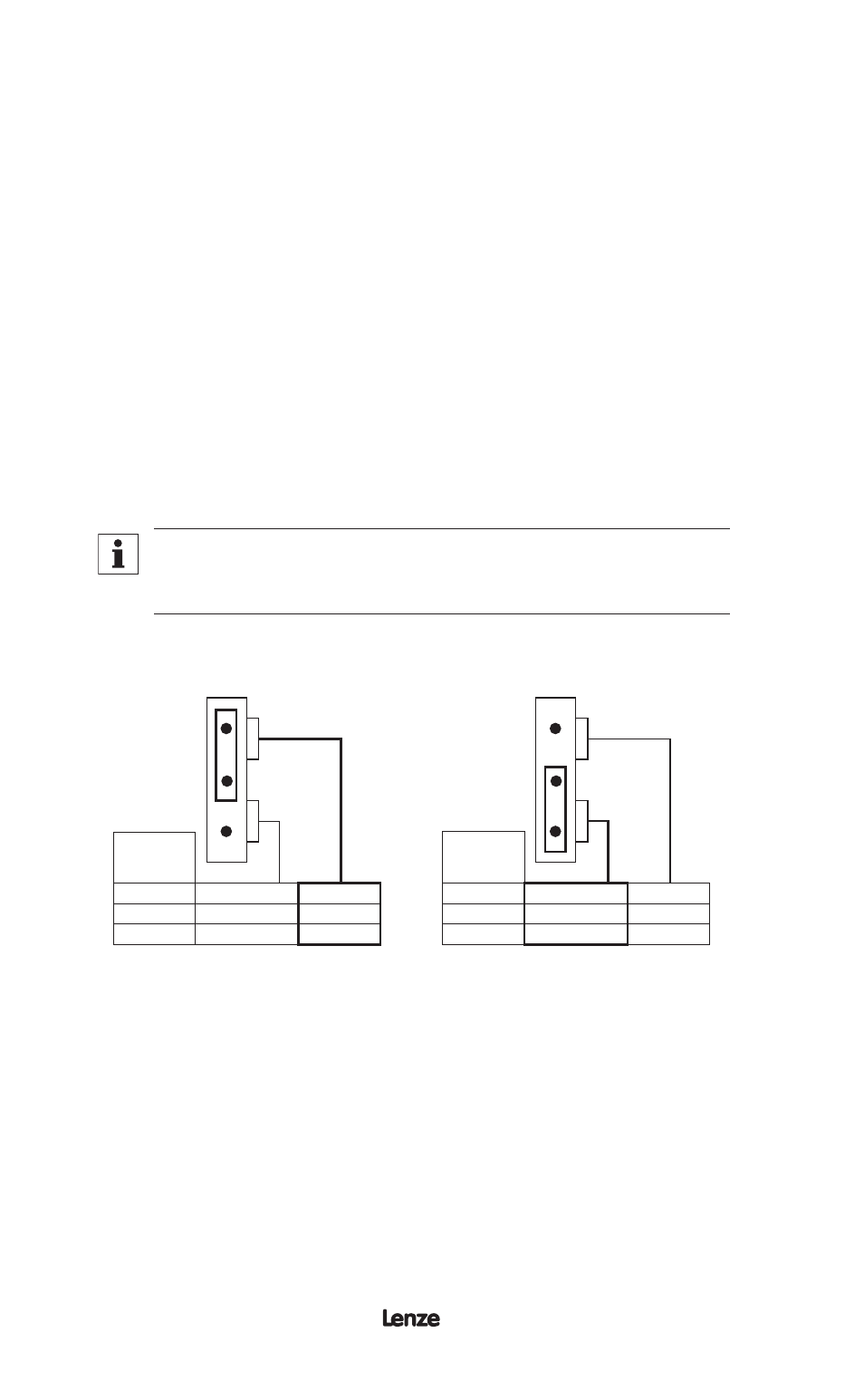

Voltage Selection Plug (PL2)
MODEL
CODE
1200
1400
1500 200V
400V
480V
240V
480V
590V
240 / 480 / 590 Vac INPUT
MODEL
CODE
1200
1400
1500
200V
400V
480V
240V
480V
590V
200 / 400 / 480 Vac INPUT
PL2 PL2
