Alignment
Leica Angle Two ™ User Manual Rev A02 © Leica Biosystems Richmond Inc. 2010 41
14. Move the spring to the bottom and then up using the DV drive.

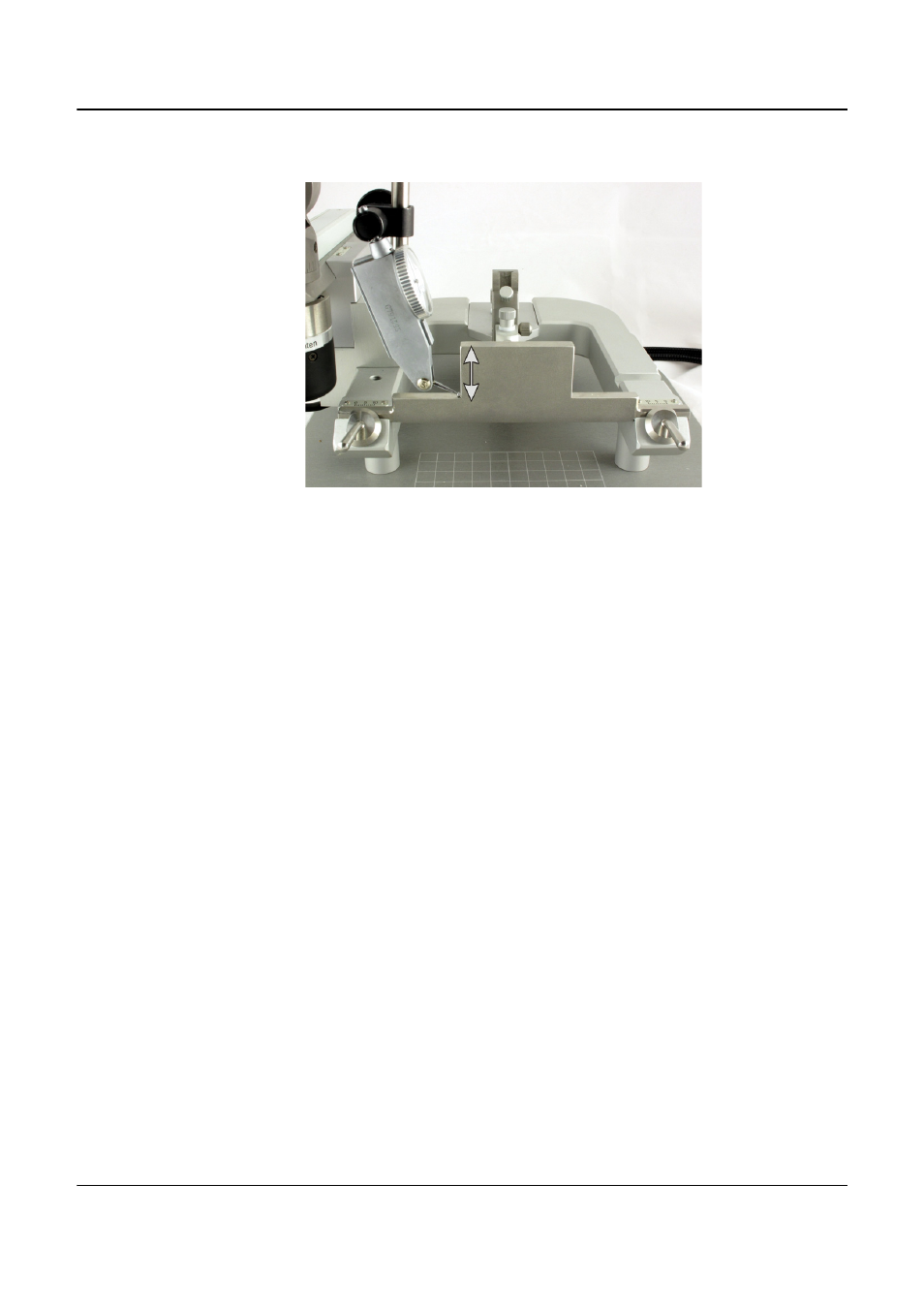

Figure 47. Vertical alignment when the tilt is in the ML direction
The instrument is aligned in the vertical axis if the dial arm only moves several divisions back
and forth, but stays roughly in the same position.
The instrument is not vertically aligned if the dial arm continuously moves in one direction.
To select a new vertical position:
(i) Loosen the tilt clamp (see Figure 35) and slightly adjust the manipulator into a new
position.
(ii) Retighten the clamp and repeat step 14.
15. When the ML tilt is aligned, select ll To ML on the computer screen (see Figure 28).
16. Click Setup and click Zero Angles to zero the Tilt and Rotation.
NOTE: if you cannot vertically align the instrument contact Leica Microsystems.
