Fine Drive
The fine drive (see Figure 9) provides greater control and smoother movement in the DV direction
when placing or removing the probe from the brain. The fine drive helps prevent inserting the
probe too deep.
Using the Fine Drive
1. Push the fine drive towards the cog to engage it.
2. Turn the fine drive to move in the DV direction.
3. When finished, pull the drive away from the cog to disengage.
Note: When engaging the fine drive, if no click is heard, slowly turn the coarse DV drive until you
hear it click into place. Immediately stop moving the coarse DV drive.
Caution
Do not use the coarse DV drive when the fine drive is engaged, as it will damage the instrument.

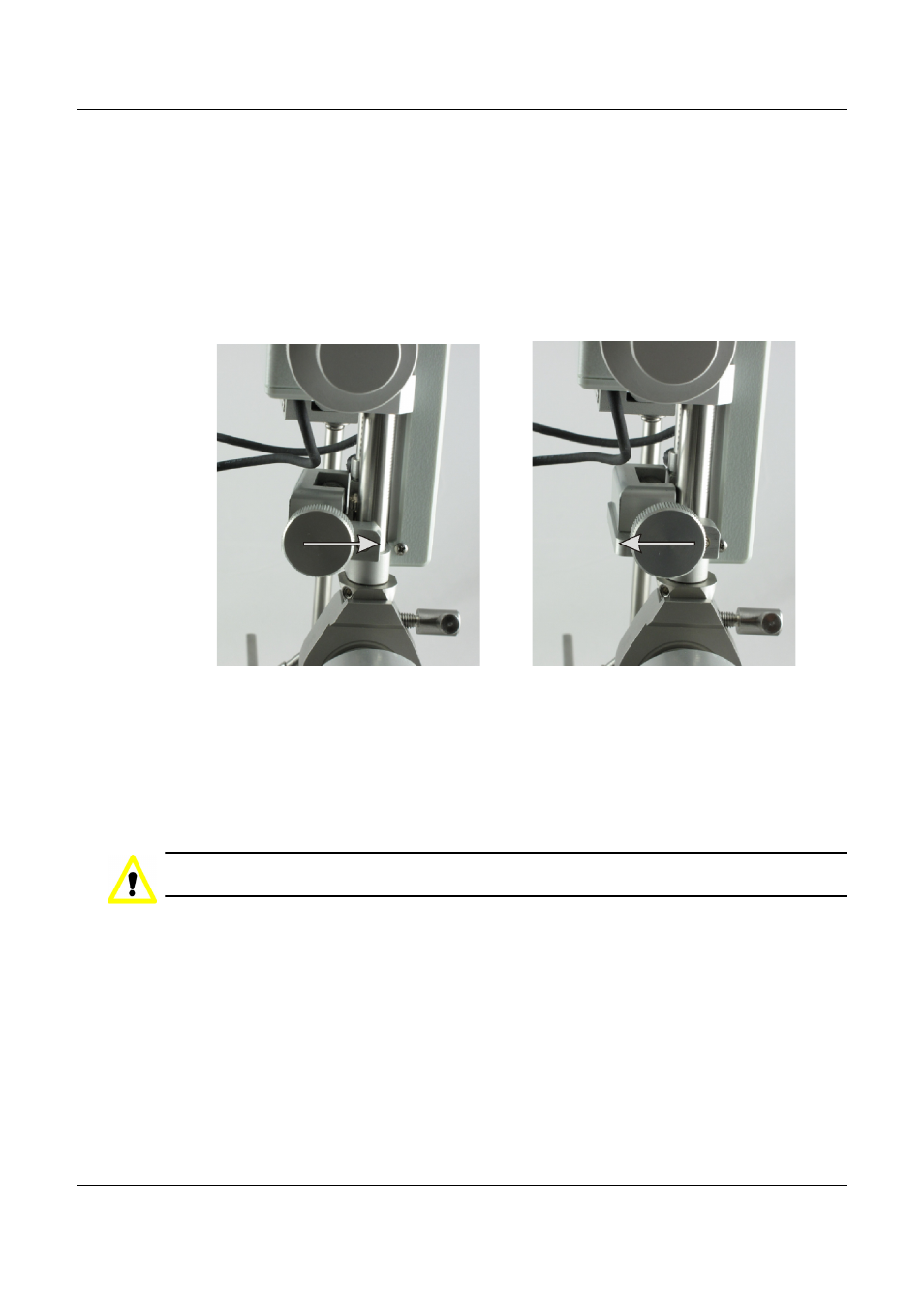

Figure 10. Engaging the fine drive
Figure 11. Disengaging the fine drive
