Page 16

Components
Leica Angle Two
™
User Manual Rev A02 © Leica Biosystems Richmond Inc. 2010
16
3.3 Manipulator: Tilt, Rotation and Swing-Out
Tilt, rotation and swing-out allow surgery to be performed at any angle. To change the tilt or
rotation, or use the swing-out, unlock the clamps indicated.

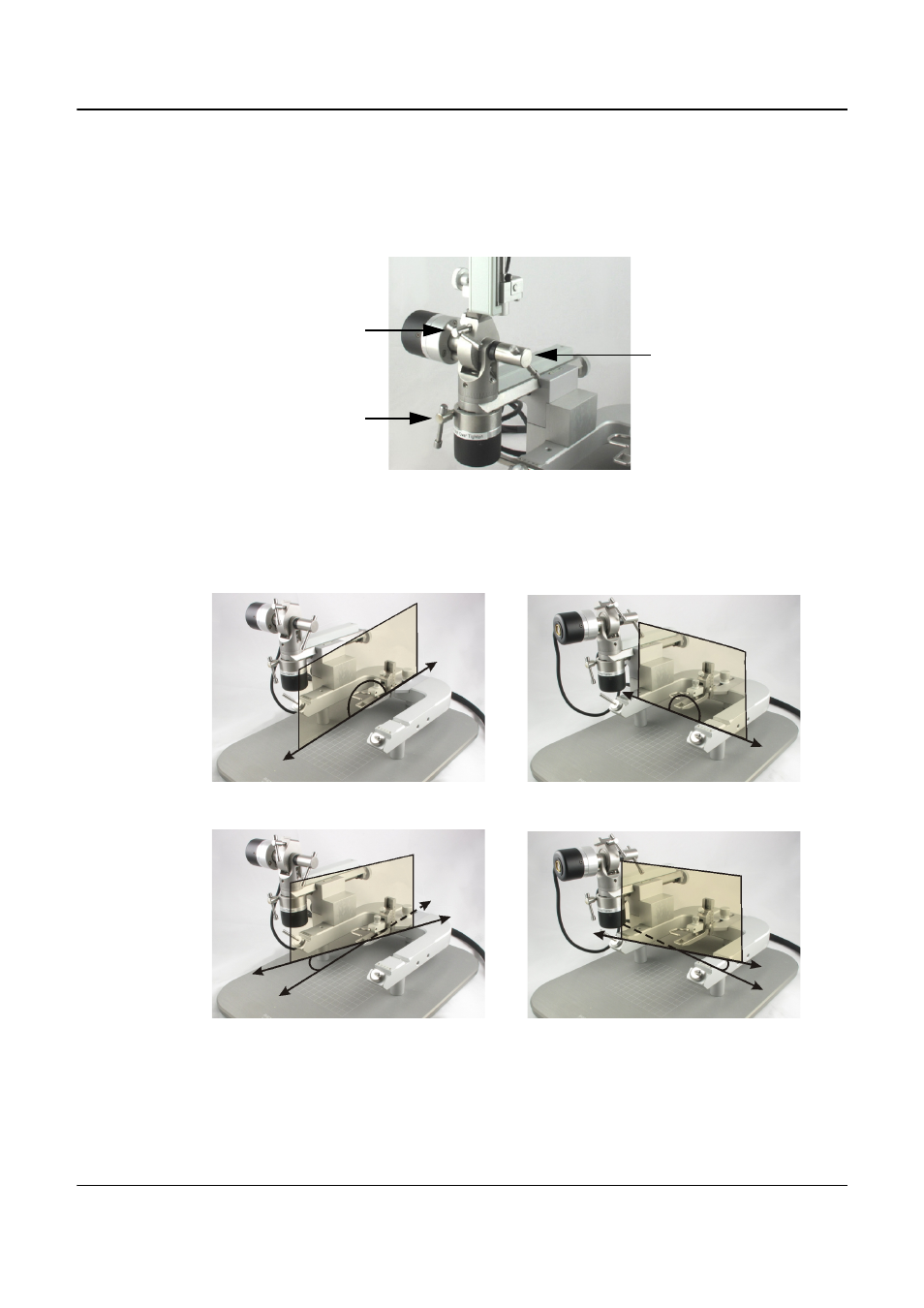

Figure 12. The swing-out, rotation and tilt clamps
Tilt changes the manipulator angle and in turn the probe’s angle of approach. The primary tilt can
be in either the AP or ML planes. Rotation rotates the plane of tilt between AP and ML.
Swing-out is used to swivel the manipulator 90° to allow access to the animal.
Figure 13. The plane of tilt in the AP and ML directions, showing the tilt range
Figure 14. Plane of the tilt with rotations from the basic AP and ML directions
