Swing-Out
Use swing-out to change the primary tilt plane by 90°, between the ML and AP directions (see
Figure 13) or to remove the probe from the area within the U frame and return it later to the same
position.
To change the primary tilt plane see “Tilt” on page 17.
To swing out the manipulator:
1. Unlock the swing-out clamp and push the manipulator up with your thumb just enough to clear
the raised edge on the base of the manipulator.

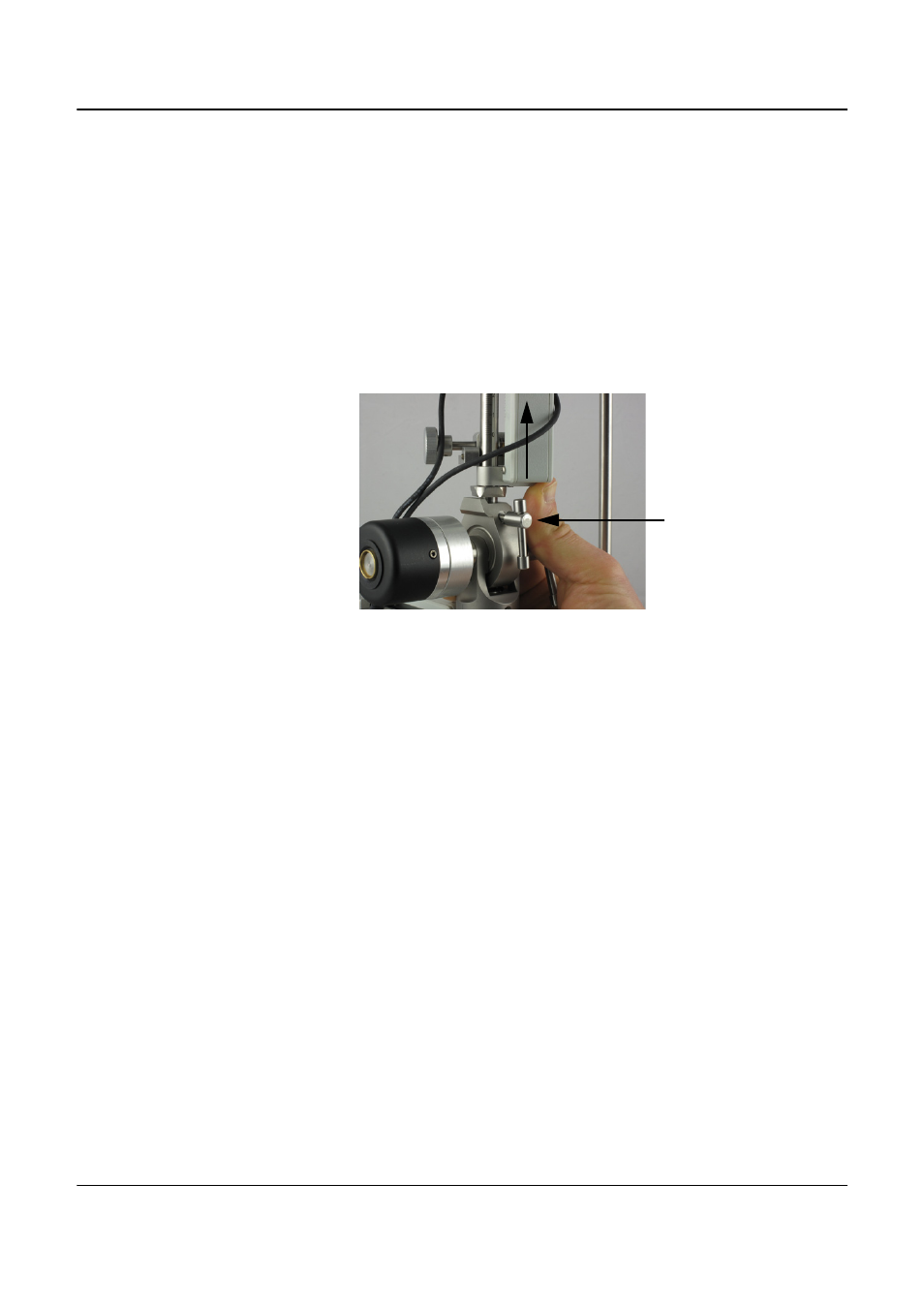

Figure 18. Raising the manipulator using swing-out
2. Swivel the manipulator around 90° then lower it back down in its new position.
3. Retighten the swing-out clamp.
Swing-out
clamp
