Components
Leica Angle Two ™ User Manual Rev A02 © Leica Biosystems Richmond Inc. 2010 13
3.2 Manipulator: Linear Movements
The manipulator is attached to the U frame and is used to move the probe. The manipulator has
three linear movements:

AP (Anterior/Posterior): moves horizontally along the length of the instrument

ML (Medial/Lateral): moves horizontally across the width of the instrument

DV (Dorsal/Ventral): moves vertically towards the animal.
AP ML DV

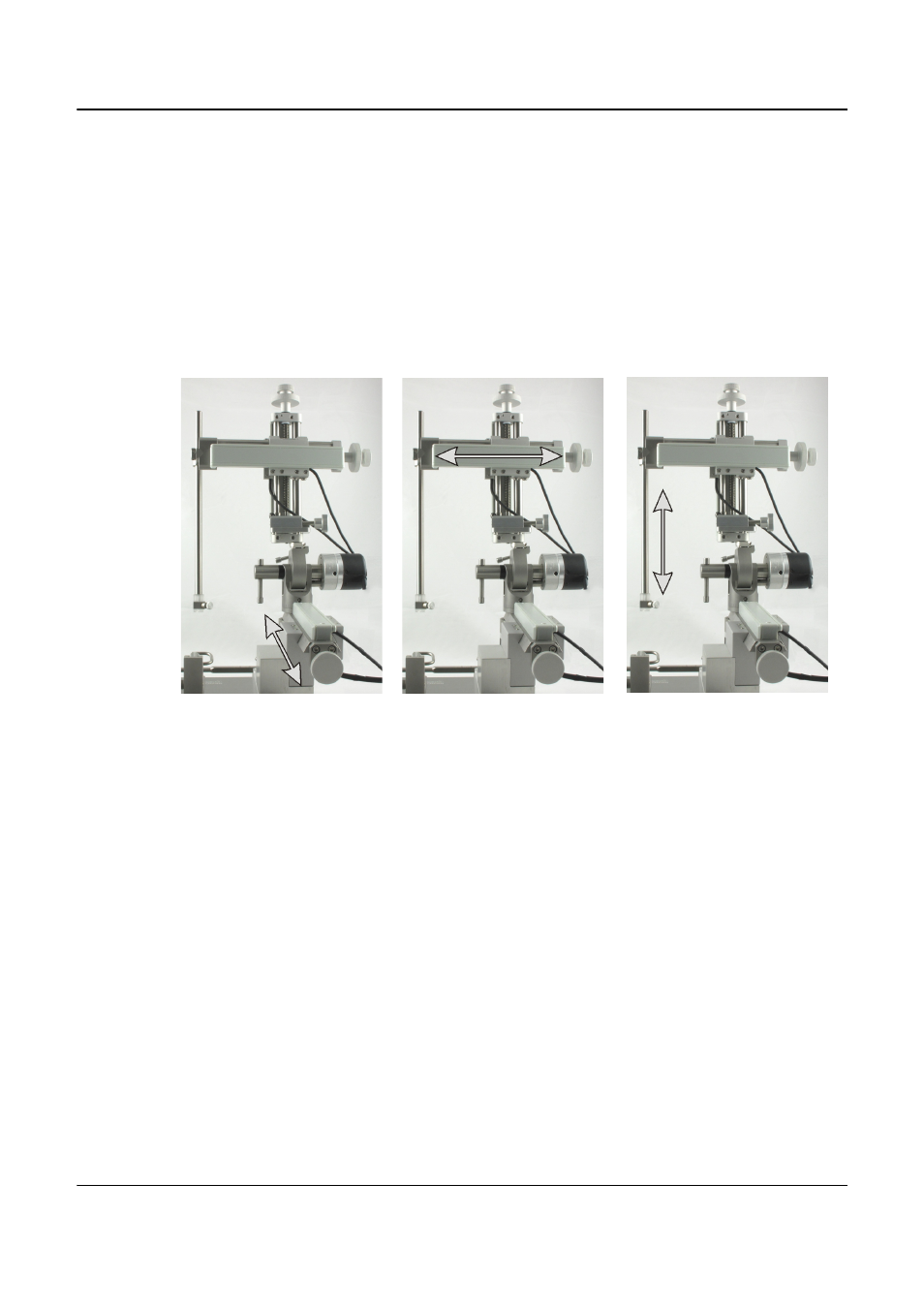

Figure 8. The three linear movements of the manipulator: AP, ML and DV
