4.3 Initial Settings
Before locating the target site, you must do the following on the Angle Two software:

Select the tilt direction

Zero the tilt and rotation angles

Enter any probe offsets

Enter the locations of the reference points bregma and lambda

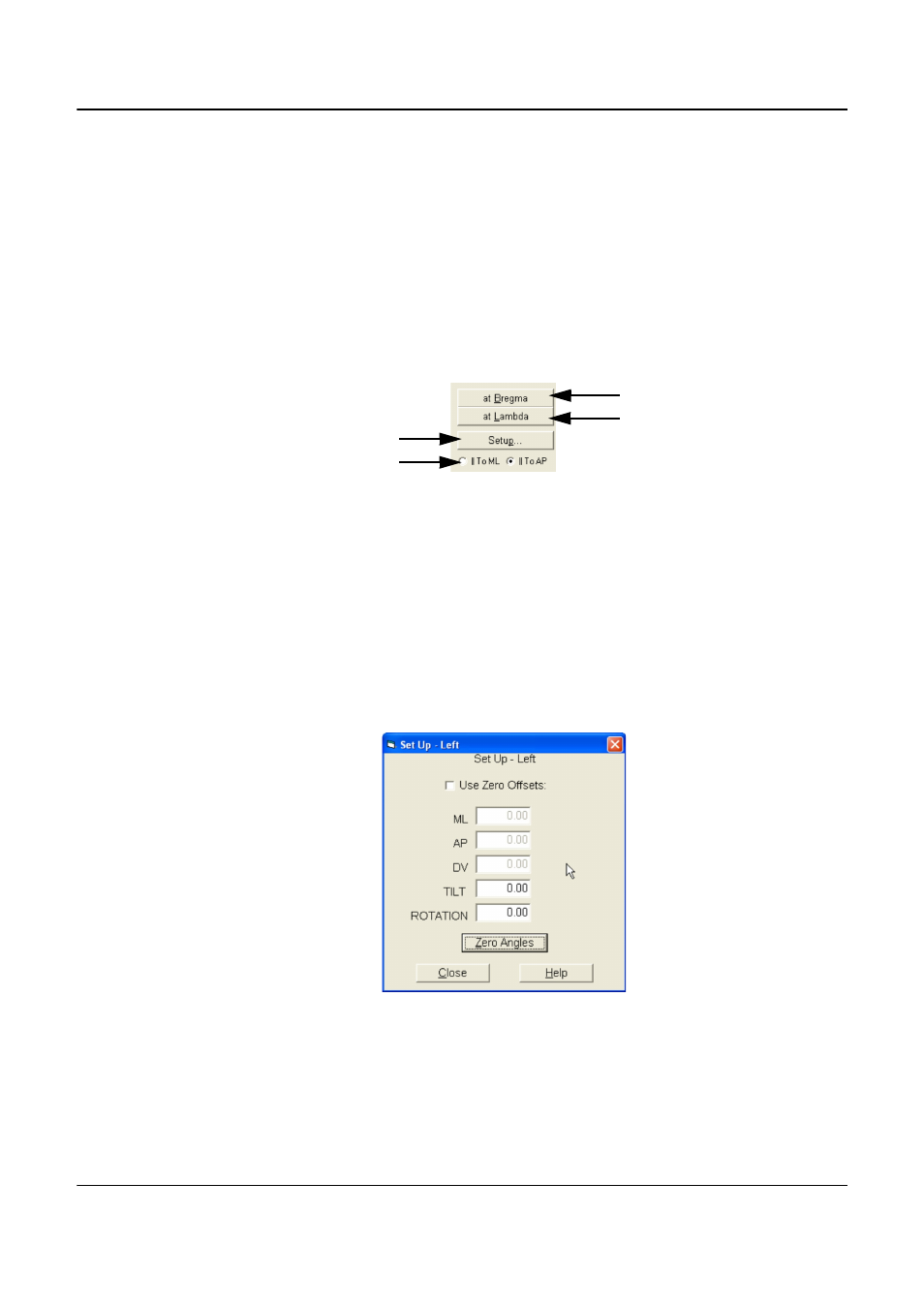

Figure 28. The initial settings buttons
Tilt Direction
After aligning the instrument, click ll To ML or ll To AP to indicate the primary plane of the tilt as
either in the ML or AP direction (see “Tilt” on page 17).
Zero Rotation and Tilt
After aligning the instrument and entering the tilt direction, the software’s tilt and rotation values
must be zeroed. Click Setup and Zero Angles in the Set Up dialog, check both angles read 0.00°.
Figure 29. The set up dialog and Zero Angles button
Bregma button
Lambda button Zero tilt and
rotation and
set offsets
Tilt direction
