2. Safety
Knife guard on the knife holder
Each knife holder is equipped with a tightly
mounted knife guard (8, 9). This makes it possible
to cover completely the cutting edge in every knife
or blade position.
Knife holder N/NZ

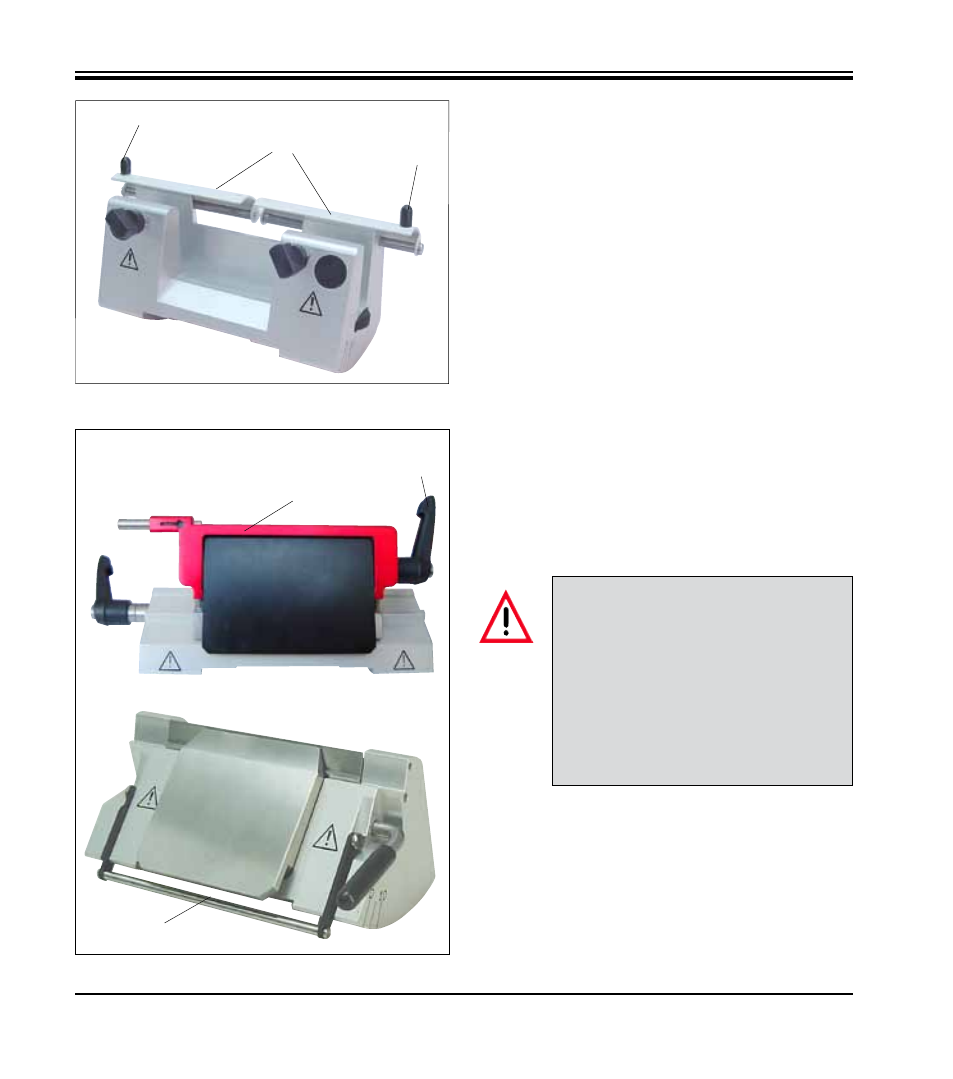

The knife guard (8) of the knife holder N/NZ can be
easily positioned via the two handles (7) ( Fig. 4 ).
To cover the knife edge, push both cover strips
of the knife guard to the center.
Knife holder E/E-TC
The knife guard on knife holder E/E-TC consists
of a red foldaway handle (9). To cover the cutting
edge, fold the knife guard handle (9) upwards as
illustrated in Fig. 5 .
Fig. 4
7
7 8
9
10
11
9
Knife holder E-TC
Knife holder N
Knife holder E
The clamping levers on the knife hold-
er E are not interchangeable.
The two clamping levers (10, 11) must
remain in the position shown at all
times, as otherwise isolated malfunc-
tions of the knife holder can occur.
Clamping lever for the blade (10) at the
right, clamping lever for the lateral
displacement (11) at the left.
Fig. 5
