Wing rest installation – Landoll WFPC22-36 Wing Float Pulverizer User Manual
Page 30
2-16
F-701
ASSEMBLY
Wing Rest Installation
Install the Wing Rest RH or LH to the respective Wing
Frame Mounting Plate located on the Wing below. Fold
the wings so that when folded the Roller on the Cylinder
Clevis Pin floats between the Ramp Roller Guides.

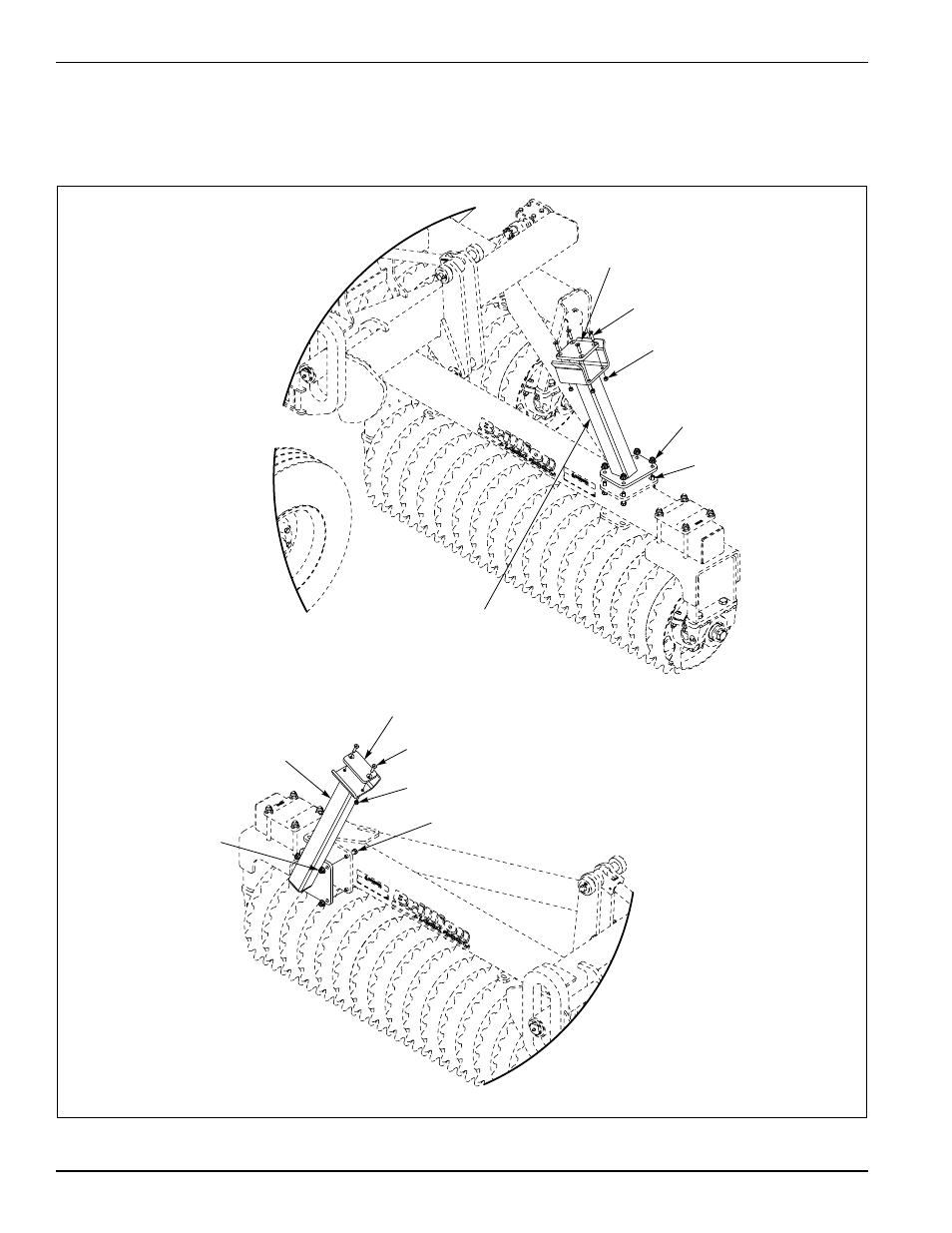

Figure 2-15: Short Wing Rest, WFP22 - 28
Wing Rest RH
Used on WFP22-28
HHCS,1/2-13 x 2
Flange Nut,
Ny-Lok 1/2-13
Nut,Lock 3/8-16
FHCS,3/8-16 x 1-1/2
Wing Rest
Bumper Pad
Wing Rest LH
Used on WFP22-28
HHCS,1/2-13 x 2
Wing Rest
Bumper Pad
FHCS,3/8-16 x 1-1/2
Nut,Lock 3/8-16
Flange Nut,
Ny-Lok 1/2-13
