Page 17
ASSEMBLY
2-3
Transport Linkage
Attach Transport Linkage and Hydraulic Cylinder to
Center Frame and Transport Axle.
NOTE
Linkage must be free to pivot.

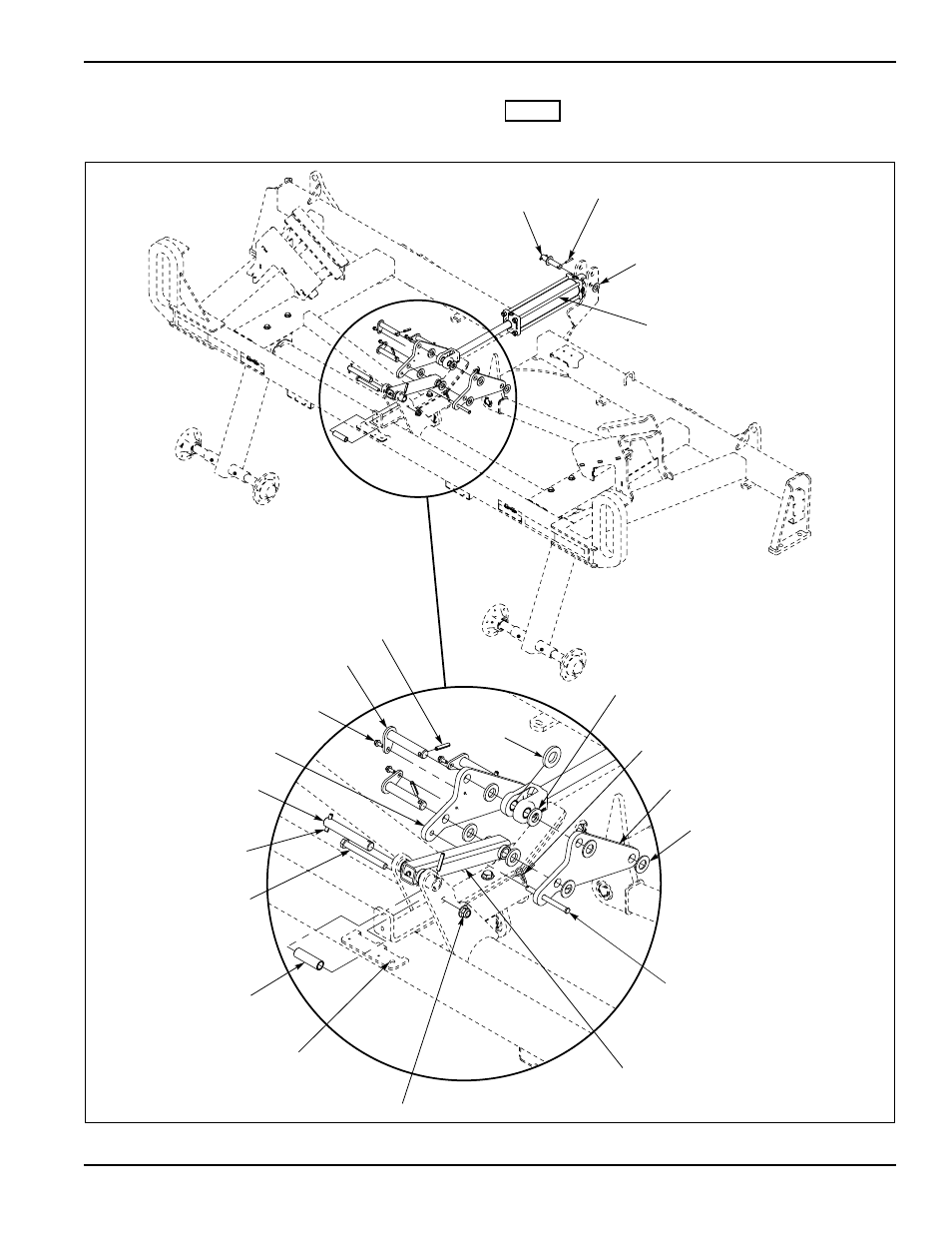

Figure 2-2: Transport Linkage
Hydraulic
Cylinder,4 x 16
Pin,1 x 5-1/2
Flat Washer,1 SAE
Roll Pin,5/16 x 2
Flat Washer,1 x 2 x 1/4
Toggle Link Wld
Hair Pin Cotter,5/32
Clevis Pin,1/2 x 6
Transport Lock, must
remove when lowering
machine
Flange Nut,Ny-Lok 5/8-11
Bushing,
0.824 x 1.05 x 3.5
HHCS,5/8-11 x 6
Roll Pin,3/8 x 2
Pin,1 x 6-3/4
Toggle Link
Toggle Link,W/Tap
FHHCS,
5/16-18 x 11/16
Roll Pin,3/8 x 2
Flat Washer,1 SAE
Pin W/Keeper,1
Transport Lock
Clevis Pin Storage
Spacer
