Additional drawbar assembly – Landoll WFPC22-36 Wing Float Pulverizer User Manual
Page 22
2-8
F-701
ASSEMBLY
Additional Drawbar Assembly
Assemble the Jack, Hose Support, Safety Chain and
Manual Storage Canister onto the Drawbar.

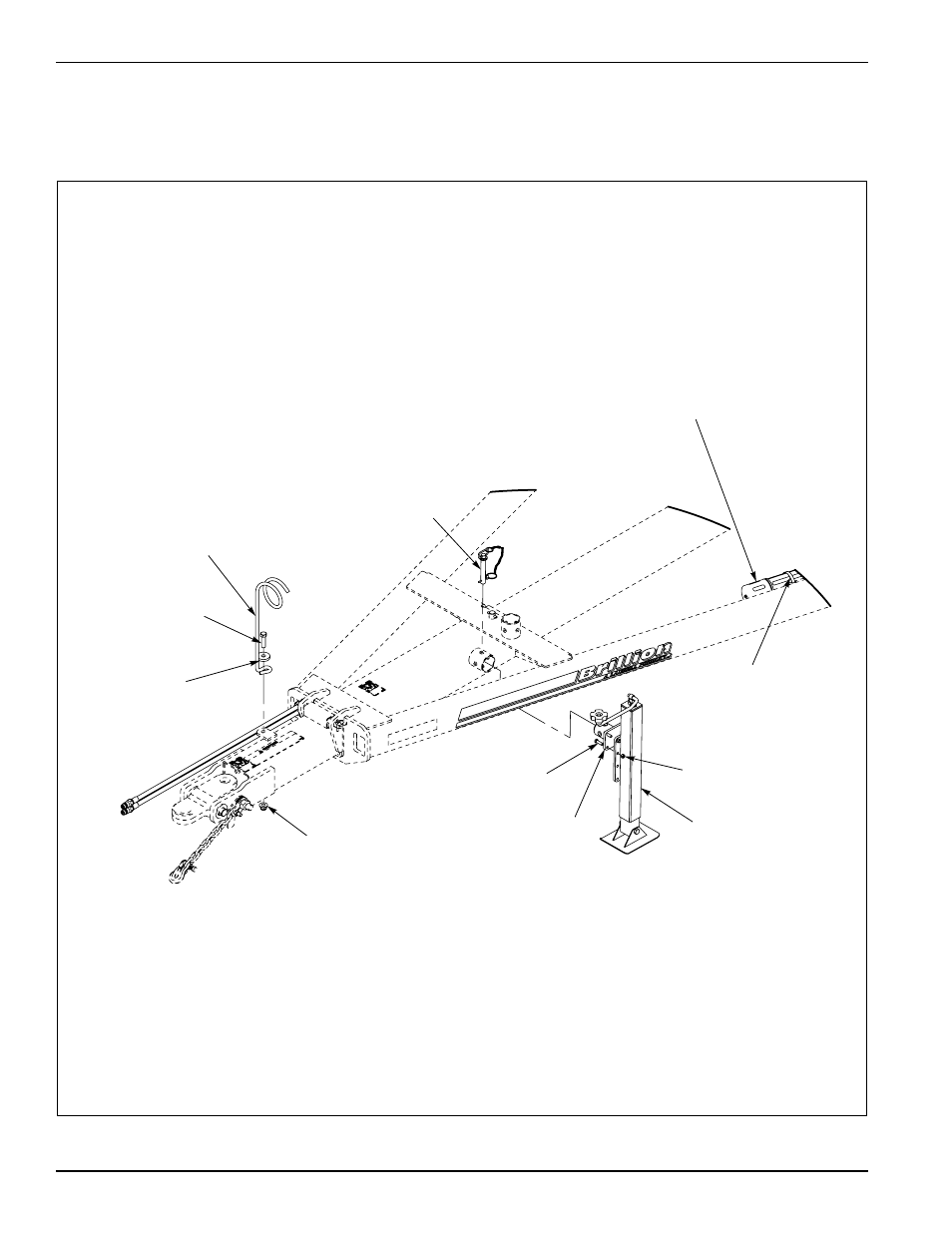

Figure 2-7: Additional Drawbar Assembly
Flange Nut,
Ny-Lok 5/8-11
Jack
Lock Nut,
3/8-16
HHCS,
3/8-16 x 1-1/4
Jack
Mount
Pin W/Chain,3/4
Hose
Support
HHCS,
5/8-11 x 2-1/4
Washer,
5/8 x 2 x 3/8
Manual Storage
Canister
Hose
Clamp
