Hydraulic hose installation – Landoll WFPC22-36 Wing Float Pulverizer User Manual
Page 27
ASSEMBLY
2-13
Hydraulic Hose Installation
Install the Hydraulic Hoses, using the Hydraulic
Schematic as a reference. Secure the hoses in place with
provided hose ties.

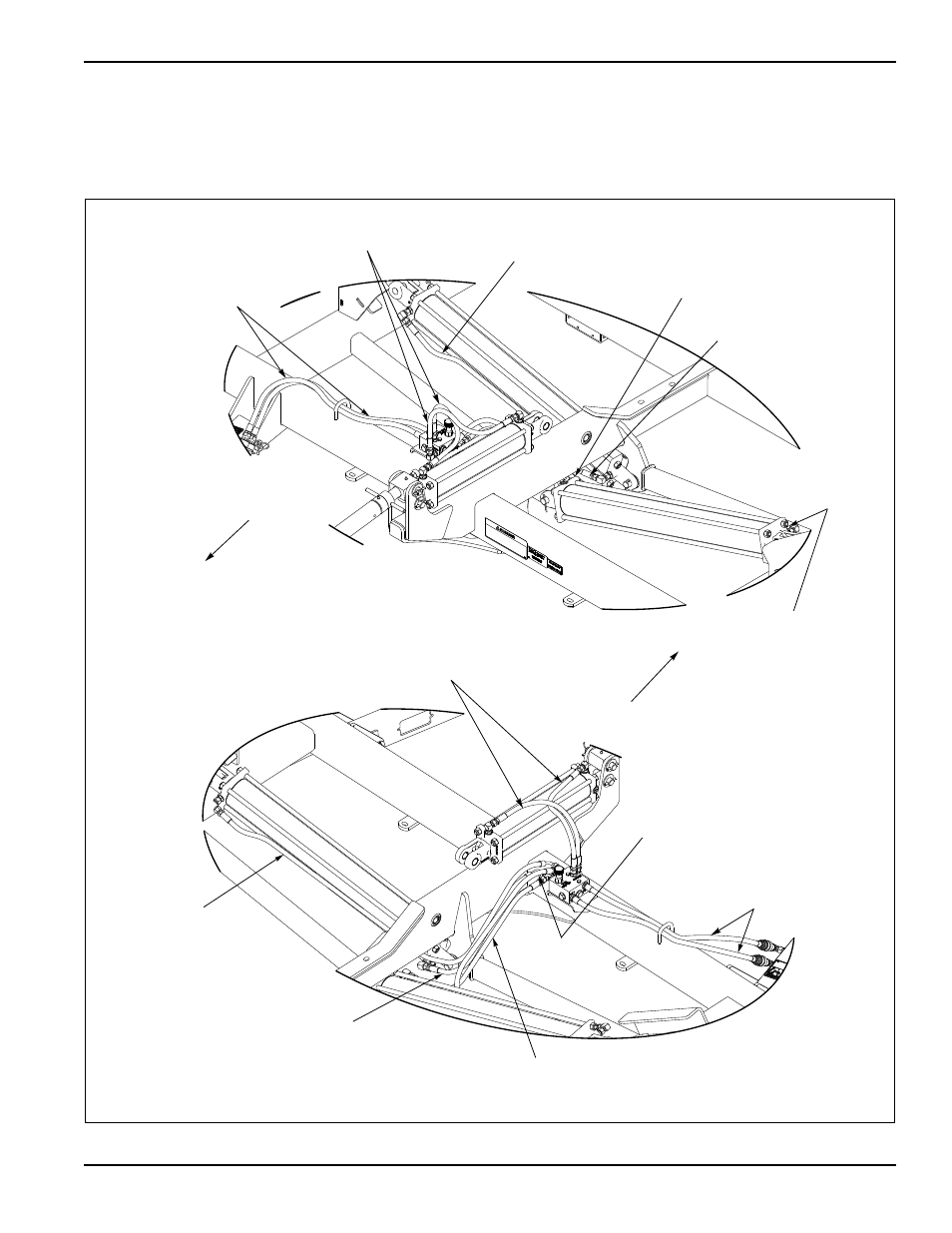

Figure 2-12: Hydraulic Hose Installation
FRONT
FRONT
Hose Asm, 3/8 x 36
P/N 170508
Hose Asm, 3/8 x 24
P/N 147582
Hose Asm, 3/8 x 56
P/N 123547
Hose Asm, 3/8 x 27
P/N 123062
Hose Asm, 3/8 x 30
P/N 71508985
Hose Asm, 3/8 x 70
P/N 175107
Hose Asm, 3/8 x 24
P/N 147582
Hose Asm, 3/8 x 56
P/N 123547
Hose Asm, 3/8 x 36
P/N 170508
Hose Asm, 3/8 x 70
P/N 175107
Hose Asm, 3/8 x 27
P/N 123062
Hose Asm, 3/8 x 30
P/N 71508985
