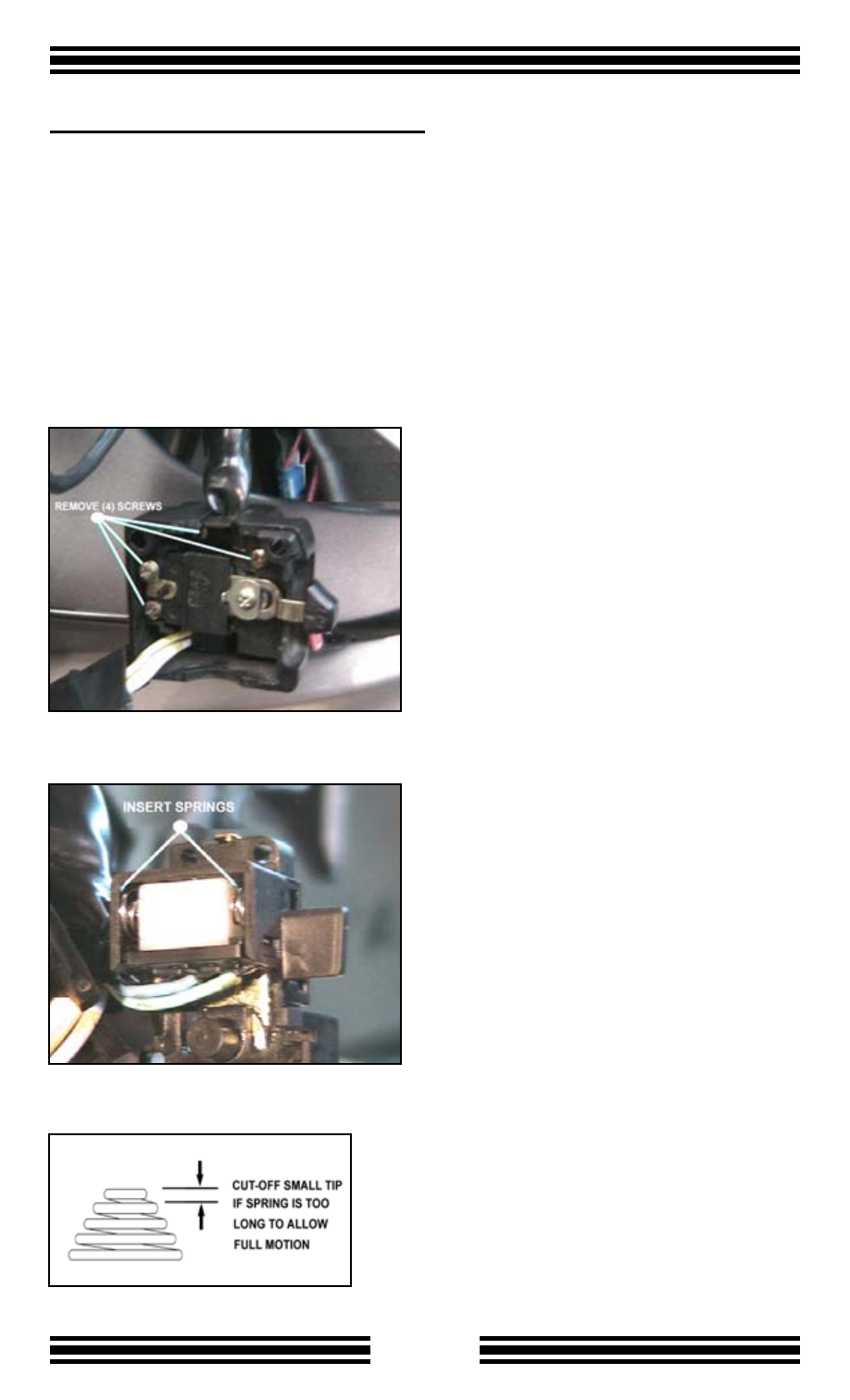

Lever Activated Latched Switch
:
(Plastic Case)
This type of switch is also found in many Japanese models. It typically has
Hi-beam passing button.
„ When moved in either direction, one pole is disconnected while the other
is connected.
„ The lever slides freely to either side and returns to the center but the
electrical switch remains latched. It must be pushed-in to release the latch.
„ The internal switch and the lever
mechanism must be removed from
the housing.
„ As you move the lever from side
to side, note the motion of the white
plastic slider. An empty cavity is
created to allow insertion of the
spiral spring.
„ Using small needle-nose pliers or
tweezers, insert the springs such
that the larger base is towards the
center of the switch, as shown here.
„ After inserting springs, make sure
the switch has full motion and
makes proper contacts for right and
left signals.
„ Verify that the turn signals are
activated in both directions before
reinstalling the housing back on the
handlebar.
„ If the movement of the handlebar
switch feels too hard, you can cut-off one
turn of each of the springs to reduce the
tension.
Or, use the Foam Plugs instead.
