Asd hoses, 36 row 20 – Kinze 3700 Front Folding Planter Rev. 6/14 User Manual
Page 85
Air In
Air In
R.H. Rear of Machine
L.H. Rear of Machine
R.H. Entrainment
L.H. Entrainment
20
19
24
23
22
21
28
27
26
25
32
31
30
29
36
35
34
33
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
18
17
13
13
4
4
2
1
15
8
17
8
15
10
12
11
10
17
3
5
5
12
11
1
2
3
21
19
18
16
14
7
6
20
19
18
16
14

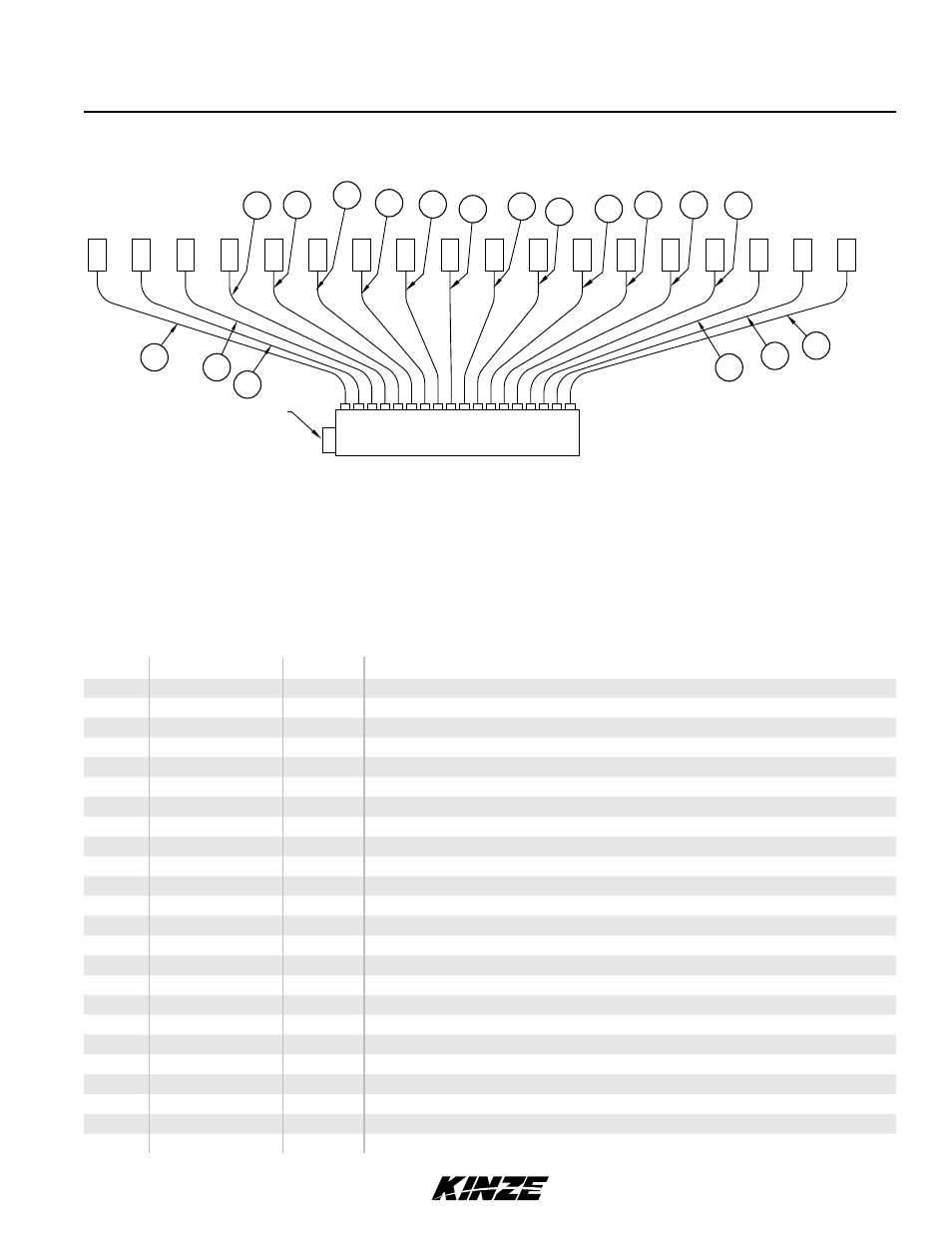

ASD Hoses, 36 Row 20"
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA13800
2
Seed Hose Assembly, 1¼" x 218"
2
GA13801
2
Seed Hose Assembly, 1¼" x 192"
3
GA13802
2
Seed Hose Assembly, 1¼" x 161"
4
GA13803
2
Seed Hose Assembly, 1¼" x 133"
5
GA13804
2
Seed Hose Assembly, 1¼" x 101"
6
GA13824
1
Seed Hose Assembly, 1¼" x 103"
7
GA13825
1
Seed Hose Assembly, 1¼" x 116"
8
GA13818
2
Seed Hose Assembly, 1¼" x 280"
9
GA13819
2
Seed Hose Assembly, 1¼" x 313"
10
GA13820
2
Seed Hose Assembly, 1¼" x 340"
11
GA13821
2
Seed Hose Assembly, 1¼" x 371"
12
GA13822
2
Seed Hose Assembly, 1¼" x 403"
13
GA13823
2
Seed Hose Assembly, 1¼" x 428"
14
GA13826
2
Seed Hose Assembly, 1¼" x 176"
15
GA13827
2
Seed Hose Assembly, 1¼" x 235"
16
GA13828
2
Seed Hose Assembly, 1¼" x 262"
17
GA13829
2
Seed Hose Assembly, 1¼" x 301"
18
GA13830
2
Seed Hose Assembly, 1¼" x 320"
19
GA13831
2
Seed Hose Assembly, 1¼" x 380"
20
GA13832
1
Seed Hose Assembly, 1¼" x 438"
21
GA13833
1
Seed Hose Assembly, 1¼" x 450"
22
GB0425
-
Dissipator Quick Coupler
23
GB0429
-
Seed Entrainer Quick Coupler
24
GR1947
-
Bulk Fill Hose, 1" I.D. x 1¼" O.D. x 100'
Model 3700
M0233-02
Rev. 6/14
P82
TM
