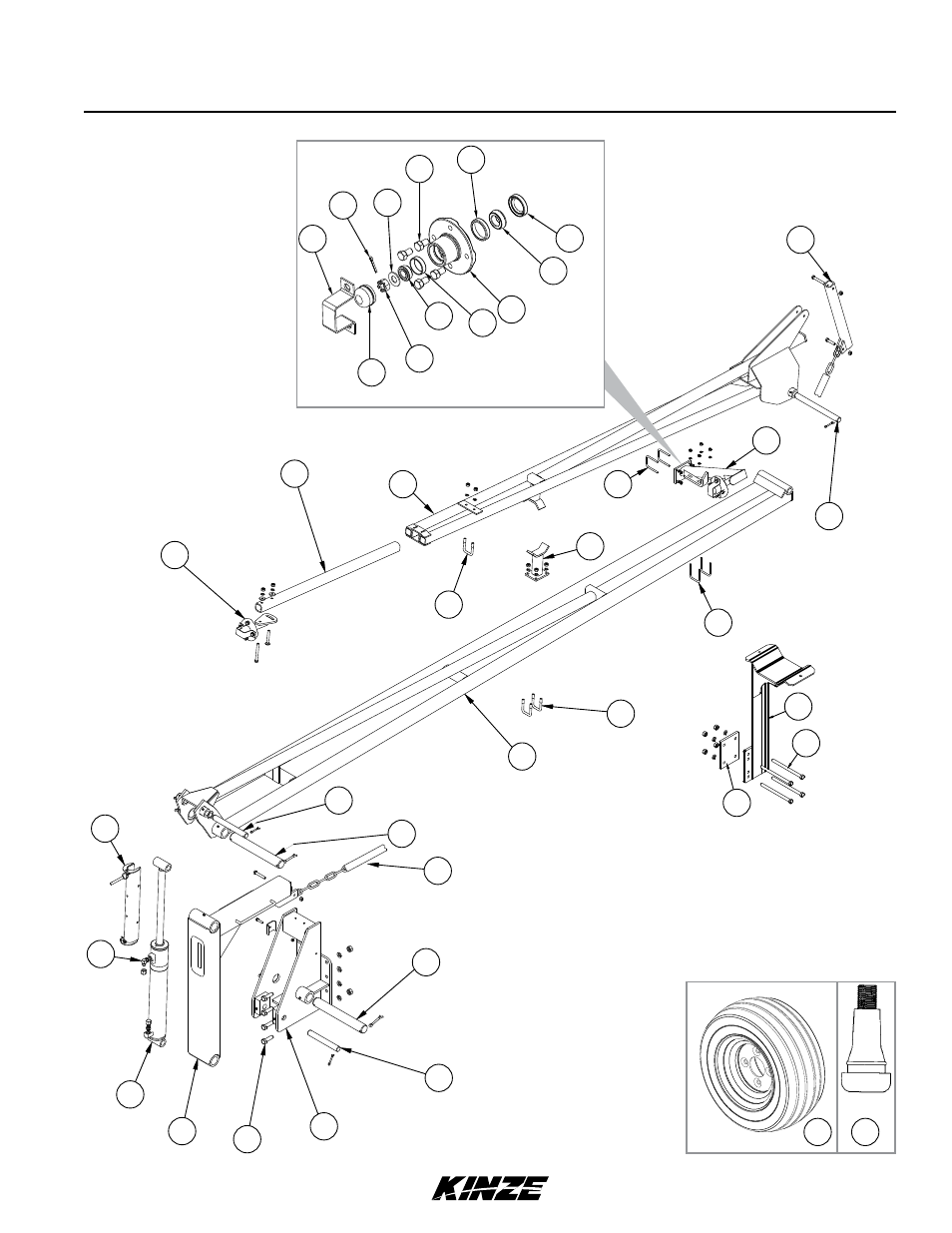

Row Marker Assembly
16
18
19
11
14
9
3
5
8
1
7
8
30
13
10
11
15
17
12
4
6
2
13
L.H. Side Shown
4 WASHER-LOCK 5/8 GRU CS PLT 10230 5
4 NUT-HEX 5/8-11 GR5 CS PLT 10104 4
4 HHCS 5/8-11 X 9 GR5 CS PLT 10152 3
1 PLATE, CLAMP D9622 2
1 WELD, MARKER TIRE SUPPORT A12434 1
QTY DESCRIPTION PART NUMBER ITEM
IP 1177
Jon Hazelett
21
22
20
23 24
(IP1154/IP1177/A0542/A10458)
1 RETAINER D2597 13
1 CAP, 4 BOLT HUB D0840 12
1 PIN, COTTER 5/32 X 1 PLN 10544 11
1 NUT-HEX SLTD 5/8-18 GR2 CS PLN 10725 10
1 WASHER-FLAT 5/8 GRU CS PLN SAE 10724 9
4 BOLT, LUG 1/2-20 X 1-1/4 D3248 8
1 SEAL, BEARING/SPINDLE A0899 7
1 BEARING #LM11749 A0257 6
1 BEARING, INNER #L44643 A0245 5
1 SEAL #CR12411 A0243 4
1 CUP, LM11710 R0151 3
1 CUP, L44610 R0150 2
1 HUB, 4 BOLT B0165 1
1 HUB W/CUPS, 4 BOLT PAINTED A0167
-
QTY DESCRIPTION PART NUMBER ITEM
IP1178
Jon Hazelett
35
25
26
34
33
32
27
31
31
28
31
29
Model 3700 M0233-02
Rev. 9/11 P160
