Kinze 3700 Front Folding Planter Rev. 6/14 - Manual (Page 132)

ITEM PART NO. QTY. DESCRIPTION
1 --- 2 See “Transport Wheel and Hub Assembly” on page P133
2 --- 4 See “Transport Wheel and Hub Assembly” on page P133
3 GA16872
GA16870 1
-
Axle, 24 Row 22" (Non-Stock Item) (Shown)
Axle, 24 Row 20" (Non-Stock Item)
4 GD9509 20 Outer Budd Nut
5 GD12567 20 Inner Budd Nut, ¾ "-16 x 1⅛"-16, Grade 8
6 GA8971
GA8312 2 Cylinder Lockup Bracket W/Pin Assembly
Pin W/Lynch Pin, 5½
"
7 G10440 2 Hex Head Cap Screw, ¾"-10 x 6"
8 G10112 2 Lock Nut, ¾"-10
2
4
5
2
1
3
8
7
1
8
7
6
6
2
2
5
4

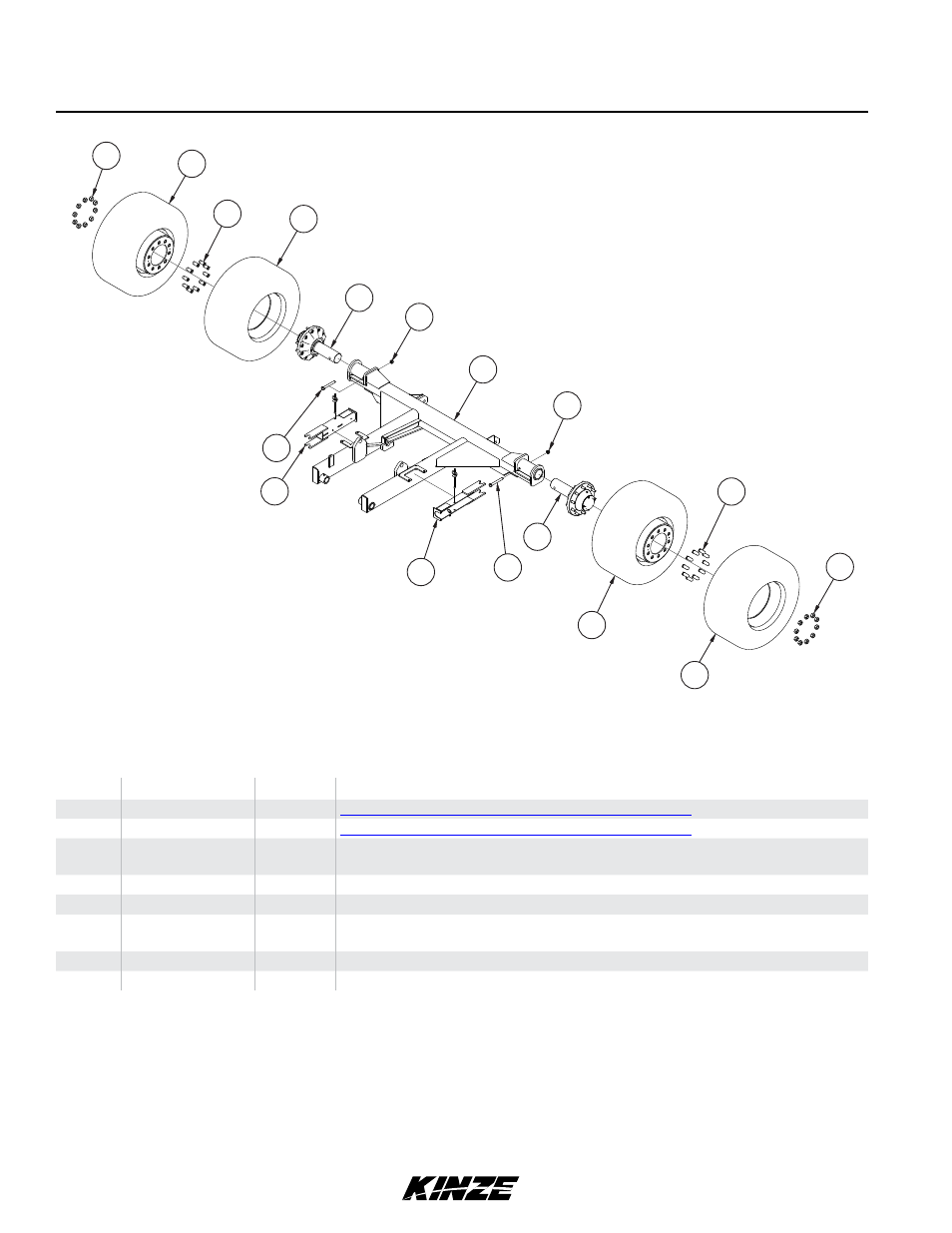

Axle, 24 Row 20" and 24 Row 22"
TM
M0233-02 Model 3700
P129 Rev. 12/12
