Kinze 3700 Front Folding Planter Rev. 6/14 - Manual (Page 106)

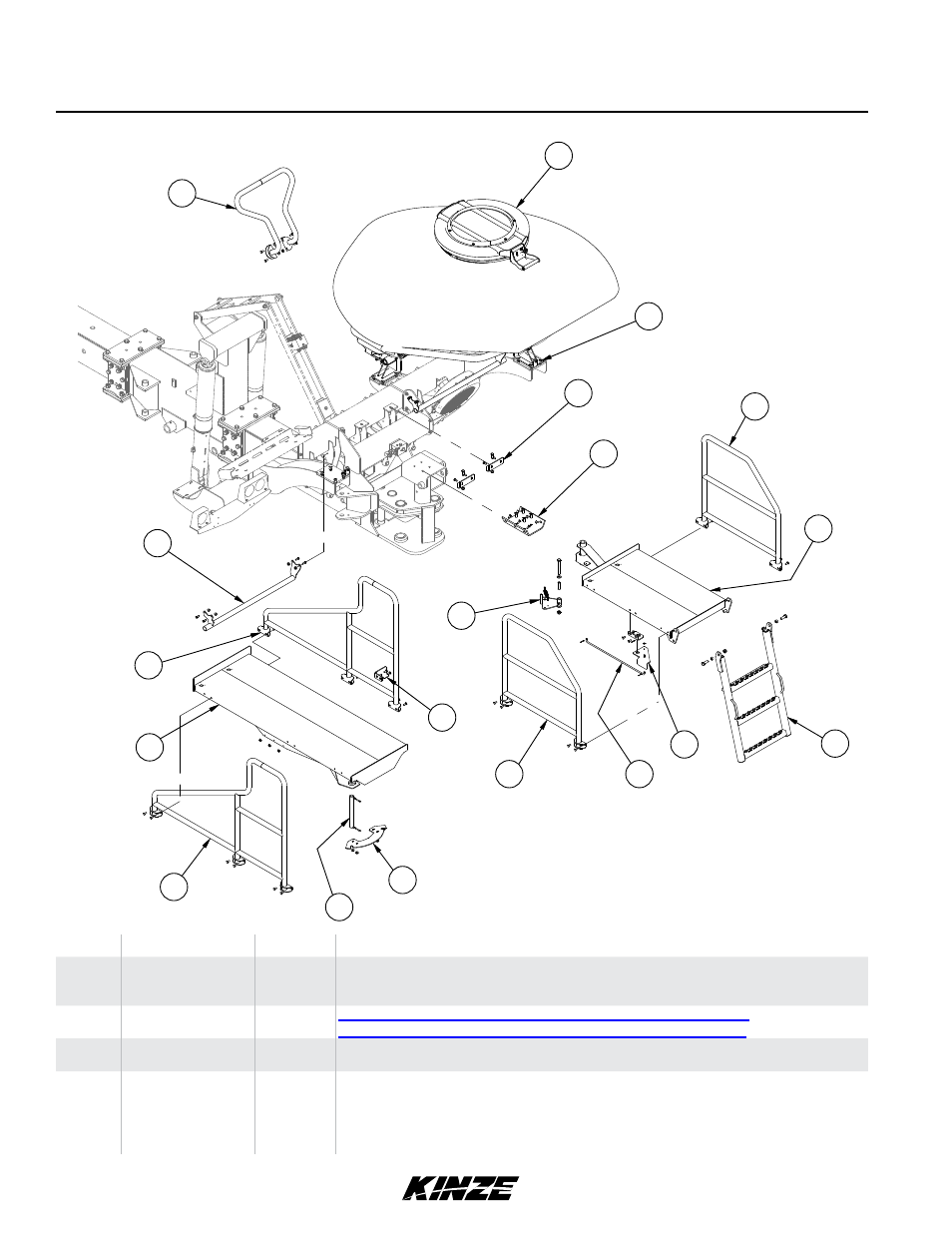

ASD Catwalk, 36 Row 20"
(IP1180)
1
2
3
4
5
18
7
8
19
17
14
12
10
9
6
11
13
15
16
ITEM PART NO. QTY. DESCRIPTION
1 GA14097
G10305
G11091 1
4
4 Front Handrail
Carriage Bolt, ⅜"-16 x 1"
Serrated Flange Nut, ⅜"-16
2 --- - See “ASD Tank Assembly (Prior to 2013 Production)” on page P89
See “ASD Tank Assembly (2013 Production and on)” on page P91
3 G10301
G11091 22
22 Carriage Bolt, ⅜"-16 x 1 ½"
Serrated Flange Nut, ⅜"-16
4 GD19972
G10037
G10071
G10305
G11091 2
2
2
4
4 Front Catwalk Mount Plate
Hex Head Cap Screw, ½"-13 X 1 ¼"
Serrated Flange Nut, ½"-13
Carriage Bolt, ⅜"-16 x 1"
Serrated Flange Nut, ⅜"-16
TM
M0233-02 Model 3700
P103 Rev. 9/11
