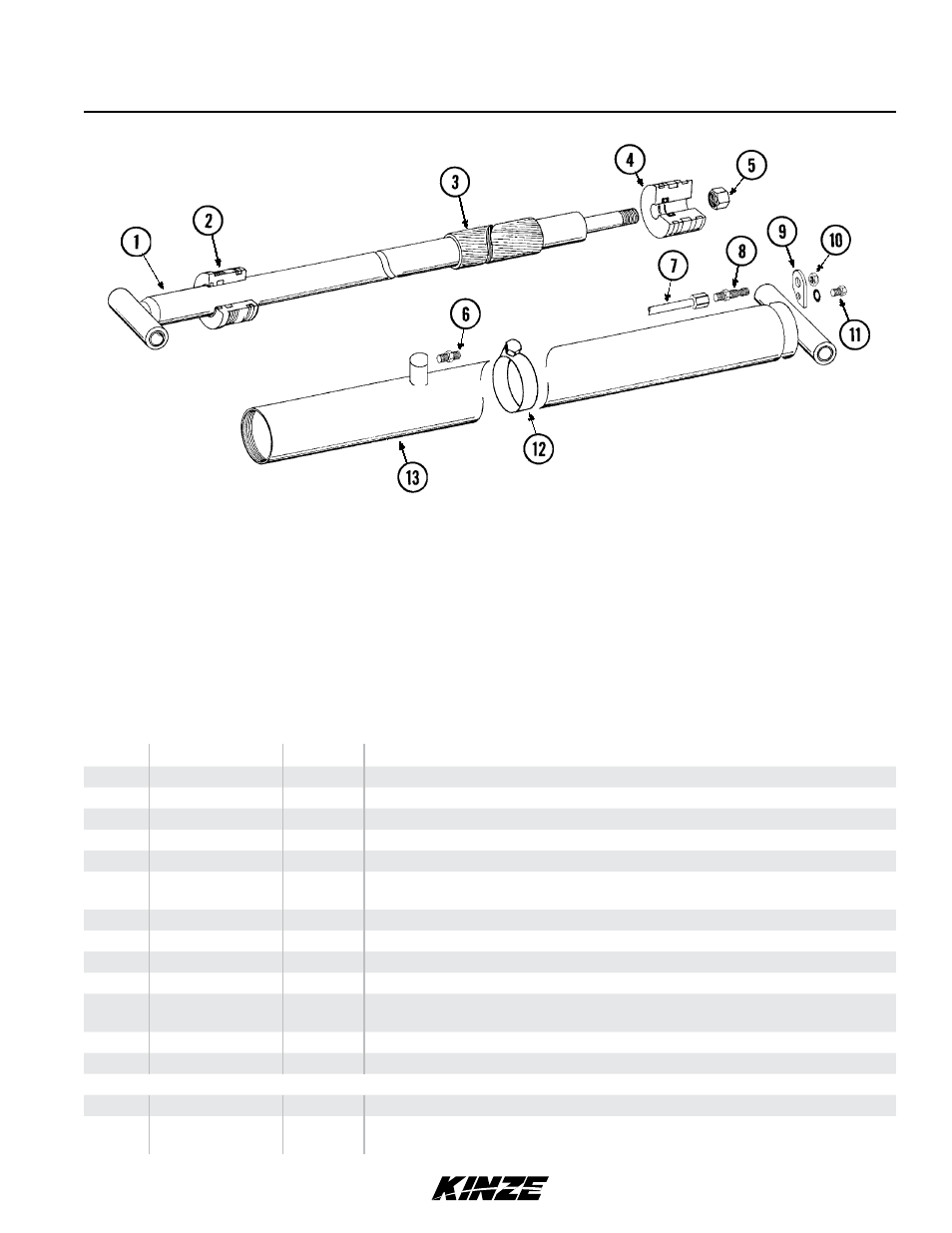

Tongue Cylinder, 24 Row 20" and 24 Row 22"
(CYL18b)
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA9576
1
Rod Assembly
2
GD13448
1
Gland
3
GD13453
1
Spacer
4
GD13449
1
Piston
5
GD27237
1
Nylon Lock Nut, 1¼"-12, Grade 8
6
G6400-08-04
GR1465
1
-
Connector W/O-Ring, ¾"-16 Male JIC To 7/16"-20 O-Ring
O-Ring
7
GA10145
1
Steel Hydraulic Line, 14515/16"
8
G2700-08
1
Bulkhead Tube Union, ¾"-16 Male JIC
9
GD13643
1
Bracket
10
G306-08
1
Lock Nut, ¾"-16
11
G10328
G10229
1
1
Hex Head Cap Screw, ⅜"-16 x ⅝"
Lock Washer, ⅜"
12
G11089
1
Hose Clamp
13
GA9578
1
Barrel
A
GA9579
-
Cylinder Complete, 4" x 132½" (Part Number Stamped On Barrel)
B
GR1599
-
Seal Kit, Includes: (2) O-Rings, (1) BU Ring, (3) Wear Rings, (1) Piston
Seal, (1) U-Cup, (1) Wiper, (1) Expander
Model 3700
M0233-02
Rev. 6/14
P170
