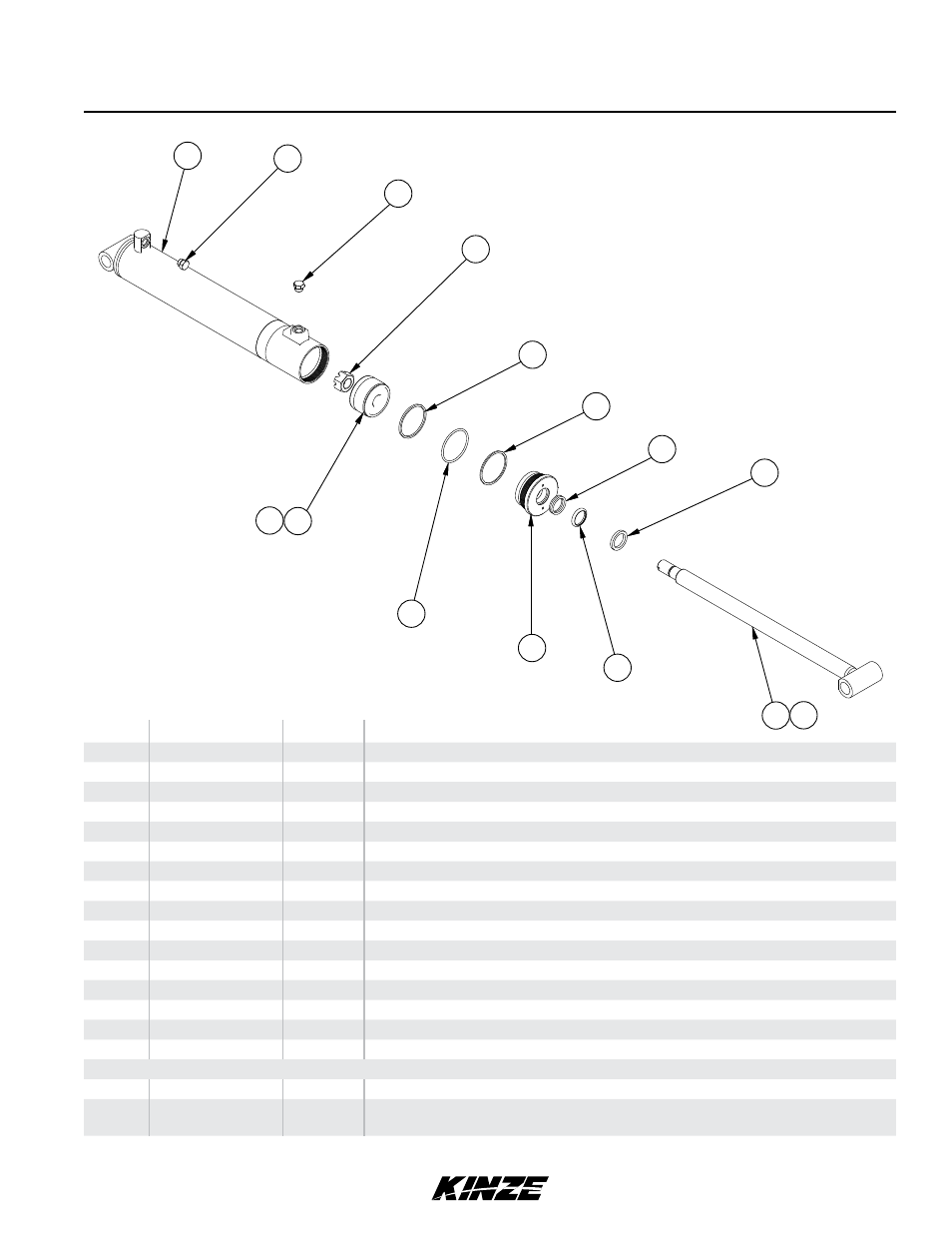

Row Marker (Cushion) Cylinder
(IP1167)
ITEM PART NO. QTY. DESCRIPTION
1 A8950 1 Barrel (Non-Stock Item)
2 GD12550 1 Piston, 3½"
3 *D12088 1 Piston Ring
4 GD12548 1 Gland
5 GD12231 1 O-Ring, No. 338
6 *D12252 1 U-Cup
7 *D12206 1 Wiper
8 GD12103 1 Ring
9 *D12232 1 Back-up Ring
10 GA8948 1 Rod Assembly
11 GD27236 1 Nylon Lock Nut, 1⅛"-12, Grade 8
12 --- - ---
13 G6408-08 2 Plug W/O-Ring, ¾"-16 O-Ring
GR1037 - O-Ring
14 *D12245 1 O-Ring, #122
15 *D12280 1 T-Seal
A GA8951 - Cylinder Complete, 3½" x 20" (Part Number Stamped On Barrel)
B GR1532 - Seal Kit, Includes: (2) O-Rings, (1) U-Cup, (1) Wiper, (1) T-Seal, (1) BU Ring, (1)
Cast Iron Ring
*Item is part of seal kit, item can not be purchased individually.
1 13
13
11
2 15
3
5
9
4
6
7
8
10 14
Model 3700 M0233-02
Rev. 6/14 P168
