Kinze 3700 Front Folding Planter Rev. 6/14 - Manual (Page 156)

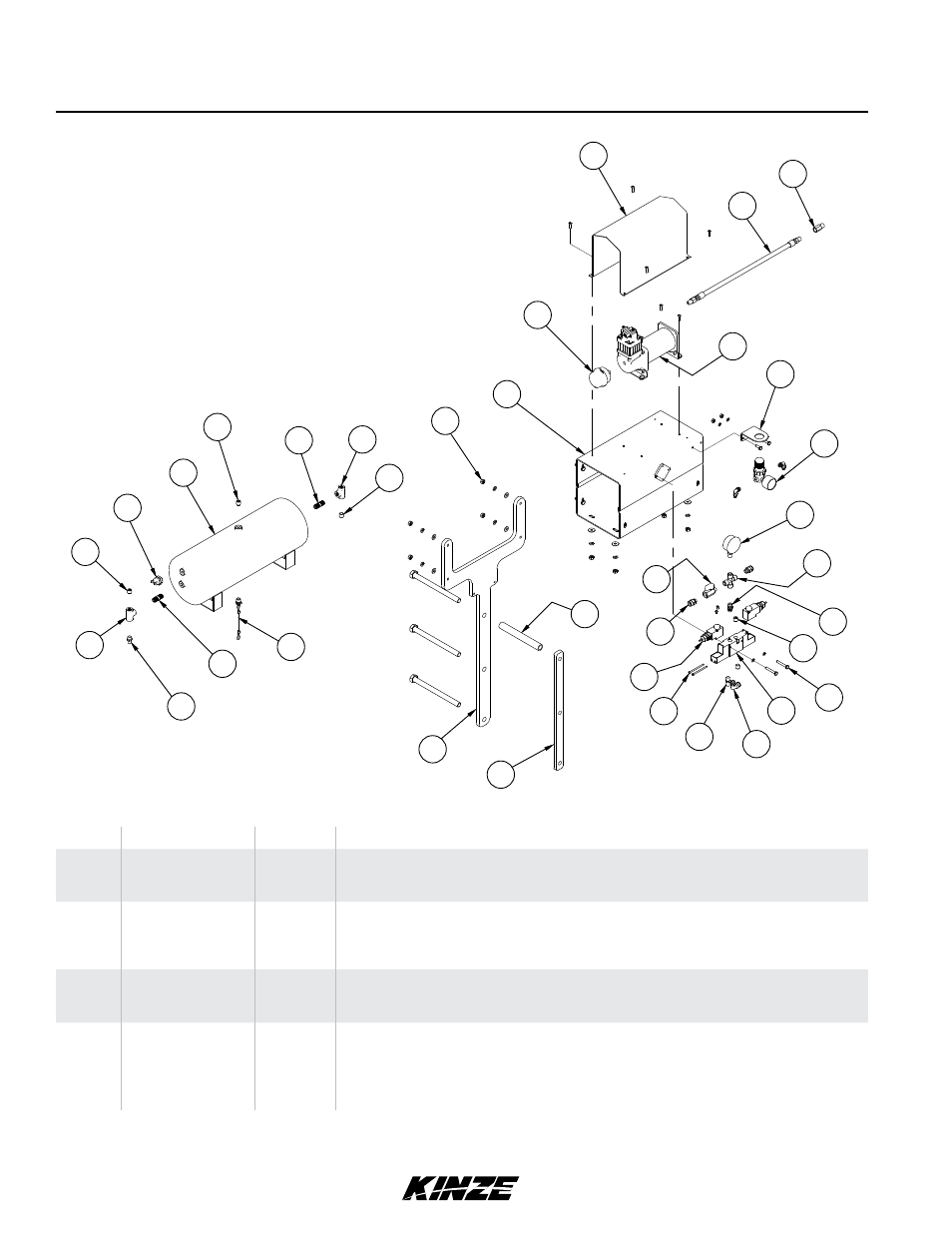

Air Compressor and Dual Solenoid Assembly
ITEM PART NO. QTY. DESCRIPTION
1 GD18112
G11066
G10992 1
4
4 Cover
Phillips Pan Head Machine Screw, No. 10-24 x ¾", Stainless Steel
Serrated Flange Nut, No. 10-24
2 GA14127
GR1943
GA12404
GR1809
1
-
-
-
Filter Assembly (2010 production and on)
Filter (2010 production and on)
Filter Assembly (prior to 2010 production)
Filter (prior to 2010 production)
3 GA12102
G11066
G10992 1
4
4 Air Compressor
Phillips Pan Head Machine Screw, No. 10-24 x ¾", Stainless Steel
Serrated Flange Nut, No. 10-24
4 GA12358
G10019
G10232
G11386
G10106 1
4
4
4
4 Mount
Hex Head Cap Screw, 5∕16"-18 x 1"
Lock Washer, 5∕16"
Flat Washer, 5∕16" SAE
Hex Nut, 5∕16"-18
(IP1281)
1
2
3
6
5
7
8
11
12
13
9
12
13
10
11
12
14
16
17
24
18
19
20
30
31
22
25 28
27
26
23
29
21
15
4
