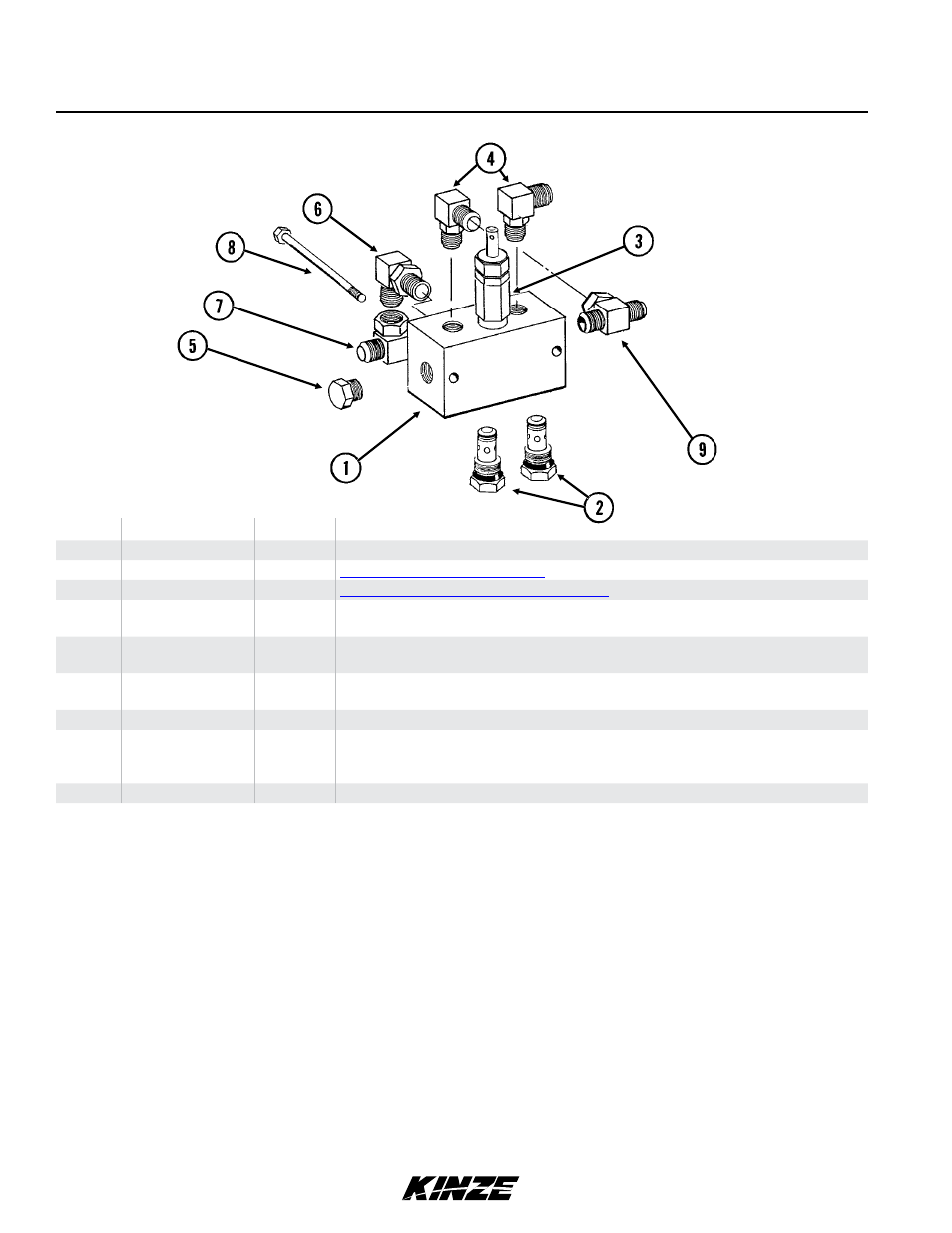

Kinze 3700 Front Folding Planter Rev. 6/14 - Manual (Page 180)

ITEM PART NO. QTY. DESCRIPTION
1 GD9535 1 Block
2 --- - See “Check Valve” on page P183
3 --- - See “Pressure Relief Valves” on page P183
4 G6801-08
GR1037 2
-
Elbow W/O-Ring, 90°, ¾"-16 Male JIC To O-Ring
O-Ring
5 G6408-06
GR1045 1
-
Plug W/O-Ring, 9∕16"-18 O-Ring
O-Ring
6 G6801-10-08
GR1037 1
-
Elbow W/O-Ring, 90°, ⅞"-14 Male JIC To ¾"-16 O-Ring
O-Ring
7 G6600-10 1 Swivel Tee, ⅞"-14 JIC
8 G10746
G10227
G10103 2
2
2 Hex Head Cap Screw, ¼"-20 x 2¾"
Lock Washer, ¼"
Hex Nut, ¼"-20
9 G6600-08 1 Swivel Tee, ¾"-16 JIC
Valve Block on L.H. Wing
P
V12
V13
C4
C3
V11
C1
VVB030(FF22c)
TM
M0233-02 Model 3700
P177 Rev. 9/11
