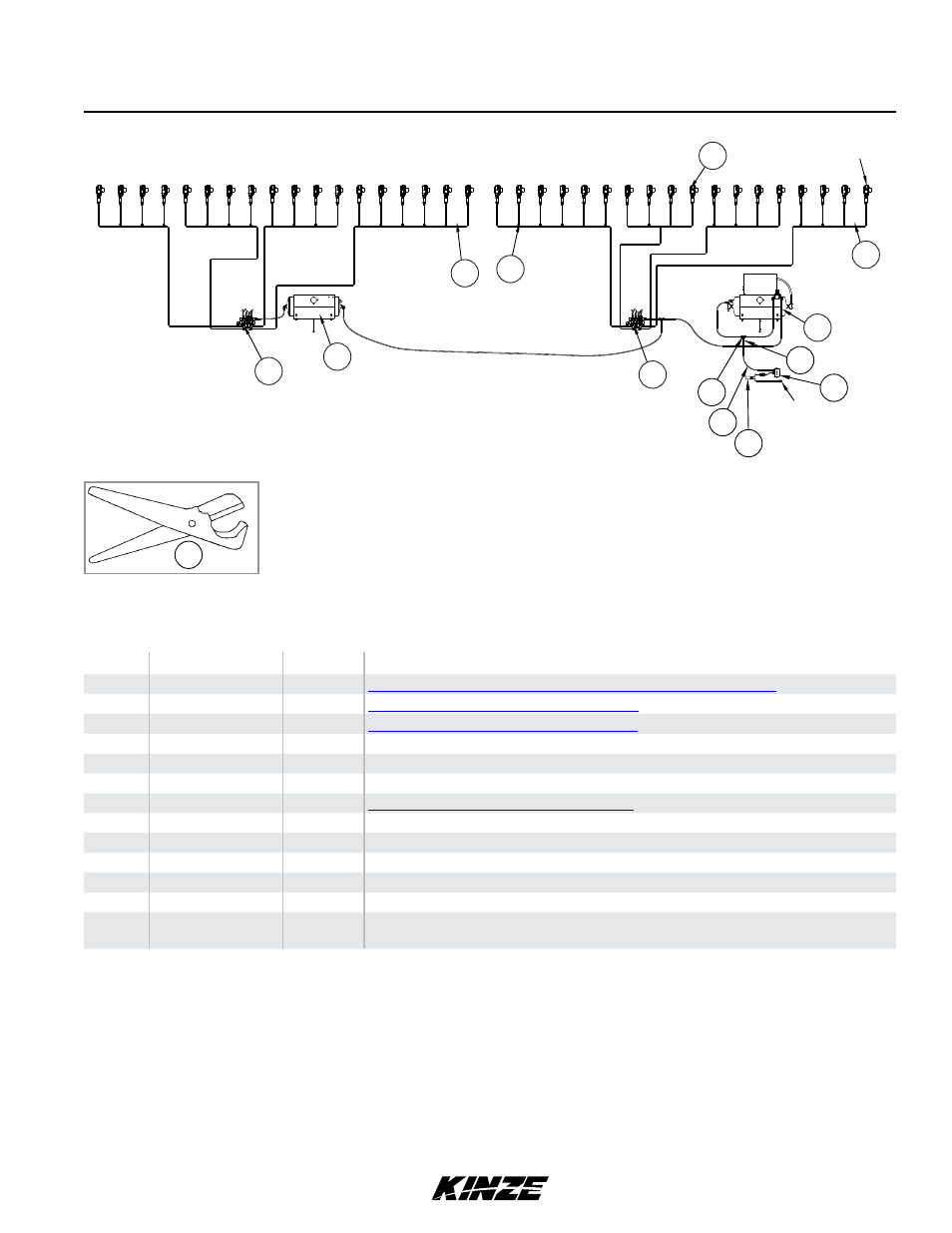

Airline Fittings and Hoses, 36 Row 20"
ITEM PART NO. QTY. DESCRIPTION
1 --- 1 See “Air Compressor and Dual Solenoid Assembly” on page P153
2 --- 1 See “Accumulator Assembly” on page P155
3 --- 2 See “Clutch Valve Assembly” on page P184
4 GD17151-01 4 Nylon Tubing, ¼" O.D. x 52'
5 GD17151-01 - Nylon Tubing, ¼" O.D. x 52'
6 GD18015 29 Tee, ¼" Press On (Air Clutch)
7 --- - See “Air Clutch, Pull Row Unit” on page P5
8 GD18010 - Tee, ⅜" Tube Union
9 GD17151-06 - Nylon Tubing, ¼" O.D. x 1½'
10 GD18796 - Reducer, ⅜" To ¼"
11 GA14846 - High Pressure Sensor (0-120 PSI)
12 GA12812 - Hall Effect Adapter
13 GA13169
GR1843 1
-
Tube Cutter W/Blade
Blade
(IP1176)
13
A B C
A
B
C B A C
H ig h P re ssur
e S en so r ( 0-1 20 p .s.i .) P/ N : A 14 846
Row One
To Main
Planter Harness
3 3
2
1
5
6
4
7
8
9
12
10
11
Model 3700 M0233-02
Rev. 9/11 P150
