Kinze 3700 Front Folding Planter Rev. 6/14 - Manual (Page 141)

ITEM PART NO. QTY.
(Per Assy.)
DESCRIPTION
1 GD13409 - Tire, 255-70R 22.5" W/O Center Rib, Tubeless (Specify Brand*)
2 GA9619 - Rim, 5.5" x 22.5"
3 GA4376
GD11490
GD11458 1
-
-
Spindle W/Round External Retaining Ring, 10"
Round External Retaining Ring
Spindle
(Sub GA4376)
4 GA2148
GR0434 1
-
Hub W/Cups, 6 Bolt
Cup
5 GA0895 2 Bearing
6 G11081 2 Hex Jam Nut, 1½"-12, Grade 2
7 --- - See “Wheel Module Assembly” on page P135
8 G10026
G10231 2
2 Hex Head Cap Screw, ¾"-10 x 2"
Lock Washer, ¾"
9 GR0270 6 Lug Bolt, 9∕16"-18
10 GA7434 - Valve Stem
A GA9620 - Tire And Rim Assembly W/O Center Rib (Items 1, 2 And 10) (Specify Brand*)
B GA4377 - Hub And Spindle Assembly (Items 3-6)
*Specific brand requests will be supplied only as available from current Kinze Repair Parts stock. If a specific brand
requested is not in stock, the brand available will be supplied.

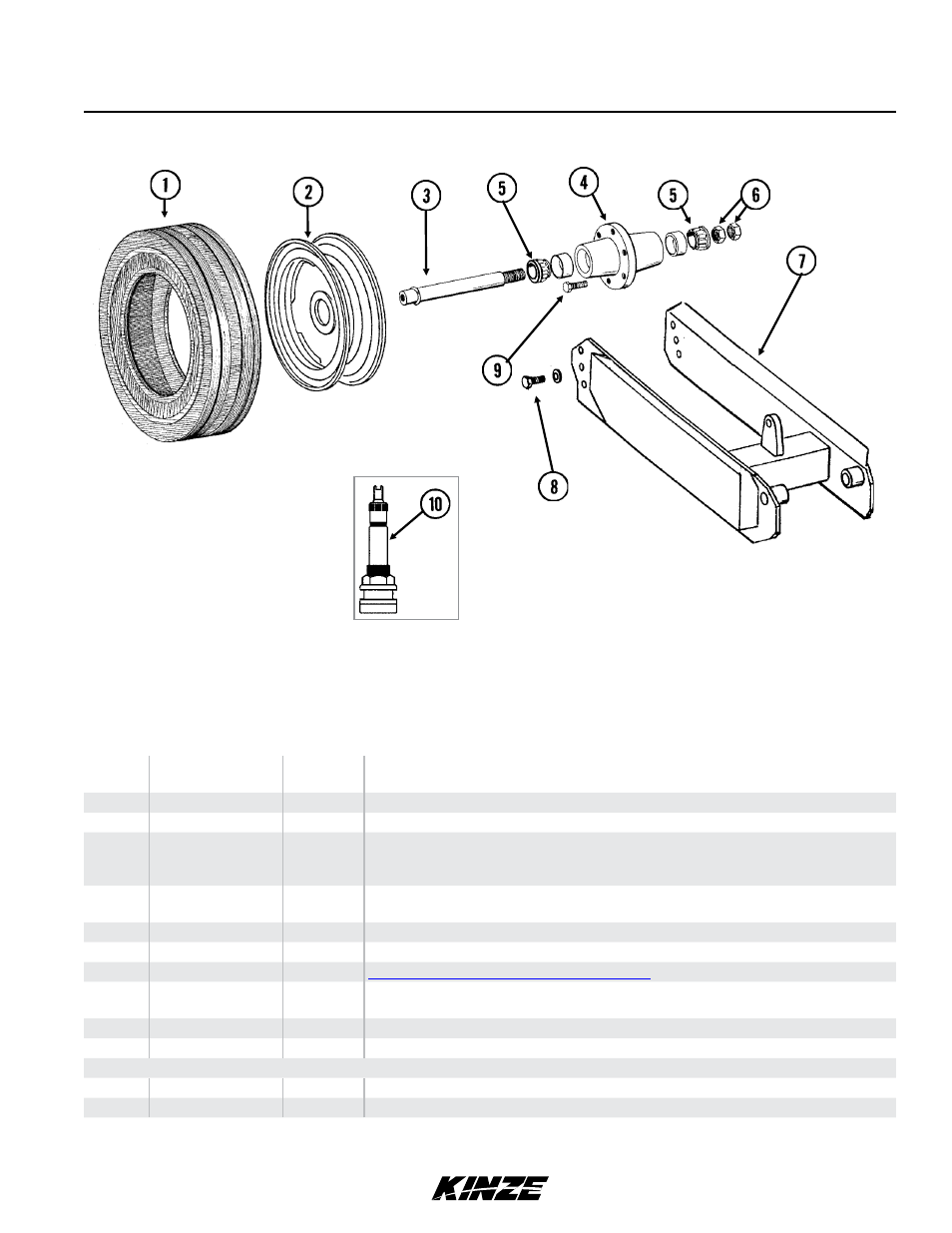

Ground Drive Tire Assembly
PFA056/PTD057(FF13e/A7434)
Model 3700 M0233-02
