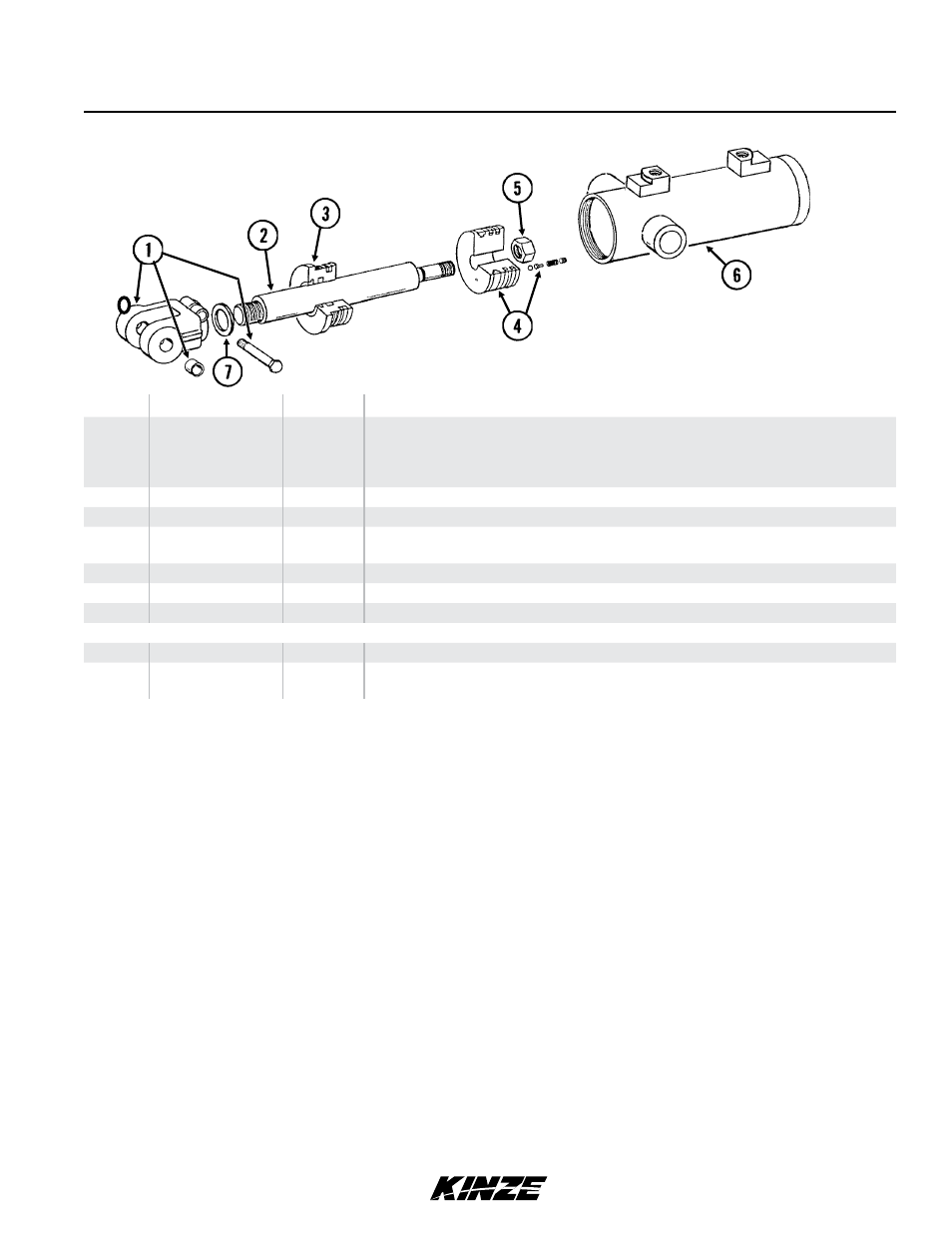

Interplant Lift Cylinder
(CYL33c)
ITEM PART NO. QTY. DESCRIPTION
1 GA8130
GR1401
G10939
G10101 1
2
1
1 Clevis W/Bushings, Hex Head Cap Screw and Hex Nut
Bushing
Hex Head Cap Screw, ⅜"-16 x 2¼"
Hex Nut, ⅜"-16
2 GD12513 1 Rod
3 GD11995 1 Gland
4 GA8924
GR1169 1
-
Piston W/Rephasing Valve
Rephasing Valve Replacement Kit (Includes: Set Screw, Guide, 2 Springs and Ball)
5 GD27235 1 Nylon Lock Nut, 1"-14, Grade 8
6 A8923 1 Barrel (Non-Stock Item)
7 G10957 4 Steel Shim
A GA8897 - Cylinder Complete, 4¼" x 4" (Part Number Stamped On Barrel)
B GR1523 - Seal Kit, Includes: (1) Wiper, (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Seal, (1)
Expander, (2) Cast Iron Ring
